Kinetis K70 120 MHz Tower System Module

TWR-K70F120M アクティブ

画像にカーソルを合わせると拡大表示されます。

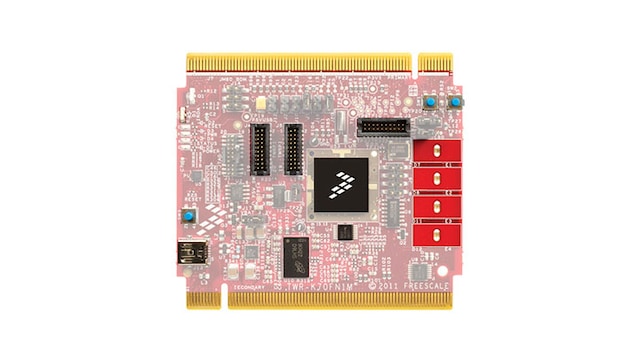

The TWR-K70F120M is a development board for the Kinetis® K61 and K70 families 32-bit Arm® Cortex®-M4 MCUs.

The TWR-K70F120M operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

対応製品

プロセッサ＆マイクロコントローラ

K6xイーサネット

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

K7xグラフィックLCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • MK70FN1M0VMJ12: K70FN1M in a 256 MAPBGA with 120 MHz operation

Memory

  • 1 Gbit of DDR2 SDRAM memory
  • 2 Gbit of SLC NAND flash memory
  • Micro-SD Card slot

Connectivity

  • Touch Tower® Plug-in Socket
  • General-purpose Tower Plug-in (TWRPI) socket

Debug

  • On-board JTAG debug circuit (OSJTAG) with virtual serial port

Sensors

  • 3-axis accelerometer (MMA8451Q)

Components

  • Potentiometer

購入オプション

TWR-K70F120M-Image

クリックして展開

  • TWR-K70F120M
    アクティブ

  • Tower System Development Board for Kinetis K70 MCUs.

    • Part Number TWR-K70F120M contains:
      • TWR-K70F120M board with a MK70FN1M0VMJ12 32-bit MCU
      • DVD with software installers and documentation
      • Quick Start Guide document
      • USB Cable
    • Part Number TWR-K70F120M-KIT also contains:
      • TWR-ELEV – Tower System Elevator Modules
      • TWR-SER – Tower System Serial Module
  • $208.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
TWR-K70F120M-KIT-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
