Getting Started with the S32K3X4EVB-Q172 Evaluation Board

最終更新日時： 2021-10-06 10:29:00サポート S32K3x4-Q172 General-Purpose Development Board

このドキュメントの内容

  • 1

    Out of the Box

  • 2

    Get Software

  • 3

    Plug It In

  • 4

    Build

お客様の S32K3x4-Q172 General-Purpose Development Board

このドキュメントの内容

1. Out of the Box

1.1 Get to Know the S32K344EVB-Q172 Evaluation Board

Note: The +12 V power supply and micro USB cable are not part of the package. The +12 V connector is a center-positive barrel type with outer 5.5 mm and inner 2.1 mm diameter.

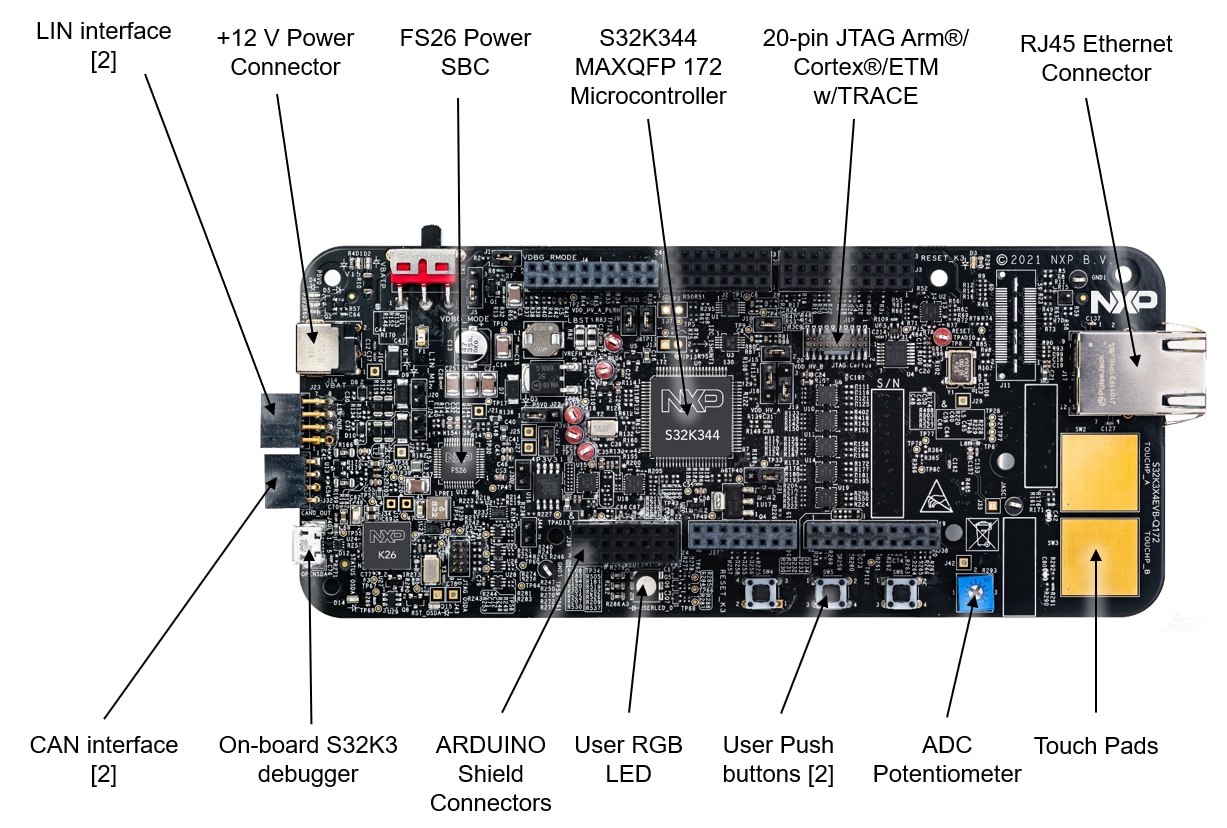

S32K3X4EVB-Q172 Evaluation board - Hero Specs

S32K3X4EVB-Q172 Evaluation board - Hero Specs

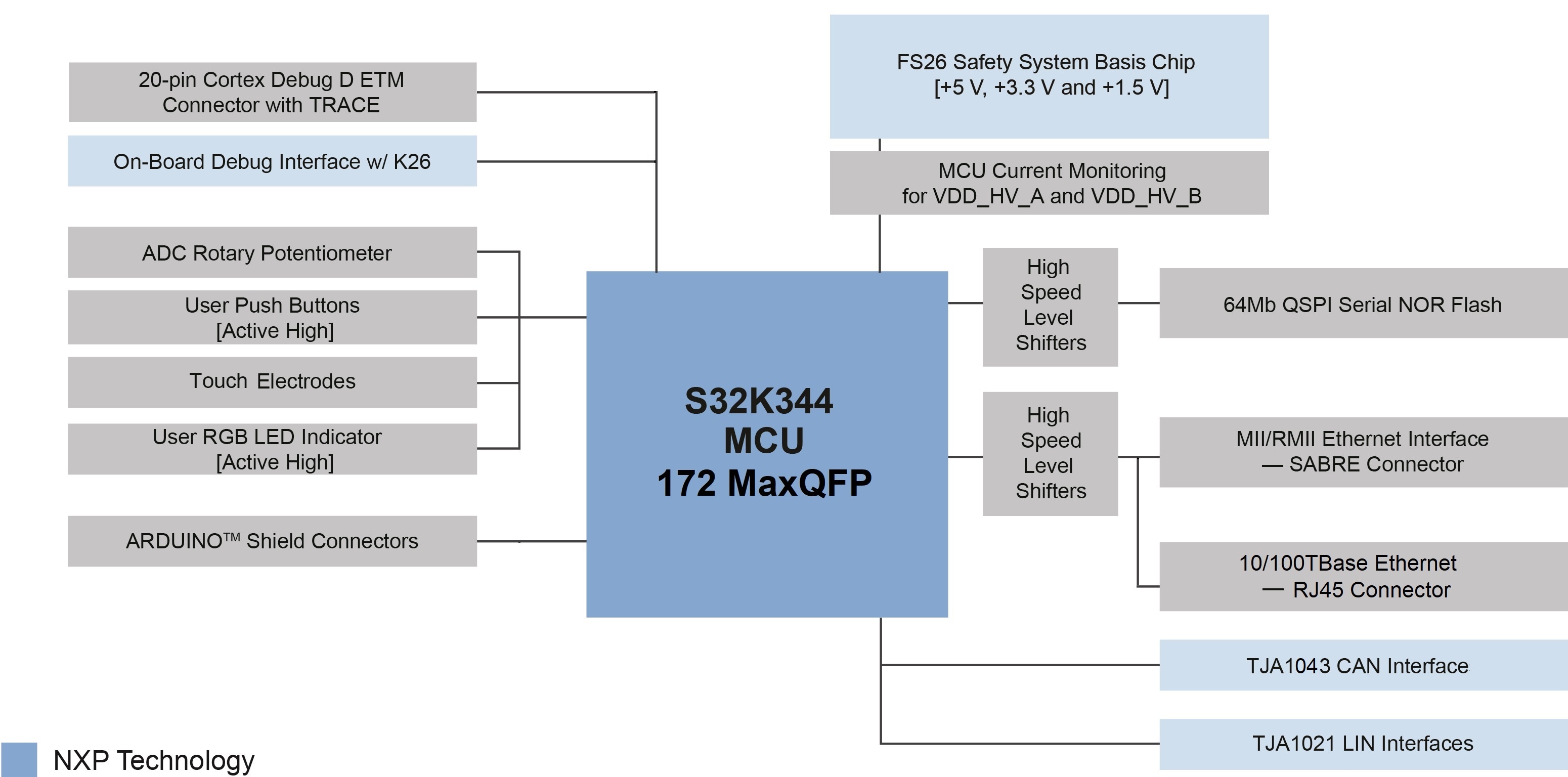

1.2 Block Diagram Features

次へGet Software

2. Get Software

You can watch the video or follow the below step-by-step guide to set up your S32K3X4EVB-Q172 Evaluation Board:

2.1 Get the Integrated Development Environment (IDE)

Download and Install S32 Design Studio IDE for S32 Platform.

Note: You will receive an activation code through email.

Download

2.2 Install the S32K3xx Development Package

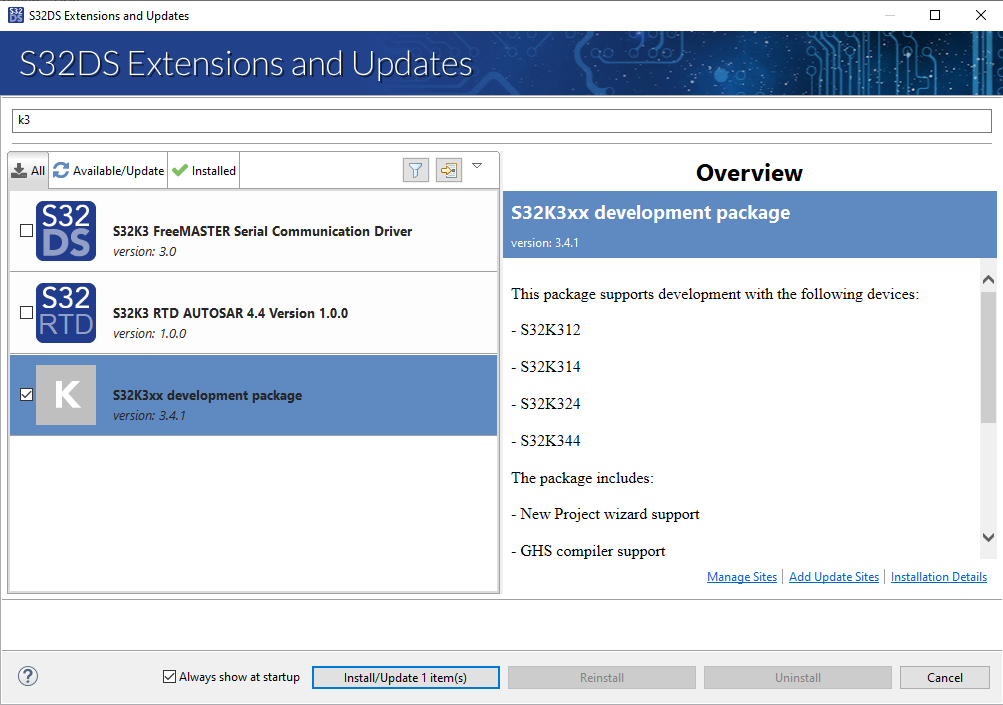

Go to Help → S32DS Extensions and Updates from the top menu to open the S32DS Extensions and Updates. Navigate to the S32K3xx development package and install it.

Note: In case of installation issues, please ensure that the latest version of S32 Design Studio Platform package and S32 Design Studio Platform Tools package is installed.

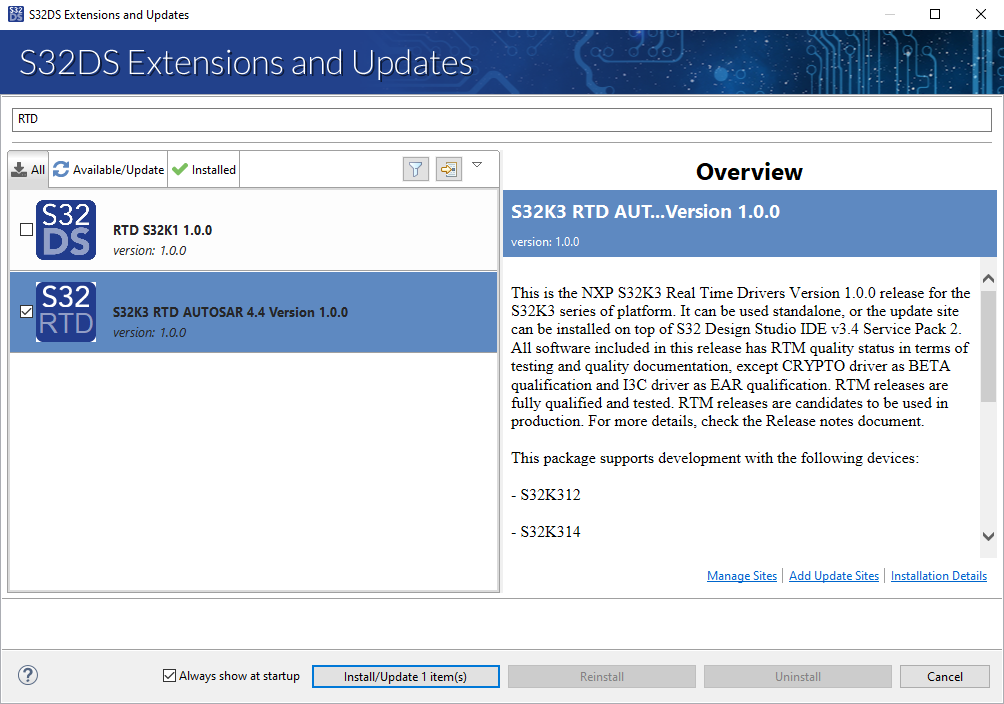

Continue with the installation of the Real-Time Drivers for S32K3xx:

2.3 Download and Install Elektrobit Tresos Studio and Real-Time Drivers (Only AUTOSAR® Users)

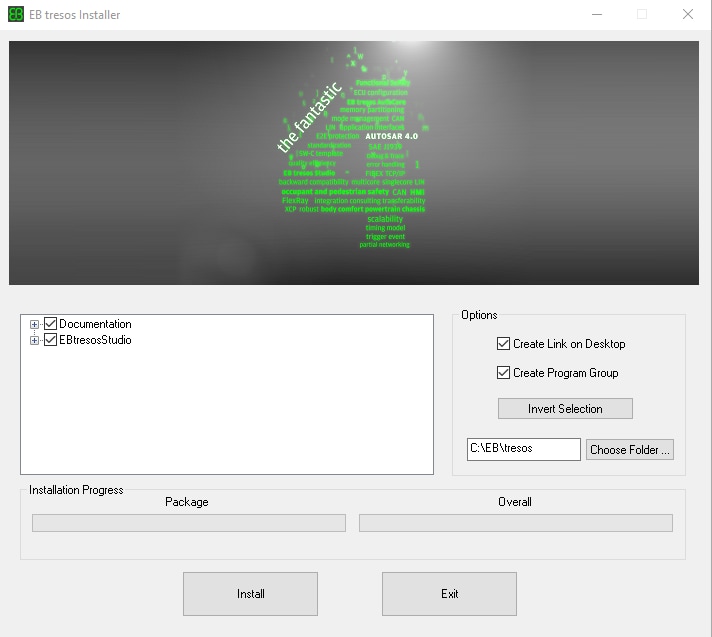

Download and install Elektrobit Tresos Studio / AUTOSAR Configuration Tool from S32K3 Standard Software Package.

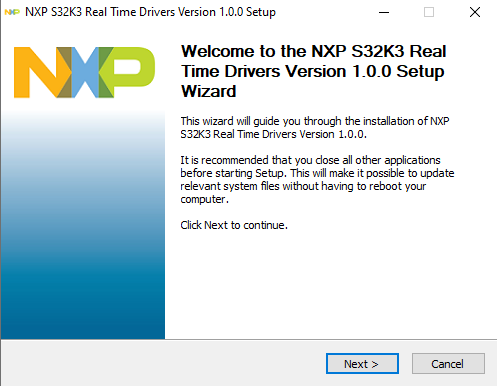

Download and install the .exe file of the S32K3 Real-Time Drivers for Cortex-M from the S32K3 Standard Software Package.

The installer will ask for the EB Tresos installation directory on your disk, saving time in configuration.

Note: You will receive an activation code via email. If you installed RTD prior to EB Tresos, create a SW32K3_RTD_4.4_x.y.z.link file in: C:\EB\tresos\links folder with the content: path=C:/NXP/SW32K3_RTD_4.4_x.y.z, where x,y,z refers to the installed RTD version.

2.4 Get the Run-Time Debugging Tool

S32K3X4EVB-Q172 performs better when using the FreeMASTER Run-Time Debugging Tool.

Note: Check the FreeMASTER page for the latest version.

Download

The FreeMASTER communication driver for S32K3 microcontrollers is also needed; download it from the Automotive SW - S32K3 - S32 FreeMASTER link in the S32K3 Standard Software Package.

前へOut of the Box
次へPlug It In

3. Plug It In

3.1 Set Up Jumpers in the S32K3X4EVB-Q172 Evaluation Board

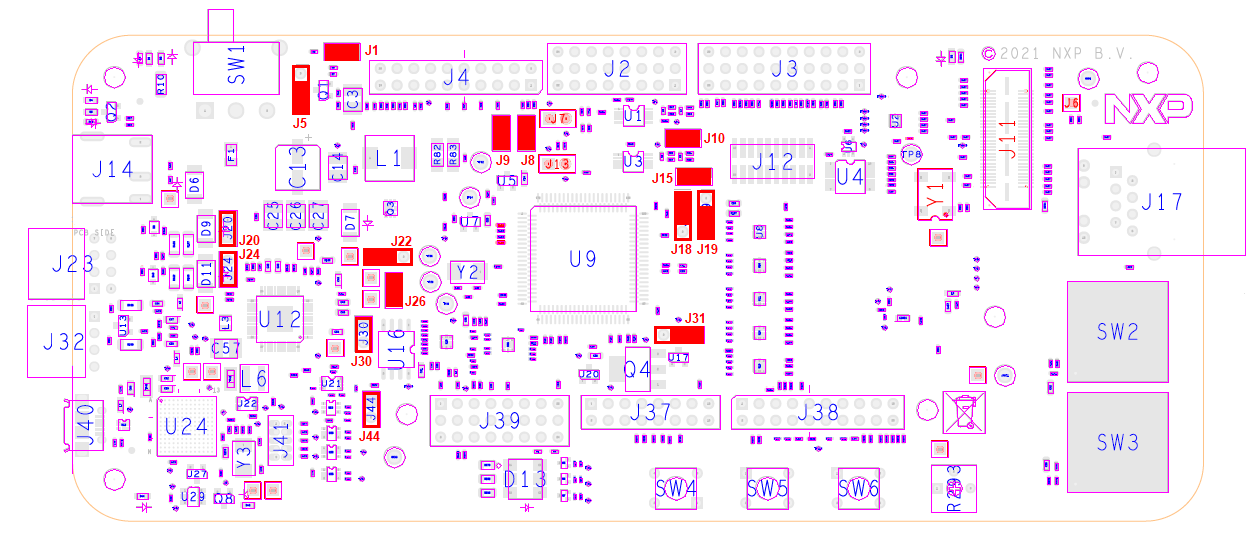

S32K3X4EVB-Q127 JUMPERS IMG

S32K3X4EVB-Q127 JUMPERS IMG
Default Jumper settings
Jumper State Notes
J1 CLOSED Disabled FS26 watchdog after power-up
J5 1-2 Select voltage level for FS26 DEBUG pin
J8 CLOSED External circuits powered from VDD_HV_B domain
J9 CLOSED External circuits powered from VDD_HV_A domain
J10 CLOSED The MCU peripherals powered from the VDD_HV_A domain
J15 CLOSED The MCU peripherals powered from the VDD_HV_B domain
J18 1-2 5 V for the VDD_HV_A domain
J19 1-2 3.3 V for the VDD_HV_B domain
J20 OPEN LIN1 Controller mode
J22 1-2 5 V from FS26 SBC
J24 OPEN LIN2 Controller mode
J26 CLOSED 3.3 V from FS26 SBC
J30 OPEN FS26 wake inputs
J31 1-2 V15 domain powered from FS26 SBC
J44 OPEN Onboard debugger UART pins

3.2 Plug in the Power Supply

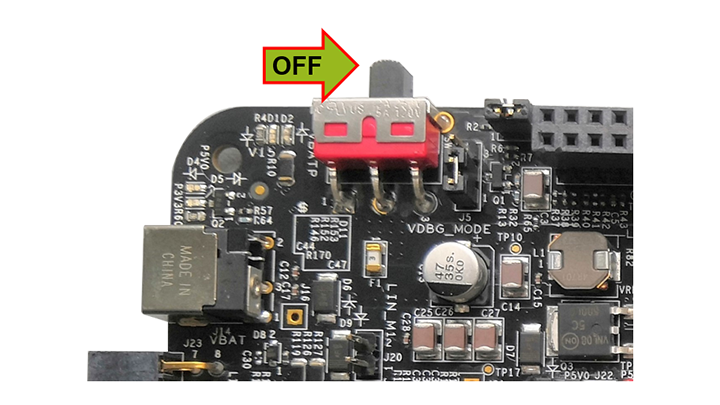

Switch SW1 to the OFF position (fully to the right).

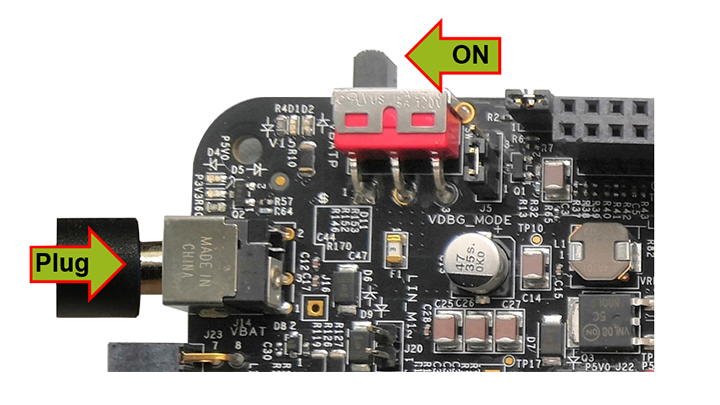

Connect the 12 V power supply adapter and switch SW10 to the ON position (fully to the left).

This power-up procedure manages that SBC starts with the disabled watchdog. Four orange LEDs indicate the active 12, 5, 3.3 and 1.5 V power supply domains.

3.3 Connect the Debugger Cable

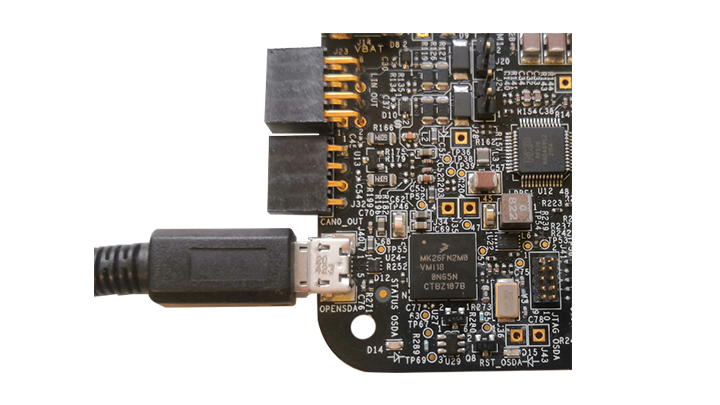

Connect a micro-USB cable to the J40 connector to debug via the onboard S32K3 debugger.

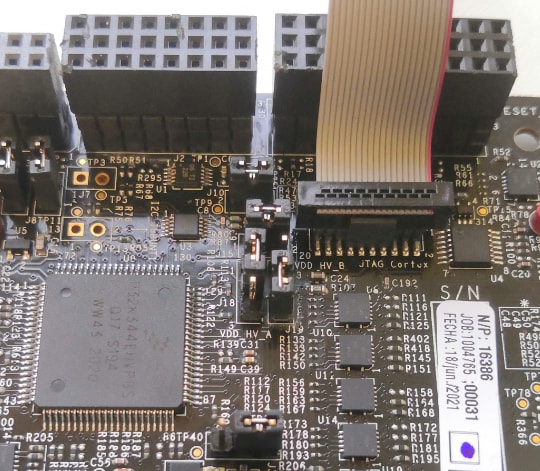

Or use one of the available JTAG connectors to debug via the external S32K3 debugger.

前へGet Software
次へBuild

4. Build

Let's take your S32K3X4EVB-Q172 Evaluation Board for a test drive.

4.1 Create a S32DS Project from Example

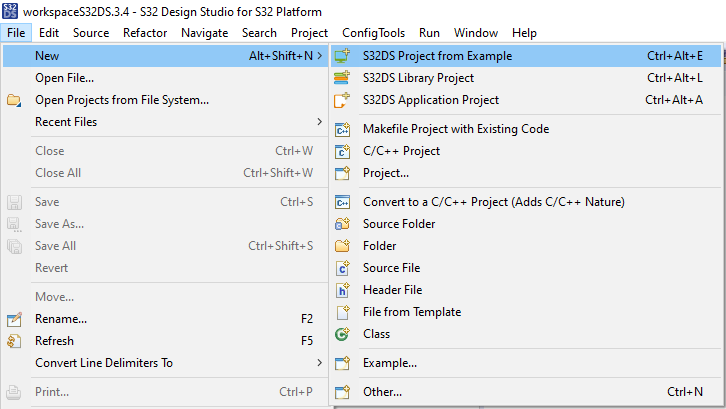

Open S32DS and from the menu, go to: File → New → S32DS Project from Example. Select one of the RTD example codes. You may choose between examples with a high-level API or with a low-level API. For example: Port_example_K344.

4.2 Using the Configuration Tool

Double-click on the .mex project file.

Please ensure that you configure the appropriate project and click on "Update Code" button for generating configuration files.

4.3 Upload Software and Debug

Return back to the C/C++ perspective.

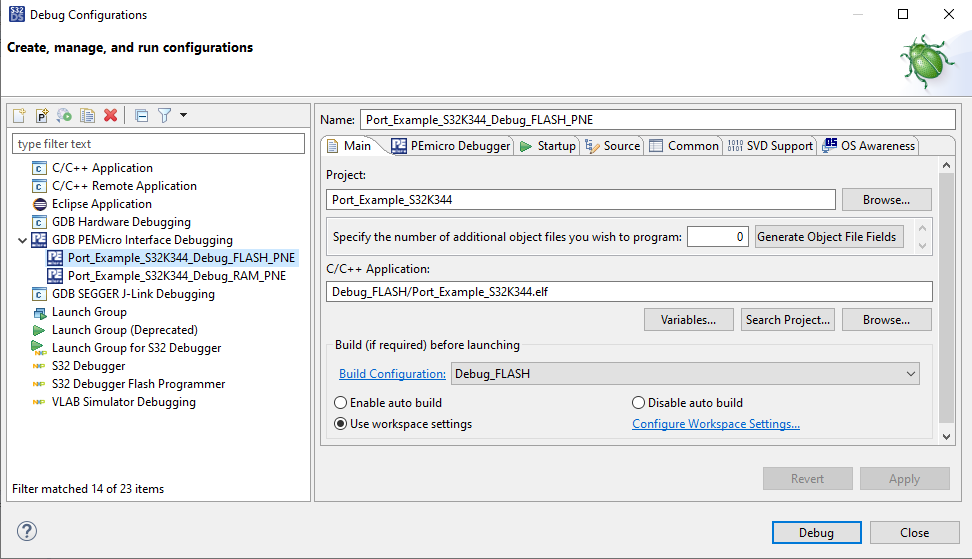

Use the Debug Configuration menu and select one of the predefined debug configurations for building and uploading software into MCU.

Note: If you don't use the default onboard debugger, edit the Debugger tab for your setup.

The S32DS will switch into Debug perspective where you may let the code run.

The red LED will now blink for approximately 10 seconds.

前へPlug It In
次へDesign Resources

Design Resources

Board Information

Chip Documents

Software

前へBuild
次へSupport

Support

Trainings

Forums

Connect with other engineers and get expert advice on designing with the S32K3X4EVB-Q172 evaluation board using our community sites.

前へDesign Resources
