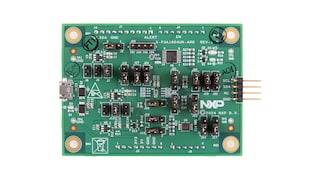

4-Bit Dual Supply Bidirectional I3C/I²C-Bus, SMBus and SPI Voltage-Level Translator
The P3A1604UK is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. The P3A1604UK has wide supply voltage range, VCCA from 0.72 V to 1.98 V and VCCB from 1.62 V to 3.63 V. It supports I3C / I²C / SMBus / SPI applications. This device helps translate the latest SoC / ASIC / MCU using advance process nodes to interface with peripherals at higher voltage rails.
製品詳細
ブロック図
Features
Key Features
-
Wide supply voltage range:
- VCCA: 0.72 V to 1.98 V and VCCB: 1.62 V to 3.63 V
- A-side and OE inputs accept voltages up to 1.98 V
- B-side inputs accept voltages up to 3.63 V
- Temperature Range: Specified from -40 °C to +125 °C
- Support I3C / I²C / SMBus / SPI interfaces
- Auto direction sensing and bidirectional voltage level translation
- No power-sequencing required
- Maximum data rate (DDR) per bit: open-drain: 6.8 Mbps (3.4 MHz), push-pull: 40 Mbps (20 MHz)
- Longer one-shot pulse for driving larger capacitive loads with much reduced ringing and overshoot
- I/O latch-up current 100 mA, JESD 78
ESD Protection
- HBM JESD22-A114E Class 2 exceeds 2000 V
- CDM JESD22-C101E exceeds 500 V
Package

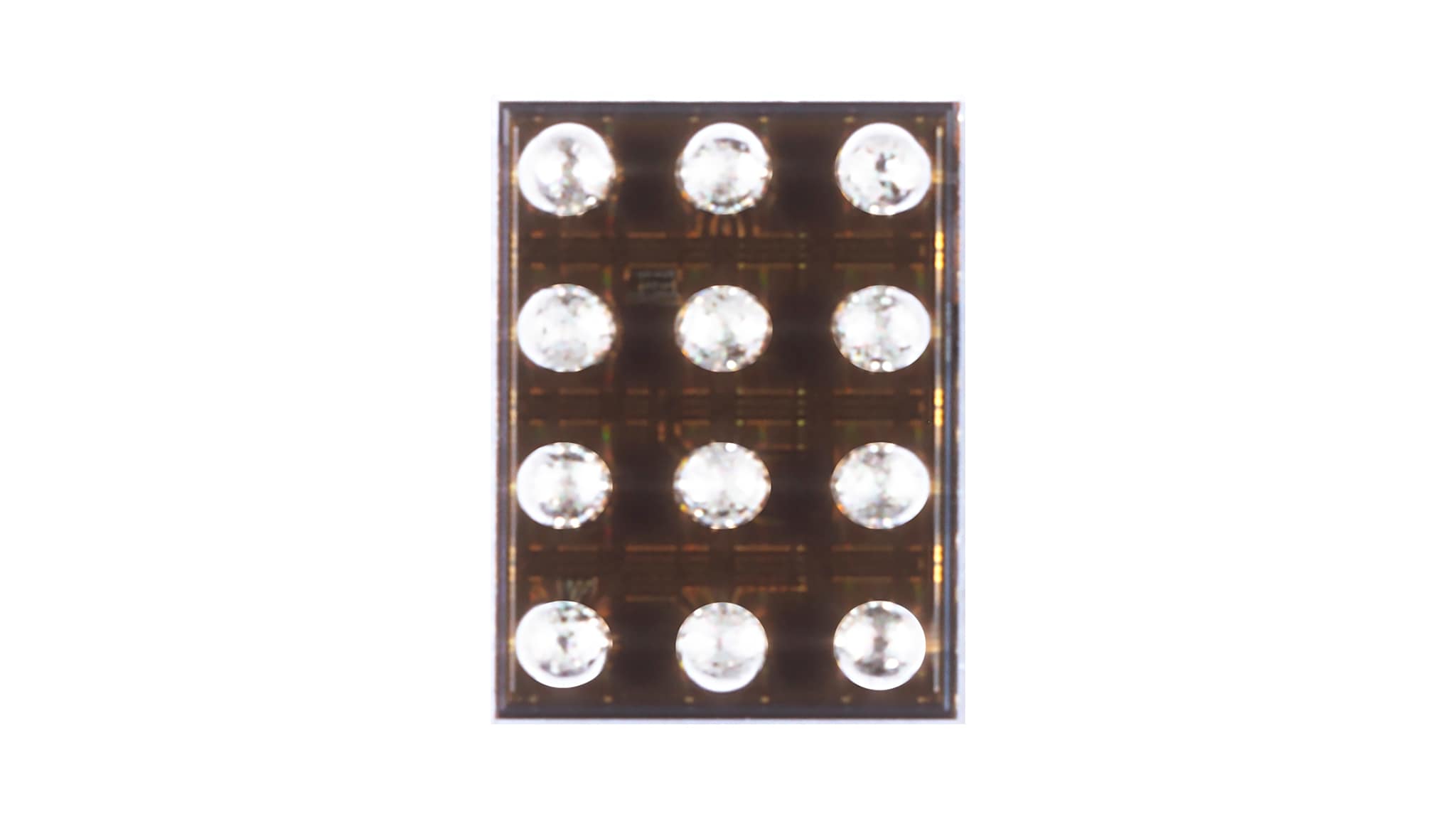

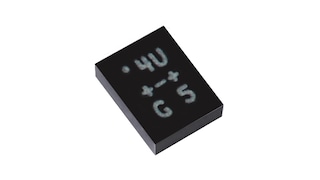

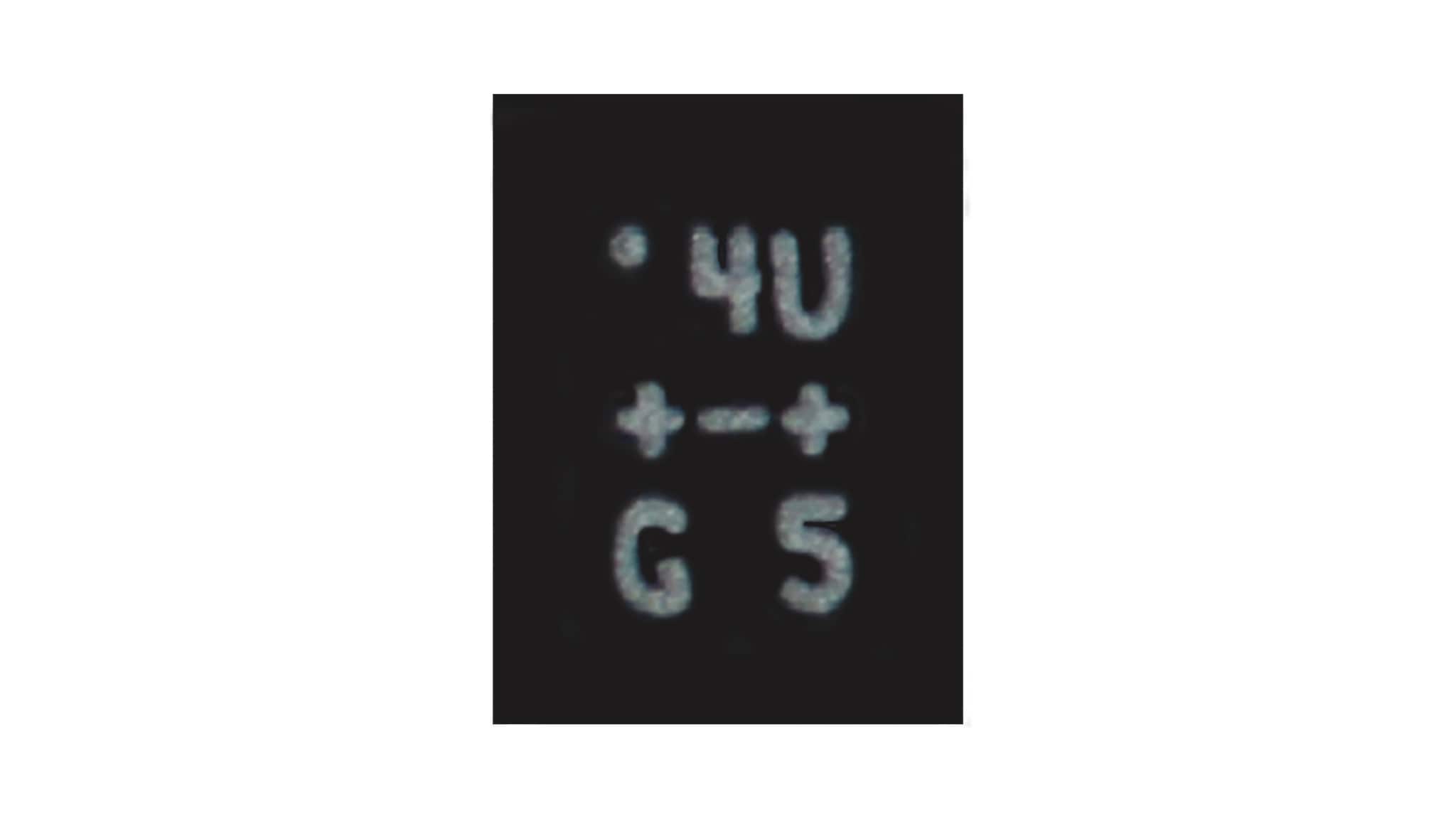

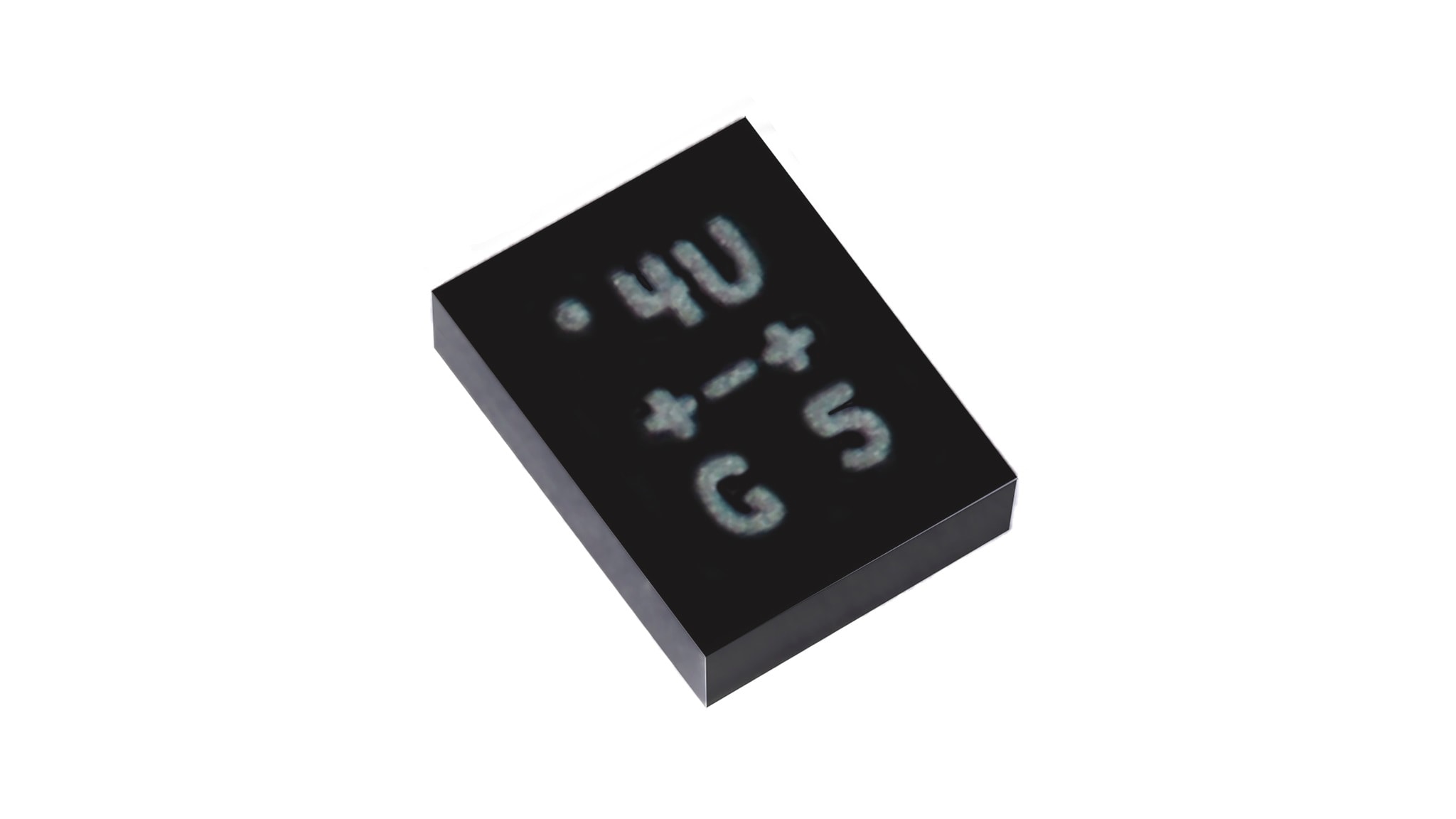

- WLCSP12 (1.405 mm x 1.055 mm, 0.35 mm pitch)
