OM13511
アクティブ -

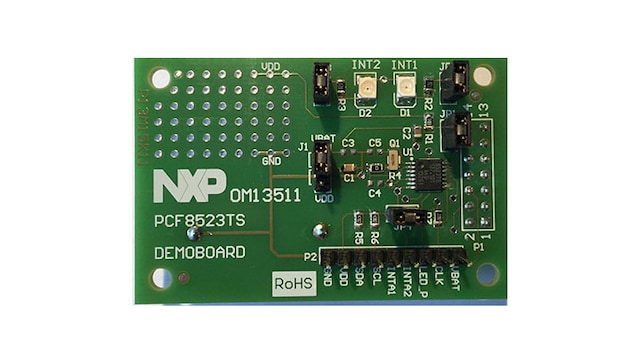

I2C-bus RTC PCF8523 demoboard.
I²C-Bus RTC PCF8523 Demo Board
The PCF8523 is a real-time clock based on an ultra-low power oscillator and using an I²C-bus for interfacing. The OM13511 is the ideal evaluation/demoboard to use during the design phase of any project, just power and I²C-bus must be connected. If an SPI-bus would be the preferred interface, the PCF2123 with demoboard OM13512 could be used for evaluation.
製品詳細
対応製品
アナログとミックスド・シグナル
リアルタイム・クロック
- PCF8523: 100 NA Real-Time Clock/Calendar with Battery Backup
Features
Key Features
- I²C-bus RTC PCF8523TS
- Quartz crystal
- All signals are accessible on a row of pins
Power Management
- Coin cell battery
- Decoupling capacitors to buffer the supply voltage
