TEA1936XDB1521
アクティブ -
45W USB PD2.0 demo board.

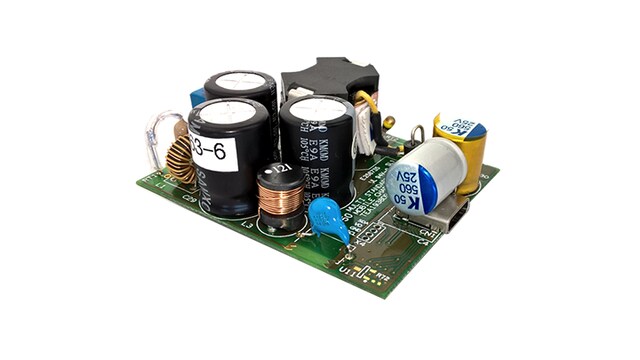

- TEA1936XDB1521 demo board
- Quick start guide
TEA1936xDB1521 - USB PD 45 W Mobile Charging
The Multi-Standard 45W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.
The TEA1936xDB1521 demo board is a derivative version of the TEA1936xDB1463 demo board. The TEA1936xDB1521 uses a different protocol controller (TEA19031), which only supports PD2.0. For evaluation purposes, we recommend ordering the TEA1936xDB1463 demo board, which supports PD2.0 and QC2.0 / 3.0.
The Multi-Standard Charger supports the following standards:
- USB PD2.0
製品詳細
Features
Key Features
- Multi-protocol support for USB-PD 2.0 and 3.0
- Functionality user-configurable end of line
- Best-in-class energy efficiency meeting all DOE & EU CoC requirements
- < 30 mW no-load power, low audible noise, low output voltage ripple
- Small size due to high near-full digital integration level and > 15.9 W/CI power density
- Best-in-class Thermal management
- Safe solution with extensive set of hardware-integrated protection features
- Complete one-stop-shop solution from NXP Semiconductors minimizing development time and research and development cost
