Dual Synchronous Rectifier Controller

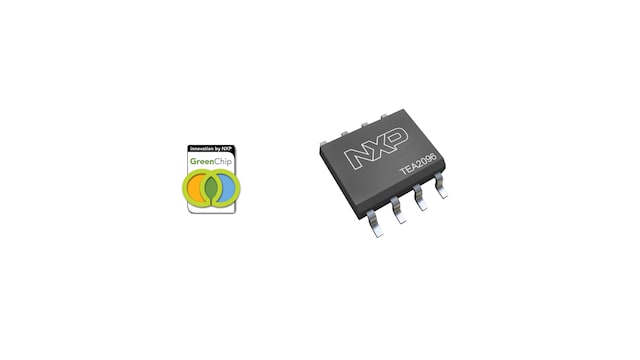

The TEA2096T is a new synchronous rectifier (SR) controller IC for switched-mode power supplies. It incorporates an adaptive gate drive method for maximum efficiency at any load.
The TEA2096T is a dedicated controller IC for synchronous rectification on the secondary side of resonant converters. It has two driver stages for driving the SR MOSFETs, which rectify the outputs of the central tap secondary transformer windings. The two gate driver stages have their own sensing inputs and operate independently. The TEA2096T is optimized for efficient operation with very low-ohmic MOSFETs and switching at high frequencies. The TEA2096T is fabricated in a silicon-on-insulator (SOI) process.
The TEA2095T/TE is optimally used in resonant power supplies for servers, PCs, TVs, adapters and other switch mode power supplies.
製品詳細
Features
Efficiency Features
- Adaptive gate drive for maximum efficiency at any load
- Supply current in energy save operation of 80 μA
- Regulation level of −29 mV for driving low-ohmic MOSFETs
Application Features
- Drain sense voltage to 200 V
- Wide supply voltage range from 4.5 V to 38 V
- Dual synchronous rectification for LLC resonant
- Supports 5 V operation with logic level SR MOSFETs
- Differential inputs for sensing the drain and source voltages of each SR MOSFET
- SO8 package
Control Features
- SR control without minimum on-time
- Adaptive gate drive for fast turn-off at the end of conduction
- Undervoltage lockout (UVLO) protection with active gate pull-down
- Interlock function to prevent simultaneous conduction of the external MOSFETs
- Supports 1 MHz switching frequency
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
部品番号： TEA2096T.
