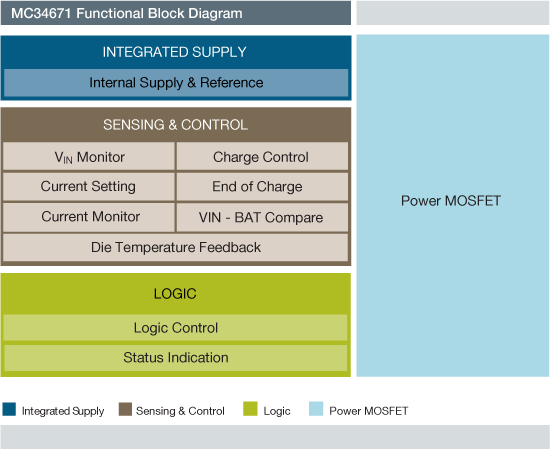

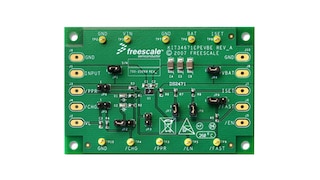

The MC34671 is a cost-effective fully integrated battery charger for Li-Ion or Li-Polymer batteries. It tolerates an input voltage up to 28 V, which eliminates the input over-voltage protection circuit required in handheld devices. A charge cycle includes trickle, constant-current (CC) and constant-voltage (CV) charge modes.
The constant-current (CC) is programmable up to 600 mA, with an external resistor.The constant voltage is fixed at 4.2 V. The trickle charge current is preset to 20% of the CC current when the battery voltage is lower than the trickle-charge threshold. The end-of-charge (EOC) current threshold is preset to 10% of the CC current to save board space and cost. A charge-current thermal foldback feature limits the charge current when the IC internal temperature rises to a preset threshold.
The MC34671 has a 2.6 V falling power-on-reset (POR) threshold, making it perfect to work with current-limited power supplies. Three indication pins (PPR, CHG, and FAST) can be simply interfaced to a microprocessor or LEDs. When no power supply is connected, or when disabled, the charger draws less than 1.0 µA leakage current from the battery.
注: 製品の特徴を見るには、このウィンドウを閉じます。.
1 結果
マッチしていない 0 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | 製品機能 | 標準価格 | パッケージタイプ | パッケージ端子数 | 出力電圧 (V) | 出力電流 (A) | バッテリ・チャージャ | 電池セル数 | 充電終了方法 | 充電電流タイプ | 電源電圧 [最小] (V) | 電源電圧 [最大] (V) | インターフェースと入力制御 | Ambient Operating Temperature (Min to Max) (℃) | Input Voltage (Max) (V) | その他の機能 - アナログ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | battery chargers | 1K @ US$0.79 | HUSON8 | 8 | 4.2 | 0.6 | Li-ion battery, Li-polymer battery | 1 | end of charge, microcontroller control, over voltage protection | constant charge current, trickle charge current | 4.3 | 10 | Parallel / Parallel | -40 to 85 | 28 | AC Supply Voltage, End of Charge Termination, Overvoltage Charge Termination |
