2.3 GHz-2.7 GHz RX Front-End Module
The BTS7202H is a dual channel receiver front-end module (RX FEM) available in an HVQFN40 package. The BTS7202H is designed for 5G mMIMO infrastructure applications. The BTS7202H includes two independent receive channels each with a low noise amplifier (LNA). The gain can be set to two different gain levels. Each channel also has a switch to route high-power TX signals to a termination load.
The device is matched to 50 Ω.
製品詳細
Features
- Operating frequency range 2.3 GHz – 2.7 GHz
- Two independently operating channels
- 480 mW power dissipation per channel
- High gain RX mode power gain 37 dB
- Low gain RX mode power gain 19 dB
- Typical Noise Figure 0.95 dB
- High TX power handling 44 dBm (10.5 dB PAPR)
- Single-ended input /output RF ports matched to 50 Ω
- Fast switching time between operation modes
- ESD protection on all pins

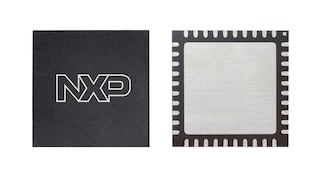

- HVQFN40 package 6 mm x 6 mm x 0.85 mm with 40 pins
