5G Massive MIMO Pre-Driver

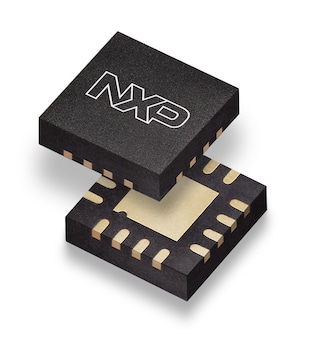

The BTS6403U is a wideband high gain, high linearity, pre-driver amplifier for 5G massive MIMO infrastructure applications, with fast on-off switching to support TDD systems. The amplifier is designed to operate between 2.3 GHz and 4.2 GHz. It is housed in a 3 mm x 3 mm x 0.85 mm 16-terminal HVQFN package. The amplifier is ESD protected on all terminals.
製品詳細
Features
- High saturated output power Po(sat) = 29.5 dBm
- High power-gain Gp = 38.5 dB
- High linearity performance ACLR = -45 dBc
- Unconditionally stable
- Fast switching to support TDD systems
- 5 V single supply, quiescent current 100 mA
- Small 16-terminal leadless package 3 mm x 3 mm x 0.85 mm
- ESD protection on all terminals
- Moisture sensitivity level 1
