728-960 MHz, 2.5 W Avg., 28 V RF LDMOS Wideband Integrated Power Amplifiers

MD8IC925N アクティブ
The MD8IC925NR1 and MD8IC925GNR1 wideband integrated circuits are designed with on-chip matching that make them usable from 728 to 960 MHz. This multi-stage structure is rated for 24 to 32 volt operation and covers all typical cellular base station modulation formats.

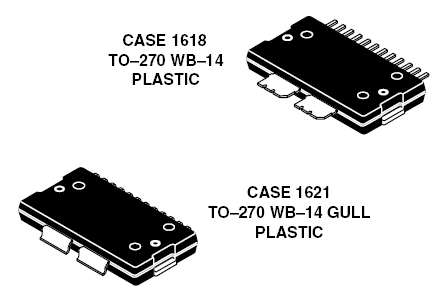

製品画像を見る

Features

  • Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source S-Parameters
  • On-Chip Matching (50 Ohm Input, DC Blocked)
  • Integrated Quiescent Current Temperature Compensation with Enable/Disable Function
  • Integrated ESD Protection
  • Designed for Digital Predistortion Error Correction Systems
  • Optimized for Doherty Applications
  • 225°C Capable Plastic Package
  • RoHS Compliant
  • In Tape and Reel. R1 Suffix = 500 Units, 44 mm Tape Width, 13-inch Reel.

RF Performance Tables

Driver Application - 900 MHz

Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ1(A+B) = 58 mA, IDQ2(A+B) = 222 mA, Pout = 2.5 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 PAE
(%)		 ACPR
(dBc)
920 MHz36.217.5–48.9
940 MHz36.217.4–49.5
960 MHz36.117.3–49.1
  • Capable of Handling 10:1 VSWR, @ 32 Vdc, 940 MHz, 25 Watts CW Output Power (3 dB Input Overdrive from Rated Pout)
  • Typical Pout @ 1 dB Compression Point ≃ 26 Watts CW

Driver Application - 700 MHz

Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ1(A+B) = 58 mA, IDQ2(A+B) = 222 mA, Pout = 2.5 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 PAE
(%)		 ACPR
(dBc)
728 MHz36.417.2–48.9
748 MHz36.417.6–49.7
768 MHz36.417.9–50.5
