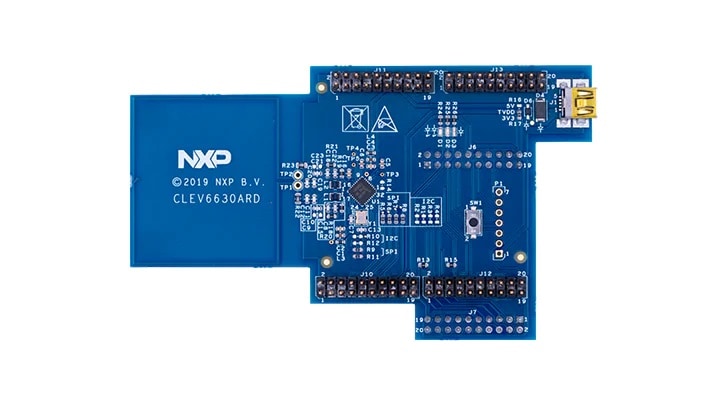

NFC frontend CLRC663 plus Arduino® interface board

BLE-NFC アクティブ

画像にカーソルを合わせると拡大表示されます。

The CLEV6630ARD development board can be easily connected with Arduino boards, enabling NFC frontend CLRC663 plus development with any processor board compatible with Arduino pin-headers, including most LPCXpresso, Kinetis®, and i.MX boards.

This CLRC663 plus development board works perfectly with FRDM-K82F, the Freedom development platform for Kinetis K82, K81, and K80 MCUs, allowing rapid prototype development. It is fully supported by the NFC Reader Library.

対応製品

RFID

NFCリーダ

  • CLRC66303HN: CLRC663 plus Family: High-Performance NFC Frontends

ワイヤレス・コネクティビティ

Bluetooth Low Energy

  • QN902X: QN9020/21/22 - Ultra-Low-Power Bluetooth LE System-On-Chip Solution

Features

Connectivity

  • Integrated NFC functionality to interact with NFC NTAG® 21x and ICODE® SLIX tags

Power Management

  • Low-power mode using the NFC Low-Power Card Detection features

Software Update

  • Firmware project with application source code

購入オプション

CLEV6630ARD-Image

クリックして展開

  • CLEV6630ARD
    アクティブ

  • CLEV6630ARD: NFC frontend CLRC663 plus Arduino® interface board.

  • $67.62 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 23
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
