高性能NFCリーダー、カスタマイズ可能なMCU、セキュリティ・ツールボックスを備えたシングルチップ・ソリューション

PN7642 アクティブ

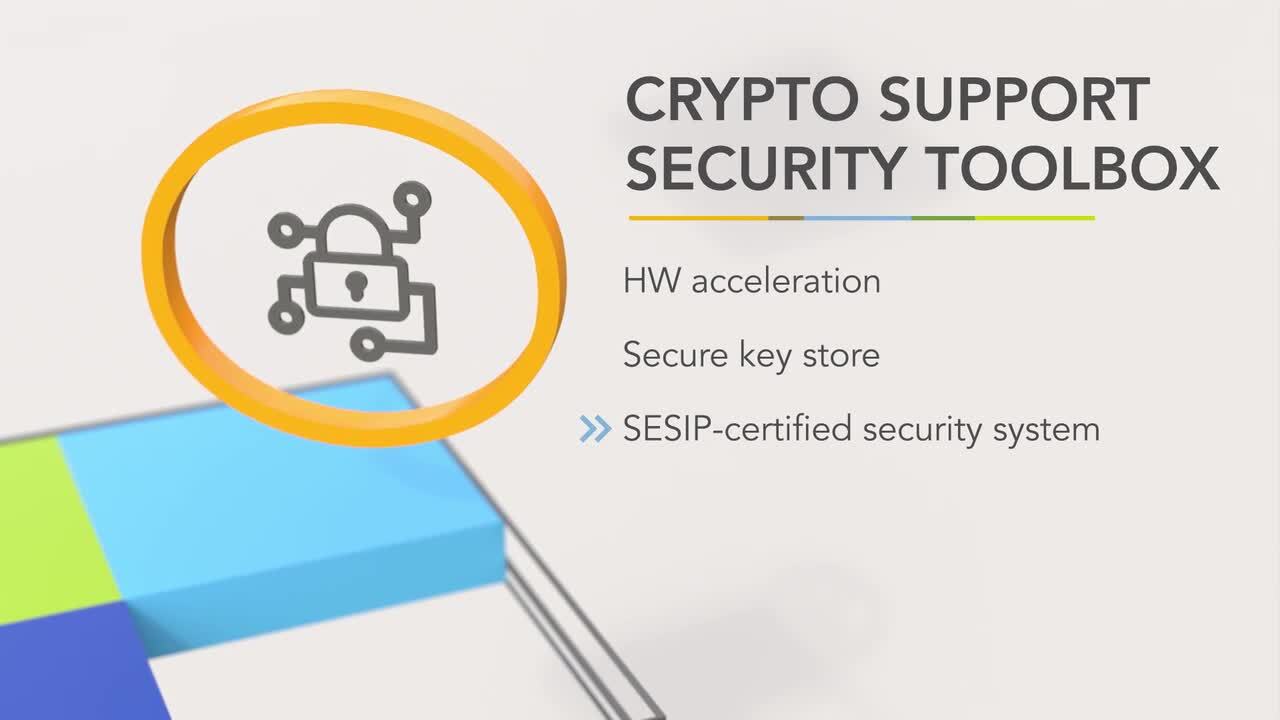

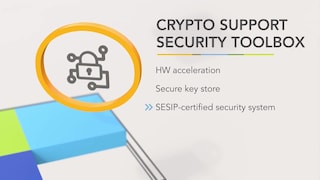

PN7642: NFC Reader, MCU and Security in Single-Chip

動画の上をクリックすると再生されます。

PN7642は、高性能のNFCリーダー、低消費電力のArm® Cortex®-M33ベースMCU、180 KBのプログラマブル・フラッシュ・メモリ、セキュアな鍵保管および暗号化向けに最適化されたSESIP認定セキュリティ・システムを組み合わせた、高集積のカスタマイズ可能なソリューションです。

PN7642は、追加のMCUや専用セキュア・エレメントが不要な汎用性の高いソリューションです。幅広いコントローラ・インターフェースやホスト・インターフェース、および包括的な製品サポート・パッケージで、迅速なデザインインをサポートします。

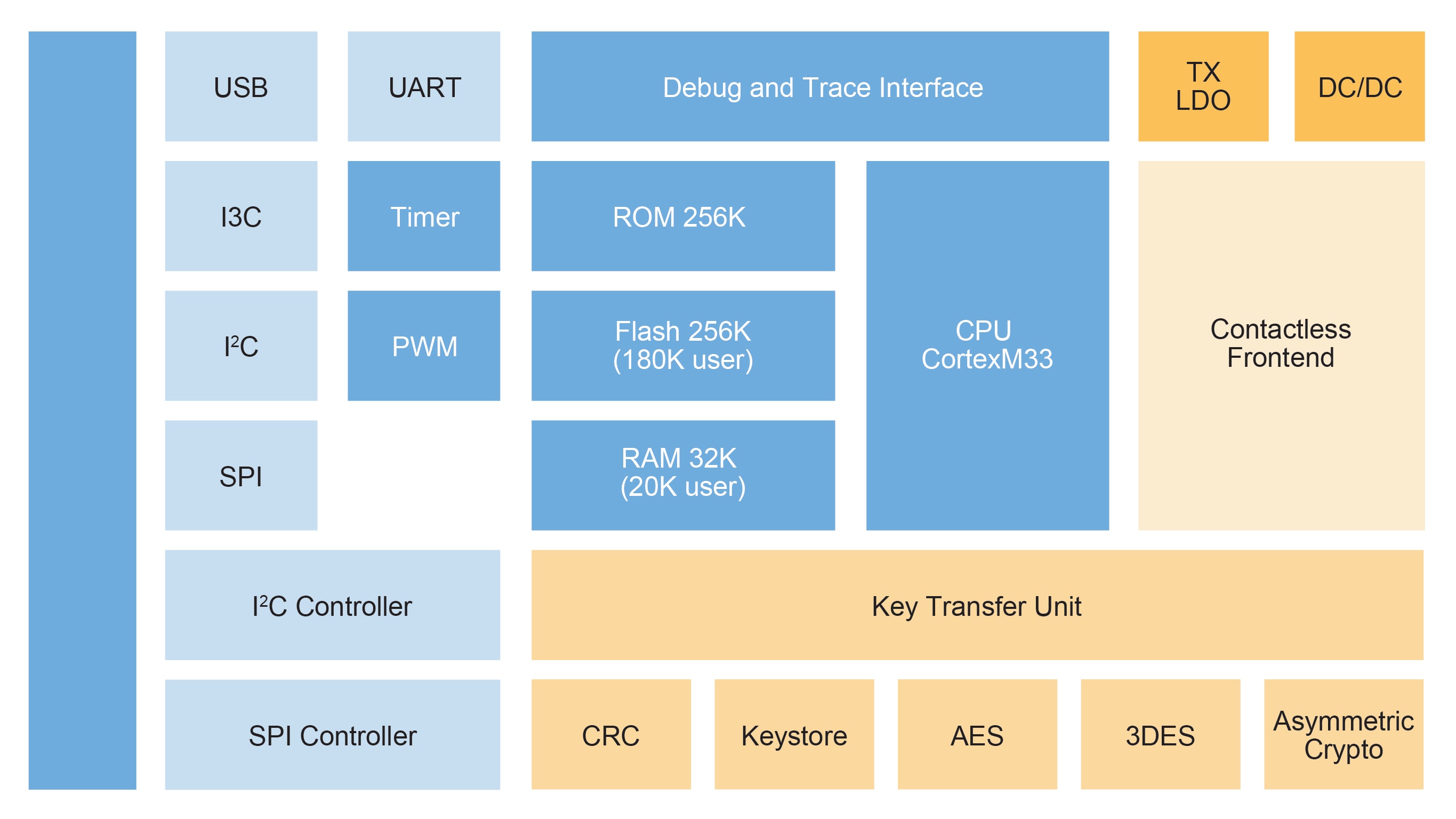

ブロック図

PN7642

PN7642
図を取得する PDF

特長

  • ARM Cortex M-33コア：90 MHz、20 KBのユーザーRAM、180 KBのユーザー・フラッシュ
  • 読み取り/書き込み、カード・エミュレーションの各モードをサポートする、NFCフォーラム準拠のNFCリーダー
    • 読み取り/書き込みモード：ISO/IEC 14443A-BおよびレガシーB'、FeliCa™、ISO15693、ISO18000 EPC-HF。MIFARE®、DESFire®、NTAG®（NTAG 5、最大212 kbit/s）、ICODE®、およびSmartMX®ファミリをフルサポート
    • CEモード：ALM/PLMでISO/IEC 14443-4A準拠（最大848 kbps）

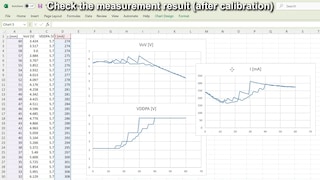

  • 高出力2 W：トランスミッタ最大動作電流350 mA、ダイナミック・パワー・コントロール (DPC 2.0) および自動波形制御 (AWC)
  • DC/DCの統合により3.3 Vの単一電源で最大送信電力を実現
  • 超低消費電力のカード検出（22 μAタイプ）
  • ECP 2.0 (Apple Enhanced Contactless Polling) をサポート
    • 対称および非対称アルゴリズムのハードウェア・アクセラレーション
    • 最大13個の128ビット対称鍵（または6個の256ビット鍵）を格納するセキュアな鍵ストレージ
    • サイド・チャネル攻撃に対するソフトウェア保護
  • 2.4～5.5 Vの電源
  • 充実したインターフェースのセット
    • SPI（最大15 Mbit/s）およびI²C（最大3.4 Mbit/s）のコントローラ
    • I²C、I³C（最大3.4 Mbit/s）およびSPIターゲット
    • 最大21本のGPIO
    • USBデバイスおよびHSUART
    • 3つのPWMインターフェース、ADC (10b) （非DPC構成）
    • TDA接続用ISO-AUXインターフェース
    • GP 32bタイマ x 4、WDタイマ x 1、SWDインターフェース
  • MCUXpresso IDE/SDKへの統合を含む広範なサポート・ツール
  • ホスト・インターフェース、NFC、およびユーザー・アプリケーションからのファームウェア・アップデート
  • 拡張動作温度範囲：-40～+105°C
  • GlobalPlatform SESIPレベル2認定
  • VFBGA64パッケージ (4.5 x 4.5 x 0.8 mm)
  • NFC Cockpit構成ツールによるサポ ート
