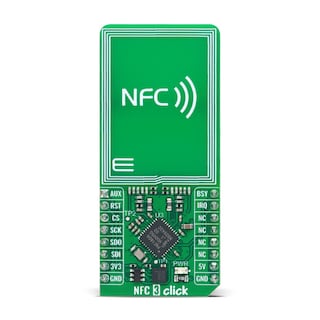

NFCフォーラム完全準拠のフロントエンドIC

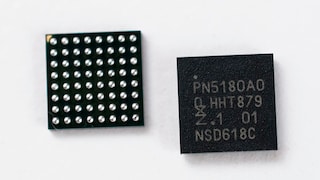

PN5180 アクティブ

画像にカーソルを合わせると拡大表示されます。

タグおよびリーダー・デバイス向けの新しいオンラインNFCアンテナ・ツールをご覧ください。

PN5180は、さまざまな非接触通信方式およびプロトコルに対応するNFCフォーラム完全準拠の高性能なフロントエンドICです。標準のPOS端末アプリケーション向けのコスト効率の高いソリューションであり、EMVCo 3.1アナログおよびデジタルL1の認証取得を可能にし、DPC（ダイナミック・パワー・コントロール）およびAWC（自動波形制御）機能を備えたNFCフロントエンドを実装しています。PN5180はホスト・コントローラとのリアルタイム通信に依存しないため、Linux™やAndroidのようなプリエンプティブなマルチタスクOSを動作させるシステムに適しています。

特長

さまざまなRF動作モードをサポート

  • ISO/IEC 14443-A（最大848 kbit/s）、MIFARE®をサポートするリーダー/ライター・モード
  • ISO/IEC 14443-B（最大848 kbit/s）をサポートするリーダー/ライター・モード
  • JIS X 6319-4（FeliCaの方式と同等）をサポートするリーダー/ライター・モード
  • ISO/IEC 15693をサポートするリーダー/ライター・モード
  • ISO/IEC 18000-3モード3をサポートするリーダー/ライター・モード
  • ISO/IEC 18092 (NFC-IP1)
  • ISO/IEC 21481 (NFC-IP-2)
  • ISO/IEC 14443-type A（最大848 kbit/s）対応のカード・エミュレーション
  • すべてのNFCタグ・タイプ

SPI実装済みのホスト・インターフェース

  • MOSI、MISO、NSS、SCK信号を用いるデータ・レート最大7 Mbit/sのSPIインターフェース
  • ホスト・コントローラにイベントを通知する割込みリクエスト・ライン
  • EEPROMで設定可能なSPI MISOライン上のプルアップ抵抗
  • 読み取りデータの有無を示すビジー・ライン

ホスト・コントローラとの相互通信が不要

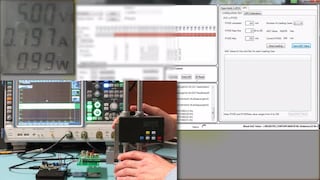

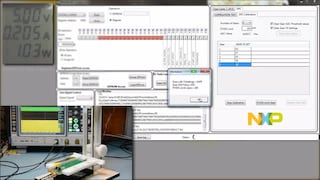

  • ダイナミック・パワー・コントロール (DPC)

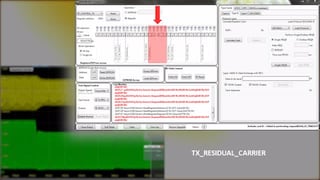

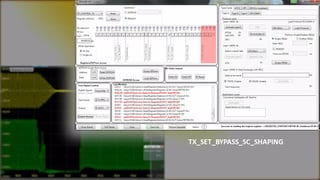

  • アダプティブ・ウェーブフォーム・コントロール (AWC)
  • アダプティブ・レシーバ・コントロール (ARC)
  • 全自動のEMDエラー処理機能

その他の特長

  • ゼロパワー・ウェイクアップ
  • NFC、非接触操作、およびEMVCo 3.1に関連する全規格への準拠が実証済み
  • NXPのLPC1769 32ビットMCUとアンテナを使用した開発キット

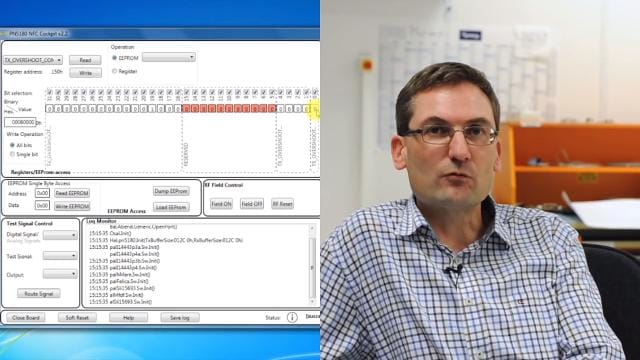

  • NFC Cockpit構成ツールによるサポ ート

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
