S32V2 Vision and Sensor Fusion low-cost Evaluation Board

SBC-S32V234 アクティブ

画像にカーソルを合わせると拡大表示されます。

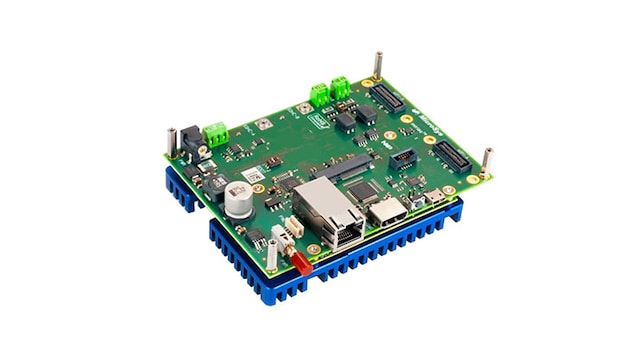

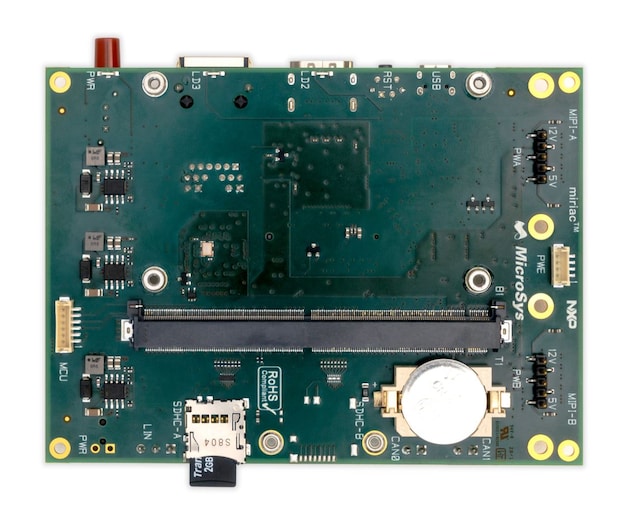

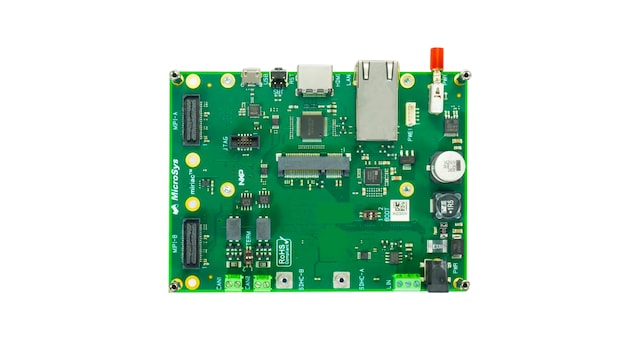

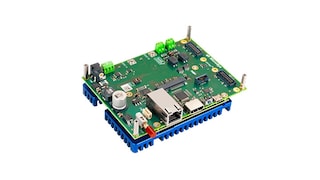

The SBC-S32V234 is a cost-competitive evaluation board and development platform engineered for high-performance, safe computation-intensive front vision, surround vision, and sensor fusion applications.

Developed in partnership with MicroSys and based on the 64-bit Arm® Cortex®-A53 S32V processors, the SBC-S32V234 has an efficient form factor while covering many of the uses cases available for the S32V234 processors.

The SBC-S32V234 is the recommended starting evaluation board for S32V processors.

The S32V234 processors offer both S32V234-EVB2 and SBC-S32V234 board options with similar functionality; consider using the cost-competitive and small form factor SBC-S32V234 evaluation board if your use case is covered by all its features.

対応製品

プロセッサ＆マイクロコントローラ

S32V2 Vision MPU

  • S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion

Features

Processor

  • Arm® Cortex®-A53, 64-bit CPU
    • Up to 1000 MHz Quad Arm Cortex-A53
    • 32 KB/32 kB I-/D- L1 Cache
  • Arm Cortex-M4, 32-bit CPU
    • Up to 133 MHz
    • 16 KB/16 kB I-/D- L1 Cache

Power Management

  • 5 and 12 V Power Supply connector

Display / Camera Connectors

  • Video input (2 x MIPI-CSI2)
  • Video Output (RGB to HDMI converter)
  • 1x PCIe 2.0

Connectivity

  • Gigabit Ethernet
  • 2 x CAN, 1 x LIN and 1 x UART
  • Up to 8 ADC channels

Memory

  • 2 GiB DDR Memory plus SD card slot and 16 GiB EMMC for NVM

User Components

  • 2 User LEDs
  • Reset

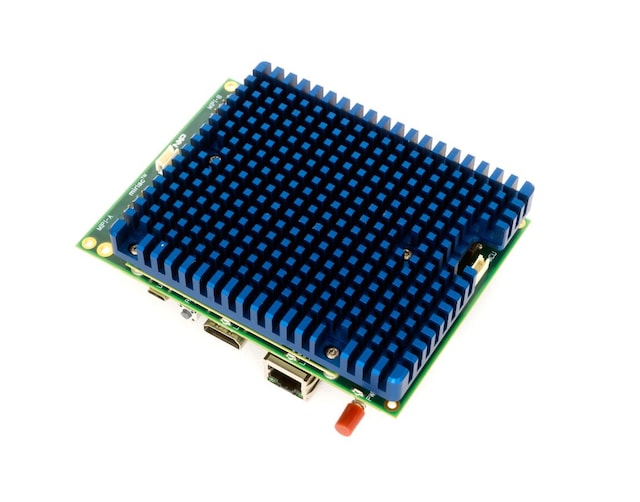

  • Aluminum Heatsink and optional fan (not included)

Debug

  • 10-pin JTAG debug connector

もっと見る

購入オプション

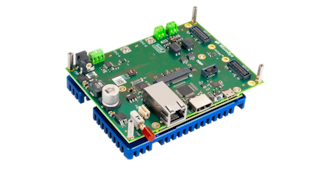

SBC-S32V234-Image

クリックして展開

  • SBC-S32V234
    アクティブ

  • S32V2 Vision and Sensor Fusion low-cost Evaluation Board .

    • SBC-S32V234 Evaluation Board
    • 12 V power adapter
    • SD card
  • $979.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
