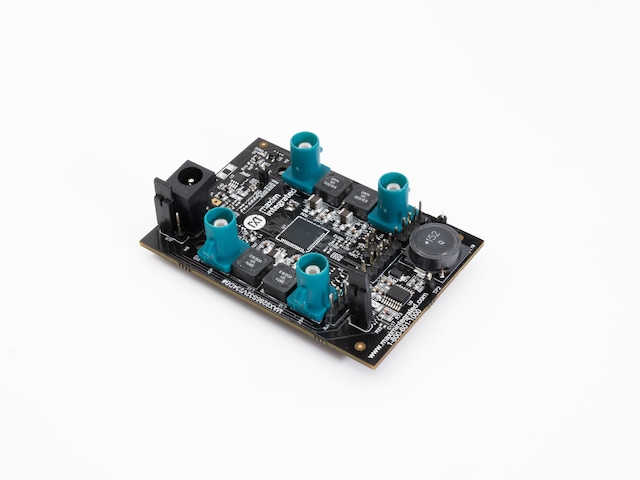

MAX9286S32V234
アクティブ -
MIPI de-serializer for Quad camera input on SBC-S32V234/S32V234-EVB2. Camera cables with connectors are not included.
S32V MIPI Cameras and De-Serializer
Selection of cameras and de-serializer to speed up vision application development with SBC-S32V234 and S32V234-EVB2 boards:
- OV10640CSP-S32V: (OV10640-N79) MIPI based camera with OmniVision 10640 sensor that connects directly with MIPI ports of S32V boards.
- S32V-SONYCAM: MIPI based camera with Sony IMX224 sensor that connects directly with MIPI ports of S32V boards.
- MXOV10635-S32V / MAXCAMOV10635#: OmniVision 10635 sensor based LVDS camera with Maxim serializer that connects to the MAX9286S32V234 de-serializer with a coaxial cable with FAKRA connector. Cables NOT included.
- MAX9286S32V234 / MAX9286S32V234DB#: MIPI based de-serializer for up to Quad camera input on both S32V boards. Camera cables with FAKRA connectors NOT included.
- MAXCAMOV10640#: OmniVision 10640 sensor based LVDS camera with Maxim serializer that connects to the MAX9286S32V234 de-serializer with a coaxial cable with FAKRA connector. Cables NOT included.
購入オプション
-

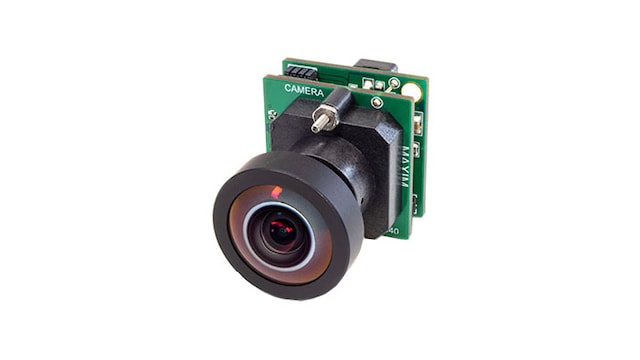

MXOV10635-S32V
アクティブ -
OV10635 sensor based LVDS camera with Maxim serializer. Connects by cable to MAX9286S32V234, coaxial cable not included.
-

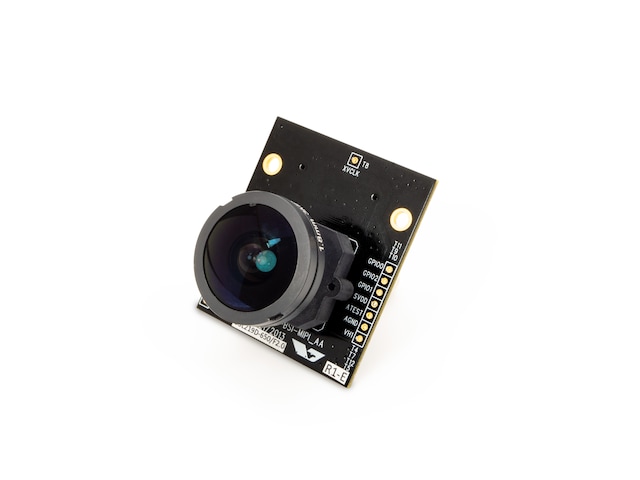

OV10640CSP-S32V
アクティブ -
MIPI camera with OV10640 sensor. Connects directly with MIPI ports of the SBC-S32V234 and S32V234-EVB2.
-

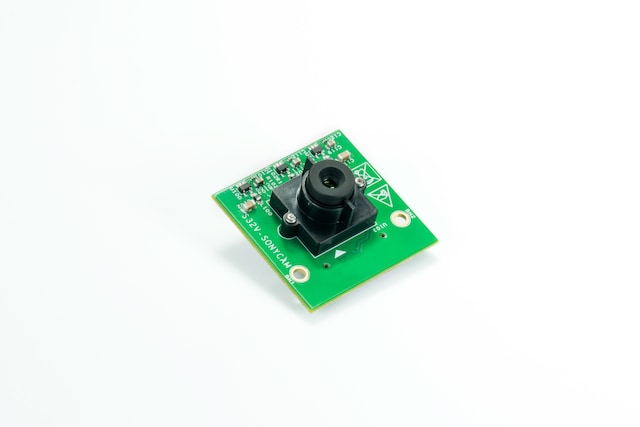

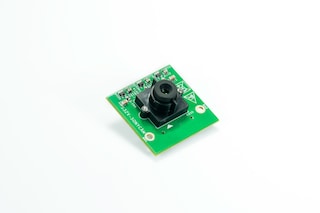

S32V-SONYCAM
アクティブ -
MIPI camera with Sony IMX224 sensor. Connects directly with MIPI ports of the SBC-S32V234 and S32V234-EVB2.
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
2 設計・ファイル
-
プリント基板と回路図
MAX9286S32V234 Schematic
-
プリント基板と回路図
S32V-SONYCAM Schematic
