MPC5510KIT208
アクティブ -
Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP208 daughter card.
Evaluation Kit for NXP’s MPC5510 Family

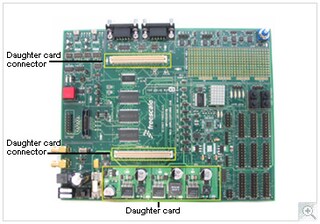

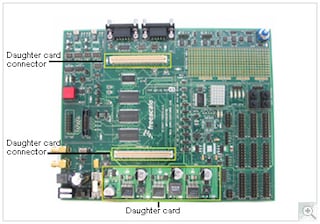

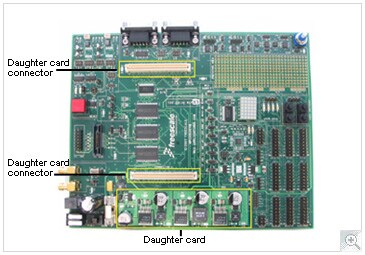

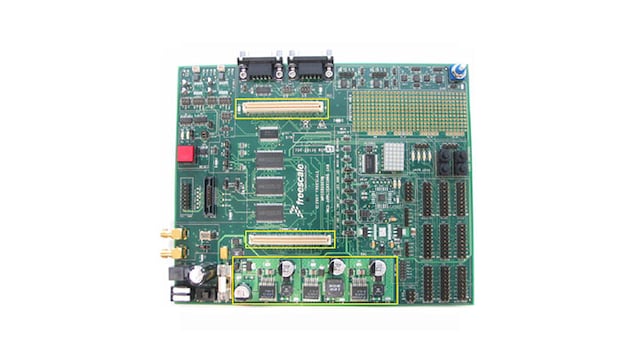

The MPC5510KIT is an evaluation system supporting NXP® MPC5510 microcontrollers. It consists of an evaluation board MPC5510EVB and daughter cards for either 144LQFP or 208MAPBGA versions which plug into the evaluation board. The evaluation system allows full debug access to the MCU through a Nexus connector. The kit comes with 2 samples of the respective package, an install CD, a permanent CodeWarrior® compiler license, a P&E MULTILINK hardware interface and ICDPPCNEXUS in-circuit debugger. The software licenses are limited to 128KB code size.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
MPC55xx MCU
- MPC5510: 32-bit MCU for Body Electronics Applications
Features
MPC5510ADAP Daughter Cards:
- MPC5510ADAP208 socketed adapter to program and debug 208MAPBGA devices
- MPC5510ADAP144 socketed adapter to program and debug 144 LQFP devices
MPC5510EVB Mother Board:
- 14-pin JTAG/ONCE connector
- 38-pin MICTOR Nexus 2+ connector
- External 256KByte of asynchronous SRAM
- High-speed CAN transceiver
- LIN transceiver
- FlexRay transceiver
- 5x7 LED dot matrix
- 12-14 V power supply
- NXP® SBC to power the MCU
購入オプション
-
MPC5510KIT144
アクティブ -
Evaluation Kit for Qorivva MPC5510, Includes MPC5510EVB Motherboard and MPC5510ADAP144 daughter card.
-
MPC5510ADAP208
アクティブ -
Daughter Card for Qorivva MPC5510 MAPBGA 208.
-
MPC5510ADAP176
アクティブ -
Daughter Card for Qorivva MPC5510 LQFP 176.
-
MPC5510ADAP144
アクティブ -
Daughter Card for Qorivva MPC5510 LQFP 144.
