MPC5645S Instrument Cluster Development Board

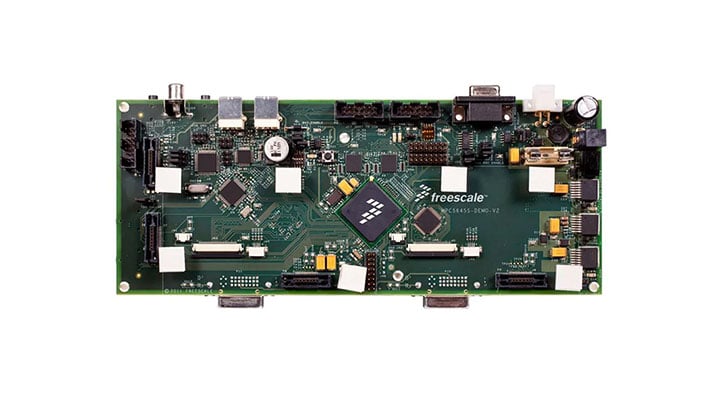

The MPC5645S EVB features the NXP® MPC5645S 32-bit MCU for single-chip automotive instrument cluster applications.
MPC5645S devices are part of the MPC56xxS family of Power Architecture®-based devices. This family has been designed with an emphasis on providing cost-effective and high quality graphics capabilities to satisfy the increasing demand for color thin-film transistor (TFT) displays within the vehicle cockpit. Traditional cluster functions, such as gauge drive, real-time counter, and sound generation are also integrated on each device.
The EVB simplifies the development of applications for the MPC5645S MCU by providing the commonly used external peripherals on a single PCB.
製品詳細
Features
Memory
- 64 MB of serial flash in two 32 MB chips connected in parallel to QuadSPI ports
- 64 MB of mobile LPDDR memory in two 32 MB chips
Connectivity
- General-purpose MICTOR connector for connection of your own panels
- 1 x CAN and 1 x LIN serial interfaces with physical interfaces
Debug
- USB port for connection to UART or SPI interfaces
- Nexus interfaces on MICTOR connector and JTAG connector and embedded USB debug connection
Display
- Connections for 2 x SHARP LQ043T1DG01 touchscreen LCD TFT panels or LQ043T1DG02 LCD TFT panels (DCU and DCULite)
- Two DVI outputs for connection of desktop TFT LCD panels
Audio
- Headphone amplifier and 3.5 mm stereo jacks for sound output from MPC5645S
- Video in port and video ADC supporting composite video connected to the VIU module
