LFVBBJ34QA
アクティブ -
Qorivva MPC5634M 208 PIN 1.0MM PGA Vertical Calibration base board.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List

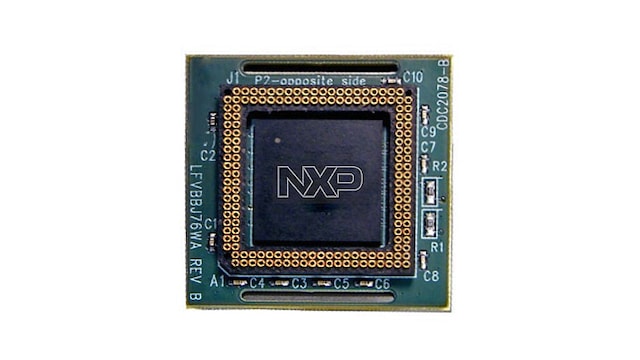

MPC563xM Device and Target Adapters
The VertiCal system enables the use of enhanced calibration and debugging tools for industrial and automotive applications, supporting a wide range of MPC5554 MCUs in different package types.
Based on Power Architecture®, the VertiCal offers production footprints and a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
超高信頼性MPC56xx MCU
- MPC563xM: Ultra-Reliable MPC563xM for Automotive and Industrial Engine Management
Features
- VertiCal system compatible
- Standardized hardware across MPC563 MCUs (using production silicon)
- Up to 422 pins
- Pitch 1.00 mm
- Allows system calibration without impacting standard MCU I/O resources
- Interconnect standard supported by multiple calibration tool developers
- Support for simplified implementation of overlay memory
- Flexibility to support new MCU features for prototyping use
- Uses tried and tested technology
購入オプション
-
LFVBBJ34M2T
アクティブ -
Qorivva MCSP5634M 176 Pin Vertical Calibration base board with TQSocket.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List
-
LFVBBJ34LT
アクティブ -
Qorivva MPC5634M 144 pin 0.5 mm pitch Vertical Calibration base board with TQSocket.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List
-
LFVBBJ33LT
アクティブ -
Qorivva MPC5633M 144 pin 0.5 mm pitch Vertical Calibration base board with TQSocket.
Kit Contains:
- Extraction Tool
- Bill of Materials
- Packing List
