Real Time Control Embedded Software Motor Control and Power Conversion Libraries

RTCESL

画像にカーソルを合わせると拡大表示されます。

This NXP real-time control embedded software libraries – RTCESL (former Freescale embedded software libraries – FSLESL) is a group of algorithms ranging from basic mathematics operations to advanced transformations and observers, which can be easily incorporated into complex real-time control applications, and used in our motor control reference designs. The algorithms help to speed development and ease of use in applications that require intensive math computation and control such as advanced high-efficiency motor control and power conversion.

The libraries are highly optimized, tested on our hardware and are easy to use as they are implemented with a C-callable function interface. If the device has a hardware accelerators for specific calculations like Memory-Mapped Divide and Square Root Module (MMDVSQ) in some Cortex® M0+ core based devices or PowerQuad (PQ) hardware accelerator in some Cortex® M33 core based devices the RTCESL can process some algorithms using such hardware accelerators to provide quicker calculations. The functions have been tested against NXP's reference models in MATLAB.

The libraries are currently available for the Kinetis® Arm® Cortex® M0+, M4, M7, M33 and DSCs with the DSP56800E(X) core, with the introduction of a universal API across all our libraries we have made available a tool to the help convert your API's. To quickly move from the API that you used in either FSLESL 3.0 or MMCLIB to the new universal API used in latest RTCESL release use API Translator. This simple tool will help migrate your code by converting your old API to the new version. Available now in the Downloads tab.

図

図を選択する。:

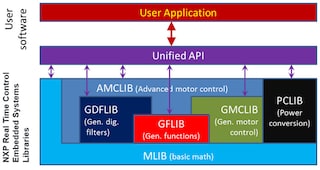

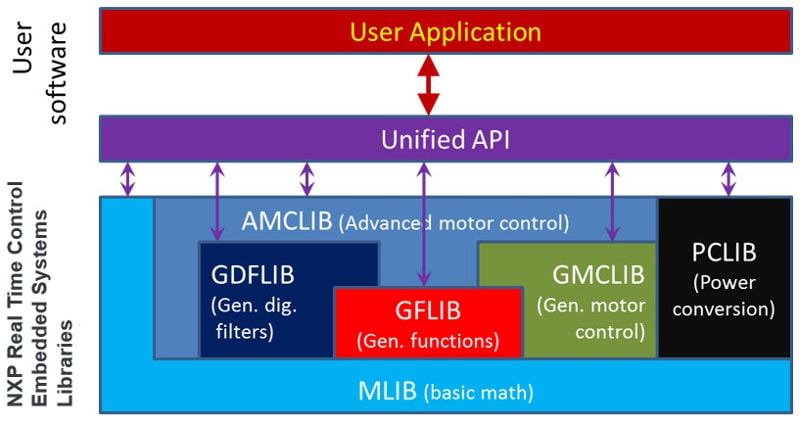

Embedded Software and Motor Control Libraries Block Diagram

Embedded Software and Motor Control Libraries Block Diagram

RTCESL-BD

*
図を取得する PDF

Features

  • Math Library (MLIB): Simple math functions (addition, subtraction, multiplication, division, shifts...) with and without saturation. This aim of this block is to have efficient and fast mathematics built on the MCU’s instructions.
  • General Function Library (GFLIB): Contains the basic building blocks of a real-time control application. Functions for basic mathematical calculations, trigonometric functions, simple look-up table and control functions such as PI and PID controllers.

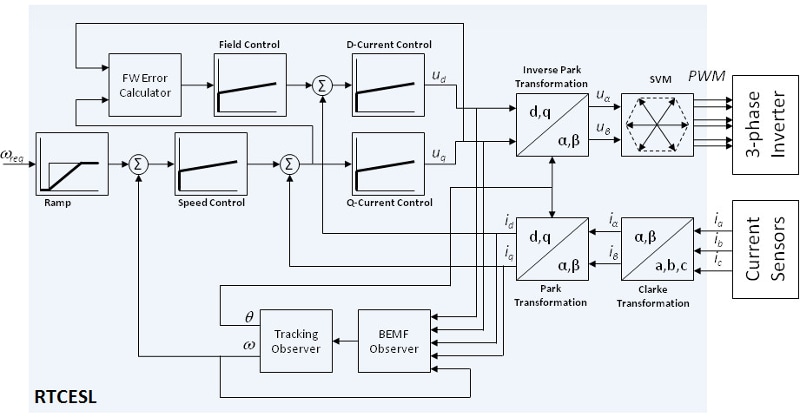

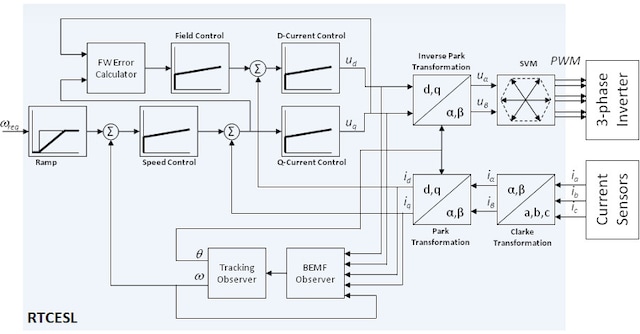

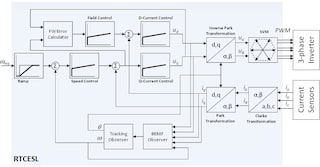

  • General Motor Control Library (GMCLIB): The fundamental blocks of a motor control application. The libraries include vector modulation, Park and Clarke transformations and specific motor-related functions to build digitally controlled motor drives.
  • General Digital Filter Library (GDFLIB): Includes filter functions for signal conditioning.
  • Advanced Motor Control Library (AMCLIB): Functions that enable the construction of a variable speed, AC motor drive system that implements field oriented control techniques without position or speed sensors to provide the lowest cost solution.
  • Power Conversion Library (PCLIB): Contains control loop algorithms required in power conversion applications such as PI, PID and PID with low pass filter controller, 2P-2Z and 3P-3Z controller algorithms.
  • Supported Cores:
    • Arm® Cortex®-M0+
    • Arm® Cortex®-M4
    • Arm® Cortex®-M7
    • Arm® Cortex®-M33
    • DSP56800E
    • DSP56800EX
    • DSP56800EF
  • Many basic math, filter and motor control related functions
  • Written in assembler
  • Optimized for speed and size
  • Supplied as binary files
  • Easy to link to the project

対応製品

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4
  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4
  • KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7
  • MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
  • MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD
  • S12ZVMB: Mixed-Signal MCU for Automotive and Industrial Motor Control Applications
  • LPC80X: LPC800：32ビットArm® Cortex®-M0+ベースの低コストMCU
  • LPC55S6x: High Efficiency Arm® Cortex®-M33-Based Microcontroller Family
  • i.MX-RT1020: i.MX RT1020：Arm® Cortex®-M7搭載クロスオーバーMCU
  • i.MX-RT1050: i.MX RT1050 Arm® Cortex®-M7コア搭載クロスオーバーMCU
  • i.MX-RT1060: i.MX RT1060：Arm® Cortex®-M7搭載クロスオーバーMCU
  • i.MX-RT1170: i.MX RT1170：Arm® Cortex®コア搭載1 GHzクロスオーバーMCU
