車載/産業用モータ制御アプリケーション向けミックスド・シグナルMCU

S12ZVMB アクティブ
S12 MagniV Microcontrollers for Automotive Applications

動画の上をクリックすると再生されます。

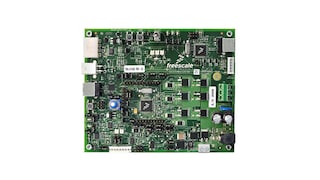

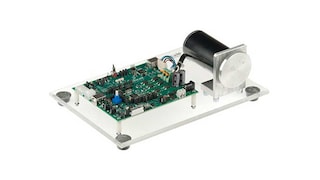

S12ZVMB MCUファミリは、統合性とスケーラビリティを兼ね備えた車載用DCモータ制御アプリケーションを実現します。LIN-PHY、12V-Vreg、およびHブリッジ・ゲート・ドライバが統合されているため、ウィンドウ・リフタ、サンルーフ、またはパワートレイン・アクチュエータ向けの非常にコンパクトなソリューションを構築できます。

ブロック図

図を選択する。:

S12ZVMB

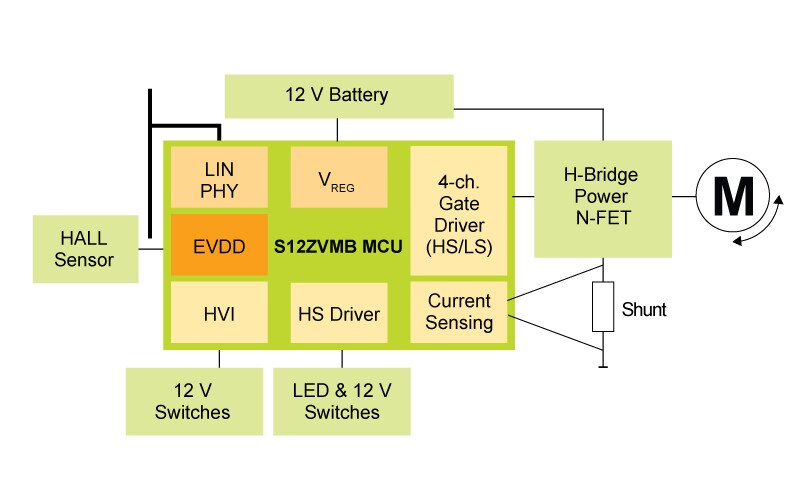

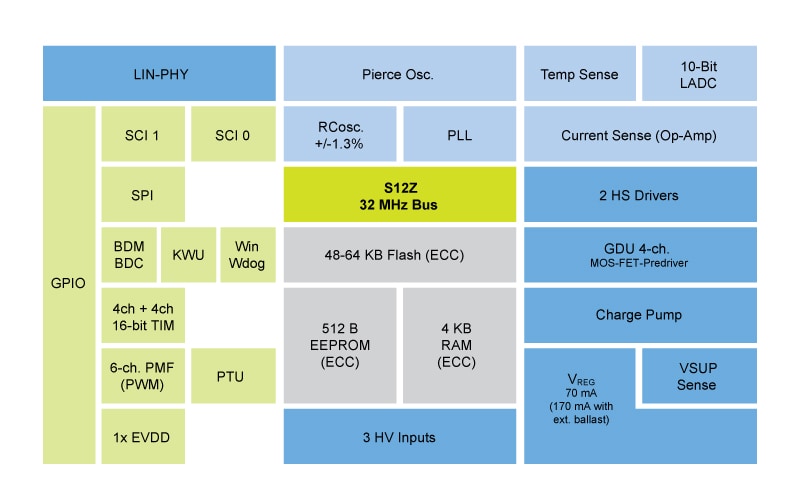

S12ZVMB Block Diagram

S12ZVMBデバイスの画像

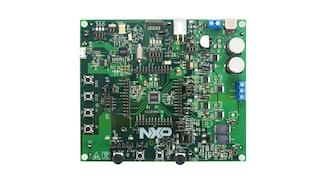

S12ZVMB Device Image
図を取得する PDF

特長

  • 32 MHzのバス・スピードで動作するS12Zコア
  • 最大64 KBのフラッシュ
  • 512BのEEPROM
  • 最大4 KBのRAM
  • LIN物理層
  • 12V電圧レギュレータ
  • HブリッジMOSFETゲート・ドライバ (4ch)
  • ハイサイド・ドライバ x 2
  • 高電圧入力 x 3
  • 電流検知用オペアンプ
  • 長期製品供給プログラム対象（15年）
  • 超高信頼性

購入/パラメータ

4 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

コア・タイプ

動作周波数[最大](MHz)

RAM (kB)

EEPROM (KB)

PHY

汎用I/O

CAN

Number of LIN Channels

S912ZVMBA4F0VLH

アクティブ

LQFP64

64

1K @ US$2.78

S12Z

32

4

512

CAN, LIN

24

1

1

S912ZVMBA6F0MLF

アクティブ

LQFP48

48

1K @ US$2.91

S12Z

32

4

512

CAN, LIN

15

1

1

S912ZVMBA6F0VLF

アクティブ

LQFP48

48

1K @ US$2.77

S12Z

32

4

512

CAN, LIN

15

1

1

S912ZVMBA6F0WLF

アクティブ

LQFP48

48

1K @ US$3.19

S12Z

32

4

512

CAN, LIN

15

1

1
