ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

MCF548X
NRND
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The MCF548X ColdFire® microprocessors are based on the ColdFire V4e core and feature multiple connectivity peripherals including Ethernet, CAN, PCI and other serial interfaces. Additionally, they offer an encryption accelerator for secure communications in network connected control applications. The MCF548x family is pin-compatible with the MCF547x family of microprocessors offering scalability and flexibility for designs that evolve over time.

製品詳細

ブロック図

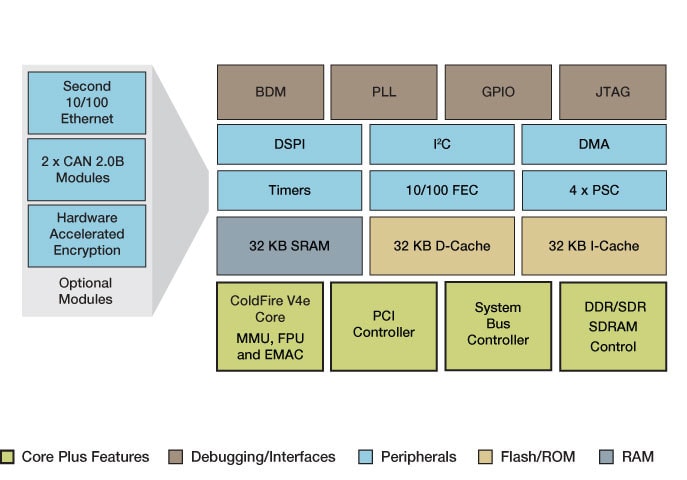

ColdFire MCF548X Microprocessor Block Diagram

ColdFire MCF548X Microprocessor Block Diagram
図を取得する PDF

Features

  • ColdFire® V4e core delivering up to 308 (Dhrystone 2.1) MIPS @ 200 MHz
  • Memory management unit (MMU)
  • Dual precision floating point (FPU)
  • Enhaced multiply-accumulate (eMAC) module handles DSP-like instructions
  • 32 KB I-cache
  • 32 KB D-cache
  • 32 KB on-chip system SRAM
  • 32-bit 133 MHz DDR/SDR-SDRAM controller
  • Connectivity:
    • 10/100 fast ethernet controller (FEC)
    • CAN 2.0B
    • PCI Interface V2.2; 33/66 MHz; five external leaders
    • Serial peripheral interface with direct memory access (DMA) capability
    • I²C interface
    • 16-channel DMA controller
  • Security:
    • Hardware-acceleration encryption (DES, 3DES, RC4, AES, MD5, SHA-1, RNG)
  • 388 PBGA package
