Tracelink - Advance Trace Capture

TRACELINK アクティブ

画像にカーソルを合わせると拡大表示されます。

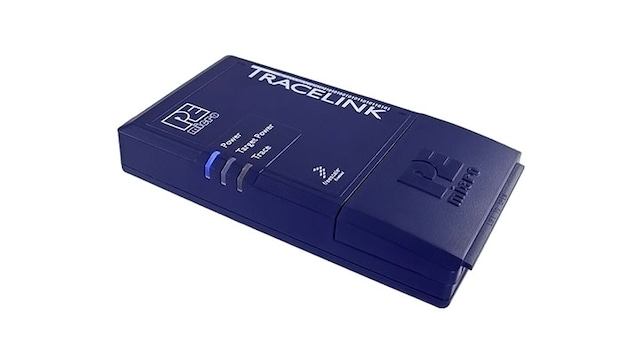

P&E’s Tracelink is an affordable, high-speed development interface which can capture up to 128 MB of external trace on Kinetis® and ColdFire® V2-4 MCUs.

The Tracelink communicates to the processor through a ribbon cable connection from the Tracelink to the debug header of the target board. The included ribbon cables can be changed to match the desired NXP® processor

Tracelink has the ability to capture real-time trace information from the target processor, invaluable for debugging applications where traditional methods are impractical. The Tracelink allows you to spend more time finding and fixing bugs, which ultimately shortens development cycles and time to market.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

K1xメインストリーム

  • K10_100: Kinetis® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_120: Kinetis® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_72: Kinetis® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K11_50: Kinetis® K11-50 MHz, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K12_50: Kinetis® K12-50 MHz, Microcontrollers (MCUs) with Optimized Features based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_100: Kinetis® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on ARM® Cortex®-M4 Core
  • K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_50: Kinetis® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K20_72: Kinetis® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K21_120: Kinetis K21-120 MHZ, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4
  • K21_50: Kinetis® K21-50 MHz, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core
  • K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_50: Kinetis® K22-50 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K3xセグメントLCD

  • K30_100: Kinetis® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K30_72: Kinetis K30-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K4x USBおよびセグメントLCD

  • K40_100: Kinetis® K40-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K40_72: Kinetis® K40-72 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

K5x 測定

  • K50_100: Kinetis® K50-100 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K50_72: Kinetis® K50-72 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K51_100: Kinetis® K51-100 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K51_72: Kinetis® K51-72 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K53_100: Kinetis® K53-100 MHz, USB, Segment LCD, Ethernet Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K6xイーサネット

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

K7xグラフィックLCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

KLシリーズ Arm Cortex-M0+

  • KL0x: Kinetis® KL0x-48 MHz, Entry-Level Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL3x: Kinetis® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KMシリーズCortex-M0+

  • KM1x: 50 MHz, Mainstream Precision Metrology Microcontrollers based on Arm® Cortex®-M0+
  • KM3x: 50–75 MHz Precision Metrology MCUs with Segment LCDs Based on Arm® Cortex®-M0+

ColdFire® V2 Processors

  • MCF5206E: Integrated ColdFire® Microprocessor with DMA
  • MCF520X: Integrated ColdFire® V2 External Memory and Ethernet Microprocessors
  • MCF5227X: V2マイクロプロセッサ（タッチスクリーン、LCDコントローラ、USB機能搭載）
  • MCF523X: Integrated V2 ColdFire® Microprocessor
  • MCF525X: Integrated ColdFire® V2 Microprocessor
  • MCF527X: ColdFire® V2統合型マイクロプロセッサ
  • SCF5250: Integrated ColdFire® V2 Microprocessor

ColdFire® V3 Processors

  • MCF5301x: Low-Power MPU with dual Ethernet, USB, and audio sub-system
  • MCF530X: Integrated ColdFire® V3 Microprocessor
  • MCF532X: ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN
  • MCF537X: Coldfire V3 Microprocessor with Ethernet, USB and Encryption

ColdFire® V4 Processors

  • MCF540X: Integrated ColdFire® V4 Microprocessor
  • MCF5441X: 32ビット・マイクロプロセッサ
  • MCF5445X: 32ビット・マイクロプロセッサ（USB On-The-Go、イーサネット、PCI、DDR2/DDRコントローラ、暗号化機能搭載）
  • MCF547X: ColdFire® V4 Microprocessor with Ethernet and Encryption
  • MCF548X: ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

ワイヤレス・コネクティビティ

Sub-GHz ISMバンド

  • KW0x: Kinetis® KW0x-48 MHz, Sub-1 GHz Wireless Radio Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Thread

  • KW2xD: Kinetis® KW2xD-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M4 Core

もっと見る

Features

Microcontroller

  • External trace capture
  • Fast performance
  • 128 MB buffer

Connectivity

  • Ethernet or high-speed USB 2.0 communications

Power Management

  • Can provide power to target
  • Multivoltage support for targets ranging from 1.6 to 5.25 volts

Components

  • Includes ribbon cables for all supported NXP® MCUs
  • Note: The accompanying software includes all necessary drivers and configuration utilities needed for the Trace link.

購入オプション

TRACELINK-Image

クリックして展開

  • TRACELINK
    アクティブ

  • P&E Debug/Trace Capture Interface.

  • の数量に対して 1
代理店からの注文
N true 0 TSPTRACELINKja 2 ユーザ・ガイド User Guide t792 2 ja 2 1 1.00 English The Tracelink is designed to help developers find and diagnose software bugs quickly and efficiently. While a microcontroller is running, the Tracelink is constantly recording trace information into its internal memory buffer, which can later be used by supporting software to provide program flow charts and profiling statistics. 1359479358879702686060 TSP 2.2 MB None None documents Y None 1359479358879702686060 /docs/en/user-guide/TRACELINKUM.pdf 2245869 /docs/en/user-guide/TRACELINKUM.pdf TRACELINKUM N N 2013-01-31 Tracelink - UserManual /docs/en/user-guide/TRACELINKUM.pdf /docs/en/user-guide/TRACELINKUM.pdf User Guide N Y 132339537837198660 2022-12-07 pdf N en Aug 1, 2012 User Guide t792 ユーザ・ガイド User Guide Y N Tracelink - UserManual 2 1 English P&E’s Tracelink is an affordable, high-speed development interface which can capture up to 128 MB of external trace on Kinetis and ColdFire V2-4 MCUs. 1359479362482720949727 TSP 786.2 KB None None documents Y None 1359479362482720949727 /docs/en/user-guide/TRACELINKQSG.pdf 786181 /docs/en/user-guide/TRACELINKQSG.pdf TRACELINKQSG N N 2013-01-31 Tracelink - Quick Start Guide /docs/en/user-guide/TRACELINKQSG.pdf /docs/en/user-guide/TRACELINKQSG.pdf User Guide N Y 132339537837198660 2023-06-18 pdf N en Jan 29, 2013 User Guide t792 ユーザ・ガイド User Guide Y N Tracelink - Quick Start Guide false ja 0 false ja false 0 TRACELINK downloads ja true 0 Y TSP ユーザ・ガイド 2 /docs/en/user-guide/TRACELINKUM.pdf 2013-01-31 1359479358879702686060 TSP 1 Aug 1, 2012 User Guide ユーザ・ガイド The Tracelink is designed to help developers find and diagnose software bugs quickly and efficiently. While a microcontroller is running, the Tracelink is constantly recording trace information into its internal memory buffer, which can later be used by supporting software to provide program flow charts and profiling statistics. Y None /docs/en/user-guide/TRACELINKUM.pdf English 2245869 None User Guide 2022-12-07 N /docs/en/user-guide/TRACELINKUM.pdf Tracelink - UserManual /docs/en/user-guide/TRACELINKUM.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.00 N N Tracelink - UserManual 2.2 MB TRACELINKUM N 1359479358879702686060 /docs/en/user-guide/TRACELINKQSG.pdf 2013-01-31 1359479362482720949727 TSP 2 Jan 29, 2013 User Guide ユーザ・ガイド P&E’s Tracelink is an affordable, high-speed development interface which can capture up to 128 MB of external trace on Kinetis and ColdFire V2-4 MCUs. Y None /docs/en/user-guide/TRACELINKQSG.pdf English 786181 None User Guide 2023-06-18 N /docs/en/user-guide/TRACELINKQSG.pdf Tracelink - Quick Start Guide /docs/en/user-guide/TRACELINKQSG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1 N N Tracelink - Quick Start Guide 786.2 KB TRACELINKQSG N 1359479362482720949727 true Y Tools
