MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

MPC5775B-E アクティブ

画像にカーソルを合わせると拡大表示されます。

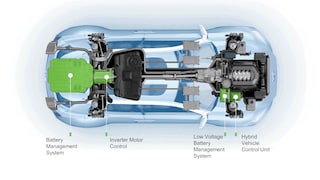

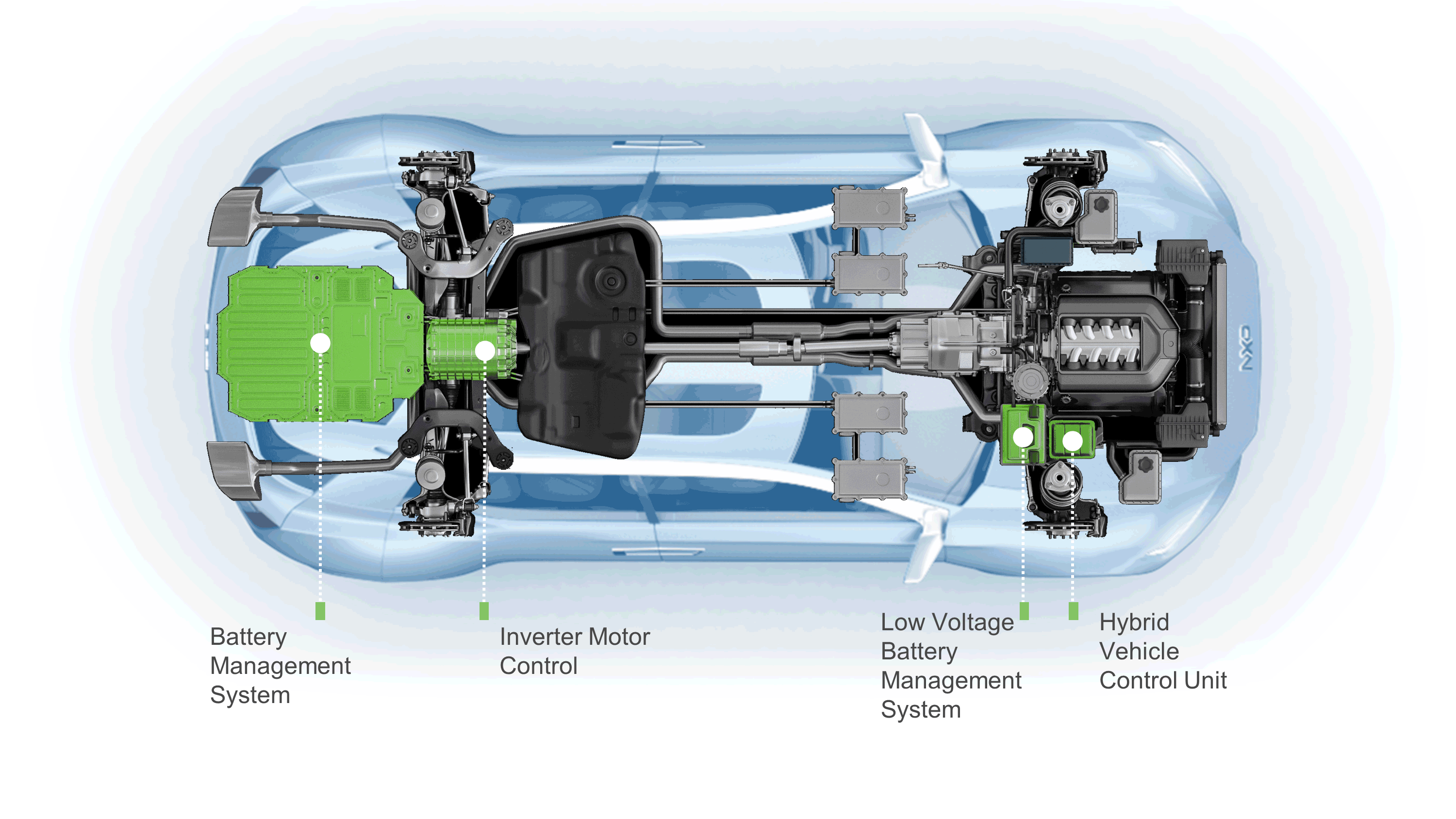

The MPC5775B and MPC5775E microcontrollers target automotive and industrial battery management and inverter applications that require advanced performance, security, and ASIL D support.

These MCUs are compatible with the MPC5777C device and offer customers an optimized feature set for the targeted applications. The MPC5775B and MPC5775E provide an ideal migration path for customers using MPC5xx, MPC55xx, MPC5644A and MPC5674F with eTPU timer and similar pin count options.

ブロック図

図を選択する。:

MPC5775B and MPC5775E

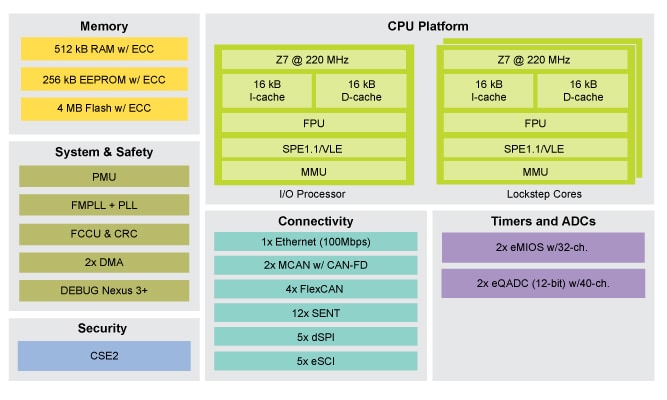

MPC5775B Block Diagram

MPC5775E-EVB development board architecture

MPC5775E-EVB development board architecture
図を取得する PDF

Features

General

  • 2 x Power Architecture z7 cores with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCUs
  • 1 x z7 core in lockstep with one of the main cores, with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCU
  • 4 MB Flash, 512 KB SRAM
  • CSE hardware security module that supports SHE protocol specification and AES-128 encryption
  • 10/100Mbps Ethernet module
  • 2 x CAN FD modules and 4 x FlexCAN modules
  • 3 x eTPU2 timer modules on MPC5775E MCU
  • 4 x Sigma Delta modules on MPC5775E MCU
  • Up to 70 ch eQADC and 32 ch eMIOS

購入/パラメータ

2 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

Flash (kB)

RAM (kB)

コア：コア数 - 仕様

動作周波数[最大](MHz)

安全保障機能安全

総DMAチャネル数

CAN

I2C

SPI

Ambient Operating Temperature (Min to Max) (℃)

電源電圧 [最大] (V)

電源電圧 [最小] (V)

汎用I/O

SPC5775BDK3MME2
データ・シート

アクティブ

BGA416

416

10K @ US$18.71

4000

512

3

220

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293

SPC5775EDK3MME3
データ・シート

アクティブ

BGA416

416

10K @ US$20.87

4000

512

3

264

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293
