MPC5775B/E low-cost BMS and Inverter Development Board

MPC5775B-E-EVB

画像にカーソルを合わせると拡大表示されます。

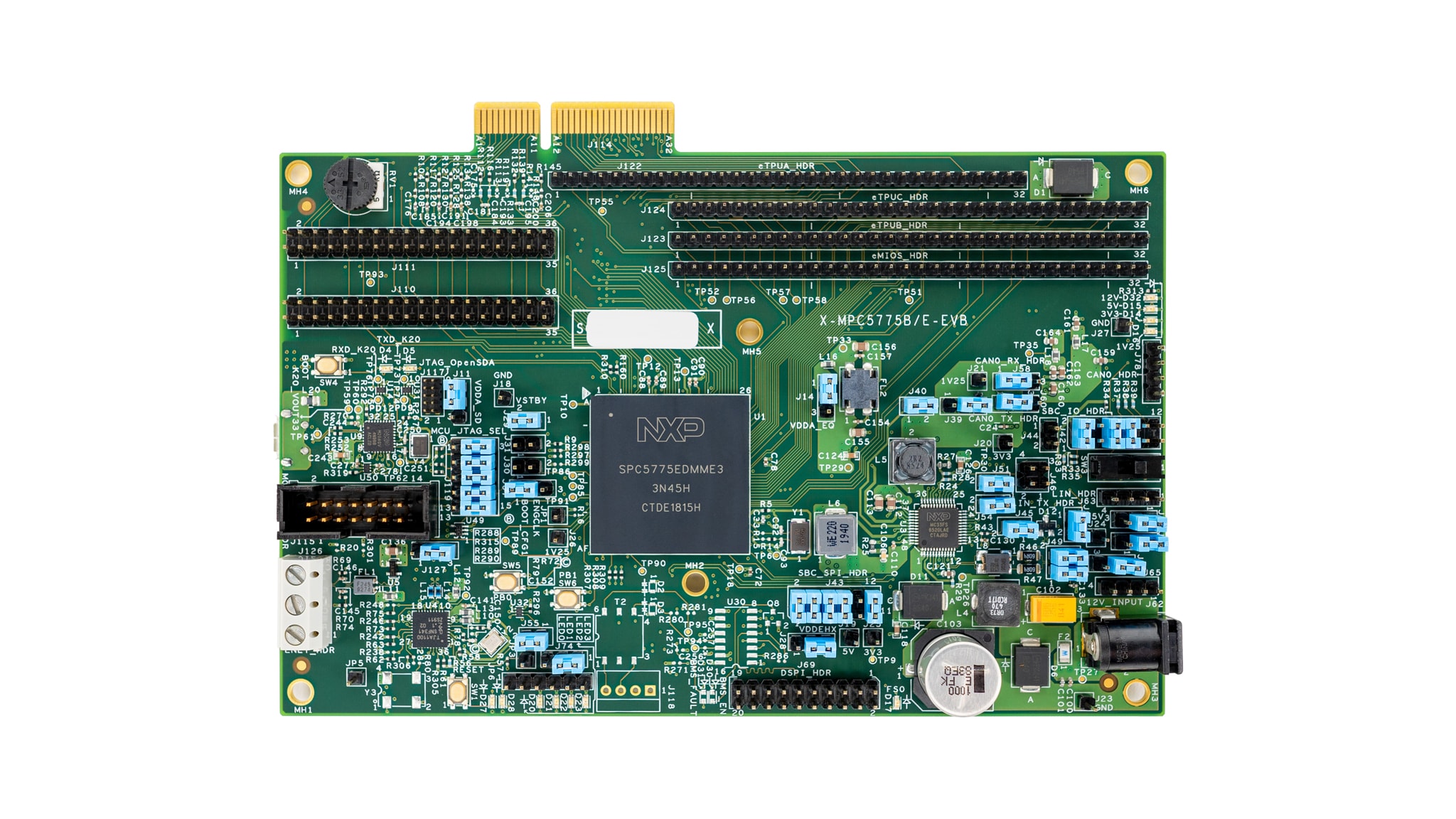

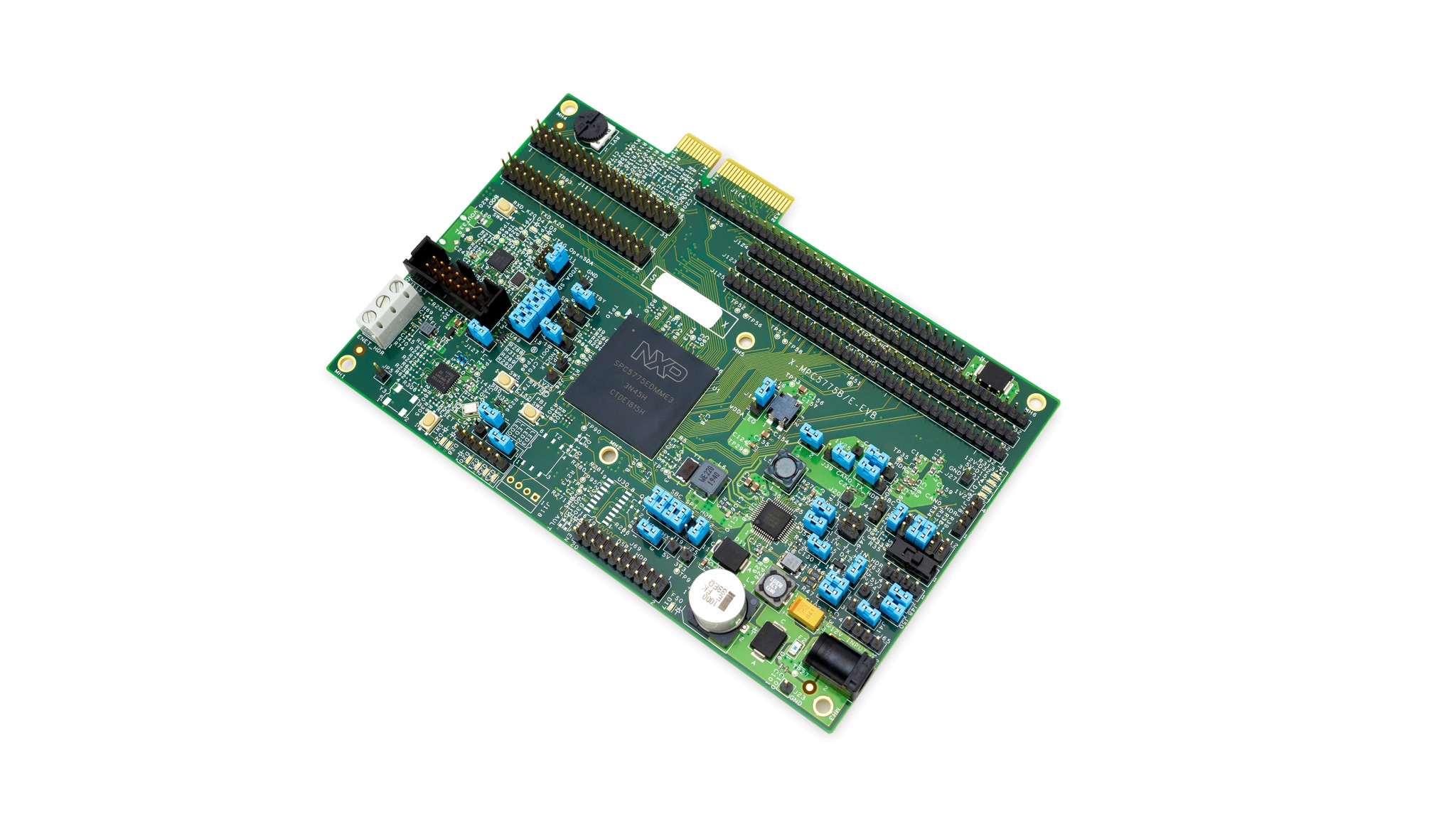

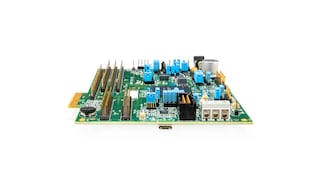

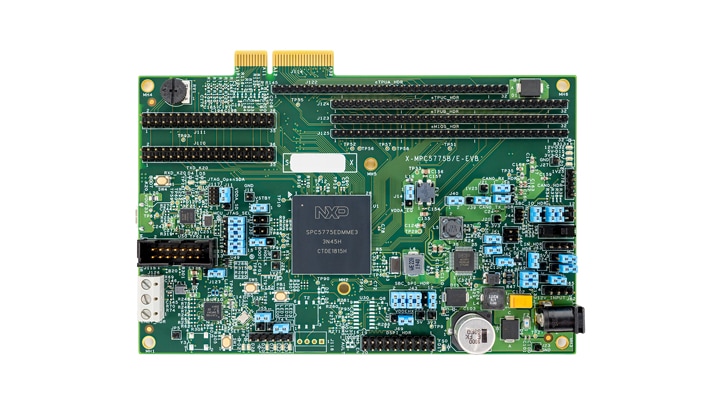

The MPC5775B-EVB and MPC5775E-EVB are low-cost development boards engineered for battery management and inverter applications.
Based on the 32-bit Power Architecture® MPC5775B/E ultra-reliable microcontrollers and the MC3377x battery cell controller, the MPC5775B/E-EVBs are highly-integrated development boards that help speed development.

ブロック図

図を選択する。:

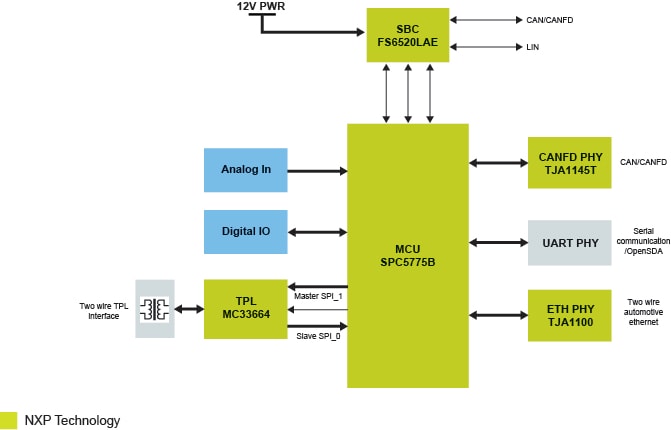

MPC5775B-EVB development board architecture

MPC5775B-EVB development board architecture

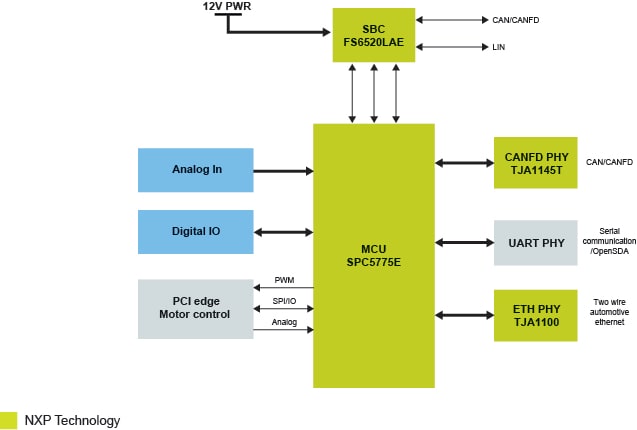

MPC5775E-EVB development board architecture

MPC5775E-EVB development board architecture
図を取得する PDF

対応製品

インターフェース

3.3 V/5 V IO CANトランシーバ

  • TJA1145: High-Speed CAN Transceiver for Partial Networking

車載用イーサネットPHY

  • TJA1100: TJA1100、IEEE 100BASE-T1準拠、車載用イーサネットPHYトランシーバ

パワーマネージメント

バッテリー通信用IC

  • MC33664: Isolated Network High-Speed Transceiver

セーフティSBC

  • FS6500: CAN FDトランシーバを備えたグレード1およびグレード0のセーフティ電源システム・ベーシス・チップ

プロセッサ＆マイクロコントローラ

超高信頼性MPC57xx MCU

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Features

Microcontroller (MCU)

  • 32-bit Power Architecture®MPC5775B/E ultra-reliable microcontrollers

System Basis Chip (SBC)

  • FS6500: Grade 1 and Grade 0 safety power system basis chip with CAN flexible data transceiver

Transceivers

  • TJA1145: High-speed CAN transceiver for partial networking
  • TJA1100HN: IEEE 100BASE-T1 compliant Automotive Ethernet PHY Transceiver
  • MC33664: Isolated Network High-Speed Transceiver (MPC5775B-EVB only)

Interfaces

  • Onboard interfaces for CAN and LIN
  • Onboard interfaces for Ethernet, USB, UART, DSPI
  • Onboard interfaces for eMIOS, ADC, DSPI, and eTPU (MPC5775E-EVB only)

Connectors

  • PCIe X4 style edge connector for motor control interfaces
  • Debug selectable between external debug connection via JTAG or on-board OpenSDA (JTAG to USB interface)

Power

  • Requires 12V external DC power supply (included with boards)

購入オプション

MPC5775B-EVB-Image

クリックして展開

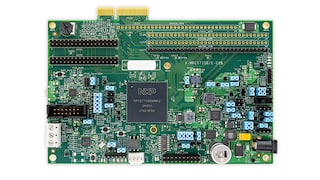

  • MPC5775B-EVB
    アクティブ

  • MPC5775B/E low-cost BMS and Inverter Development Board.

  • $279.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
MPC5775E-EVB-Image

クリックして展開

  • MPC5775E-EVB
    アクティブ

  • MPC5775B/E low-cost BMS and Inverter Development Board.

  • $275.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
