BATT-14EXTENDER
アクティブ -

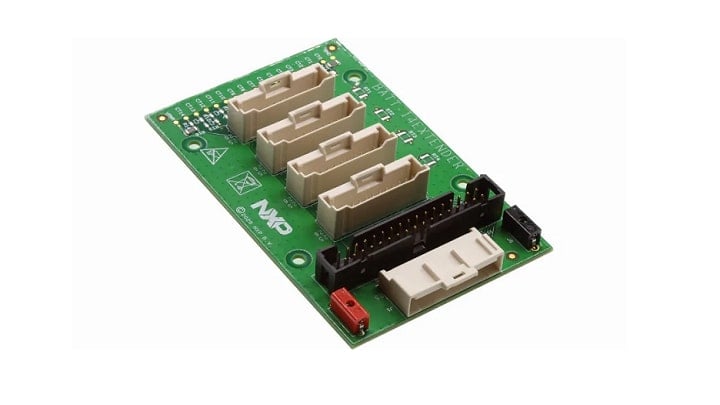

Battery Emulator Extender.
- 1 BATT-14EXTENDER board
- 1 cable to connect the board to BATT-14CEMULATOR
Related Hardware
クイック・リファレンス ボードタイプ.
Battery Emulator Extender
The BATT-14EXTENDER allows for the connection up to four evaluation boards using only one single battery emulator. Alternatively to the battery emulator, a divider bridge can be used to power up the EVB with an external lab power supply.
製品詳細
Features
Supported Evaluation Boards
- RD33771CDSTEVB
- FRDM33771CSPEVB
- RD33775ADSTEVB
Supported Battery Emulators
Required Equipment
- 14-cell battery pack or a battery pack emulator, such as BATT-14CEMULATOR, BATT-14EMULATOR or BATT-14AAAPACK
- External power supply 10 to 60 V – 0.5 A (optional)
- Up to four BCC evaluation boards (EVBs)
購入オプション
-
BATT-14CTCABLE25
アクティブ -
Cell Terminal (CT) cable, 14 cells, 25 cm-long.
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
2 設計・ファイル
-
プリント基板と回路図
BATT-14EXTENDER Schematics
-
Design Tool
BATT-14EXTENDER design files
