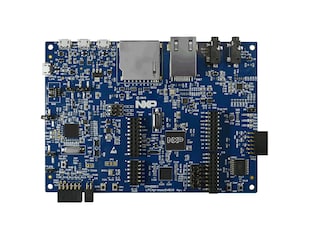

LPCXpresso54018 Development Board

OM40003 アクティブ

画像にカーソルを合わせると拡大表示されます。

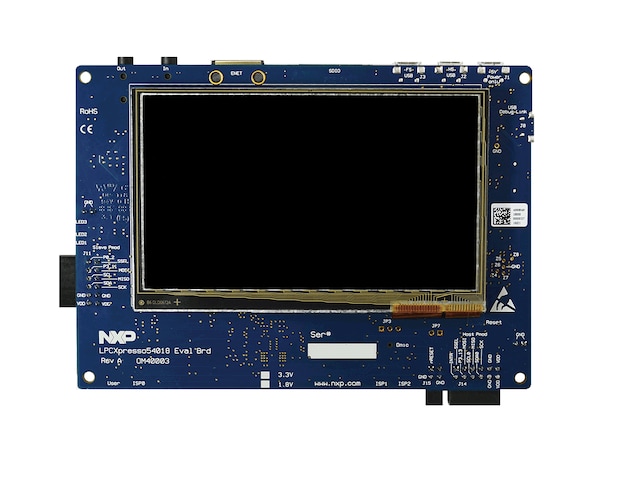

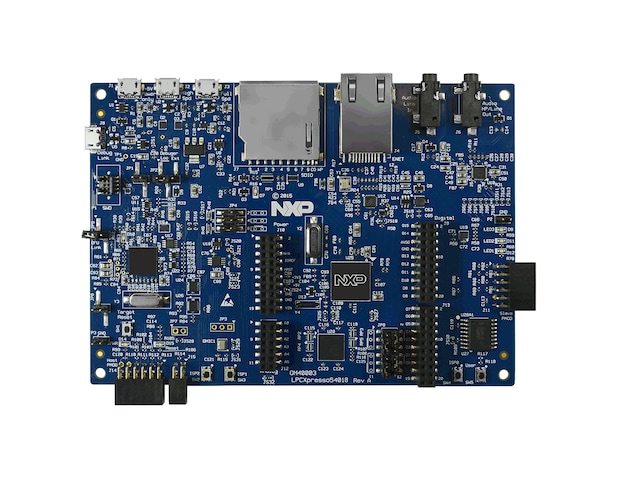

The board is comprised of target LPC54018 device with an on-board, CMSIS-DAP / SEGGER® J-Link compatible debug probe. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil™ and IAR®. The board is also equipped with a standard 10-pin header enabling the use of 3rd party debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC540xx devices.

MCUXpresso configuration tools and extensive SDK drivers/examples are available for the board at mcuxpresso.nxp.com.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

LPC54000 Cortex-M4

  • LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core

インターフェース

USBインターフェース

Features

Debug

  • Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • UART and SPI port bridging from LPC54018 target to USB via the onboard debug probe
  • Support for external debug probe

Memory

  • Winbond 128 Mb W25Q128JVFIM Quad-SPI flash
  • Winbond 128 Mb W9812G6JB-6I SDRAM

Connectivity

  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100 Mbit/s Ethernet (RJ45 connector)
  • Multiple Expansion options, including Arduino® UNO and PMod

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with line in/out

Sensor

  • NXP MMA8652FCR1 accelerometer

Power Management

  • Built-in power consumption measurement for target LPC54018 MCU

User Components

  • 3 x user LEDs
  • Plus Reset
  • ISP (3)
  • User buttons

購入オプション

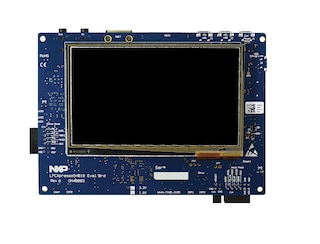

OM40003-Image

クリックして展開

  • OM40003
    アクティブ

  • LPCXpresso54018 Development Board.

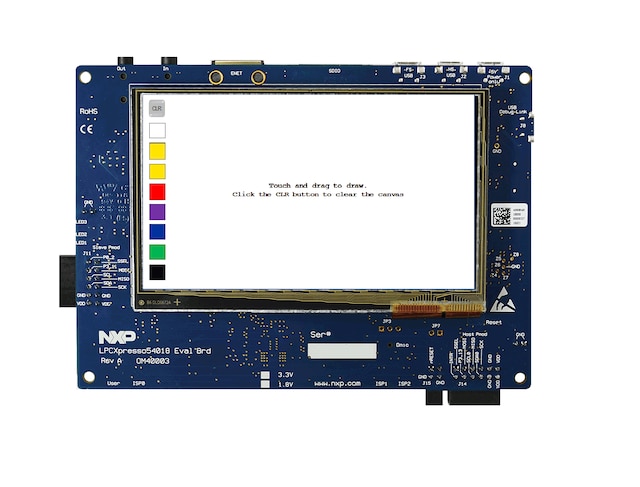

    • 1x LPCXpresso54018 Development Board, pre-loaded with demonstration program showing emWIN example.
  • の数量に対して 1
代理店からの注文
