TEA2017 PFC + LLC Resonant Power Supply Development Kit

TEA2017DK1003

画像にカーソルを合わせると拡大表示されます。

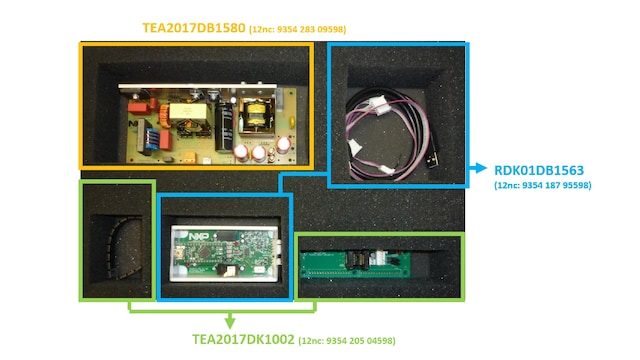

The TEA2017DK1003 demo kit combines the RDK01DB1563, TEA2017DK1002 and TEA2017DB1580 demo kits in a single box. The TEA2017AAT is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency or DCM/QR/CCM (multimode) which supports all operation modes to optimize the PFC efficiency. The TEA2017AAT enables building a complete resonant power supply which is easy to design and has a very low component count. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

対応製品

パワーマネージメント

PFC内蔵AC-DCコントローラ

  • TEA2017: デジタル・コンフィギュラブルLLCおよびマルチモードPFCコントローラ
  • TEA6017AT: デジタル・コンフィギュラブルLLC＆マルチモードPFCコントローラ

セカンダリ・サイド・コントローラ

  • TEA2095: GreenChip Dual LLC SR Switching Controller

Features

Key Features

  • Output 12 V/20 A
  • Input voltage range 90 V-264 V
  • DCM/QR/CCM fixed frequency mode PFC controller
  • Excellent PF and THD performance
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • Digital configurable
  • Synchronous rectifier at secondary side

Green Features

  • No-load power < 100 mW
  • High efficiency from low load to high load

Protection Features

  • Overpower protection (OPP)
  • Brown-in/brown-out protection
  • Overcurrent protection (OCP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Inrush current protection (ICP)
  • Supply undervoltage protection (UVP)
  • Internal and external overtemperature protection (OTP)
  • Independently configurable levels and timers
  • Many protections can independently be set to be latched, safe restart or latched after several attempts to restart

購入オプション

TEA2017DK1003-Image

クリックして展開

  • TEA2017DK1003
    アクティブ

  • TEA2017 PFC + LLC Resonant Power Supply Development Kit.

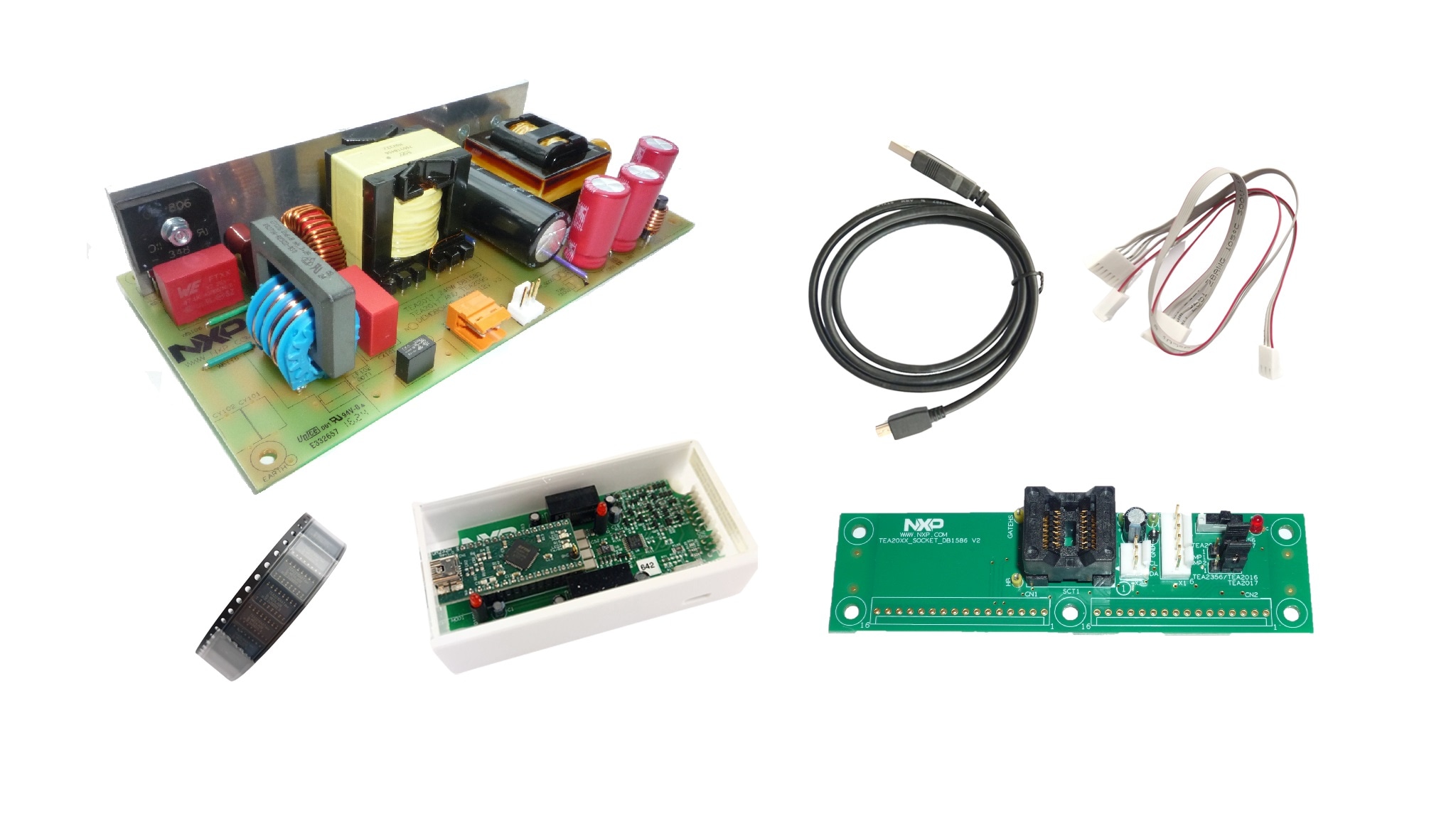

  • Kit contains:

    • TEA2017DB1580 240 W 12 V 20 A demo board

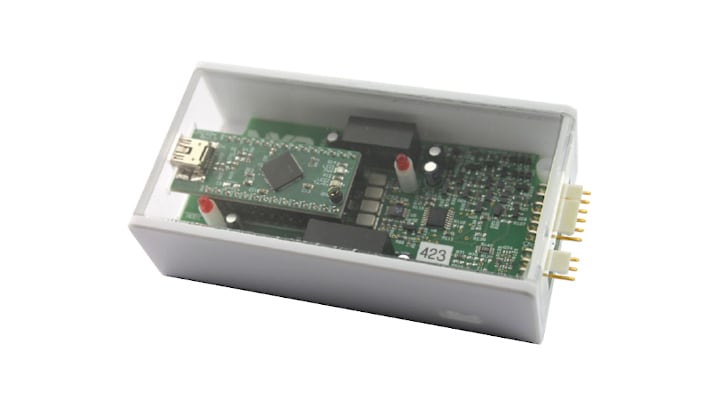

    • USB-I²C interface board
    • TEA20xx_socket_DB1586 programming board

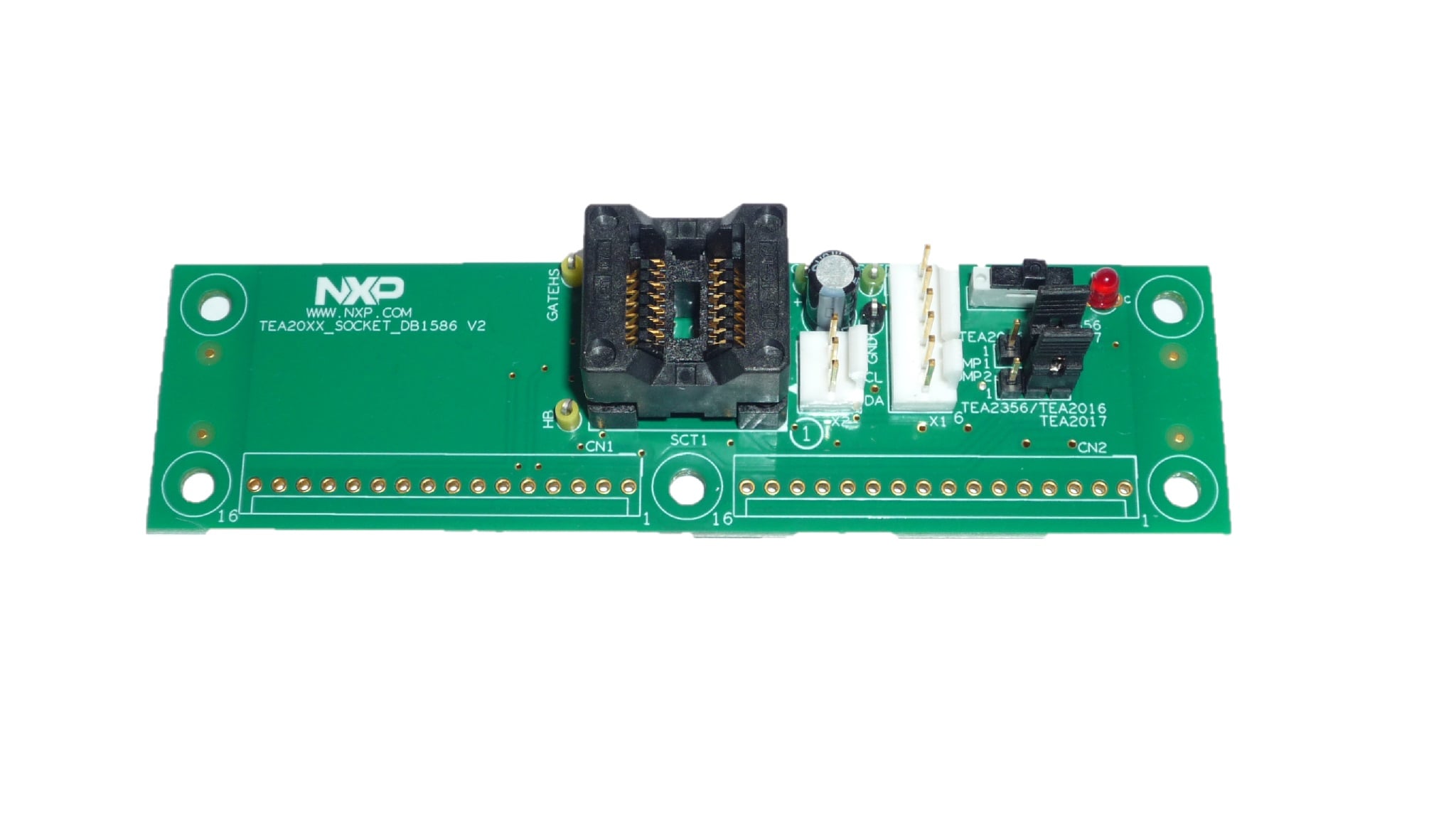

    • TEA2017AATdev IC samples
    • USB, 3-pin and 6-pin connection cables
  • $499.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 11
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
