5 Watt Wireless Charging Transmitter ICs for Automotive Applications

MWCT1x0xA アクティブ
Programmable Wireless Charging Solutions

動画の上をクリックすると再生されます。

The NXP® MWCT1001A and MWCT1003A multi-coil wireless charging transmitter ICs provide complete controller functionality to implement a wireless charging transmitter solution in an automotive environment.

  • Implement and control the power transfer function, as well as monitor and manage overall system state, such as foreign object detection, temperature and system efficiency
  • Standard and premium solutions provide scalability, differentiation and a fully functional, industry compliant system solution
  • NXP offers an upgrade path to the WCT1003A, providing additional hardware and software resources to customize the application and maximize differentiation

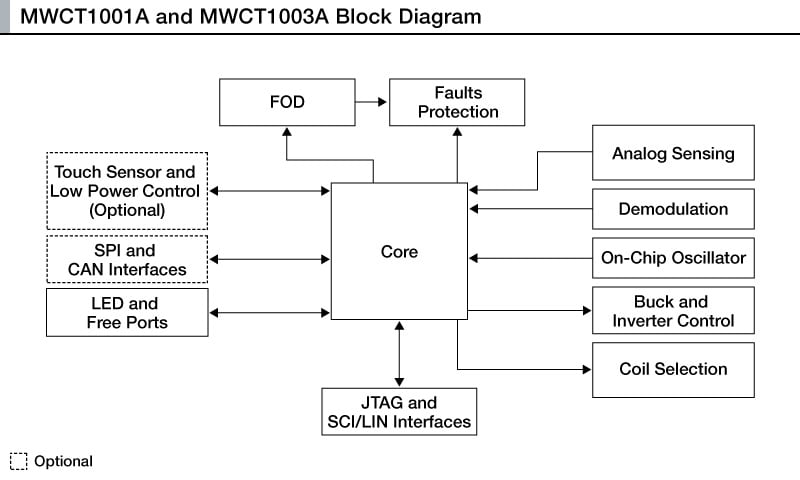

ブロック図

MWCT1XXXA Block diagram

図を取得する PDF

Features

  • Compliant with the latest Wireless Power Consortium (WPC) specification
  • Power transfer efficiency exceeding 60%
  • Optimized Foreign Object Detection algorithm
  • Support for most 5W coil types, single or multi
  • On-chip digital demodulation for lower bill-of-materials cost
  • Low active and standby power
  • Premium version available for additional design flexibility and product differentiation
  • Easy-to-use debug and configuration tools to speed up product development
