MWPR1x24 65W+ Wireless Power Receiver Controller with Integrated Radio

MWPR1x24 65W+ Wireless Power Receiver Controller with Integrated Radio | NXP Semiconductors

The NXP^® MWPR1x24 65W+ Wireless Power Receiver Controller with Integrated Radio IC provides all receiver parameters monitoring, communication with transmitter, over voltage and over current protection to enable safe and secure power delivery through non-magnetic materials such as air, glass, wood, and plastic.

データ・シート

リファレンス・マニュアル

製品詳細

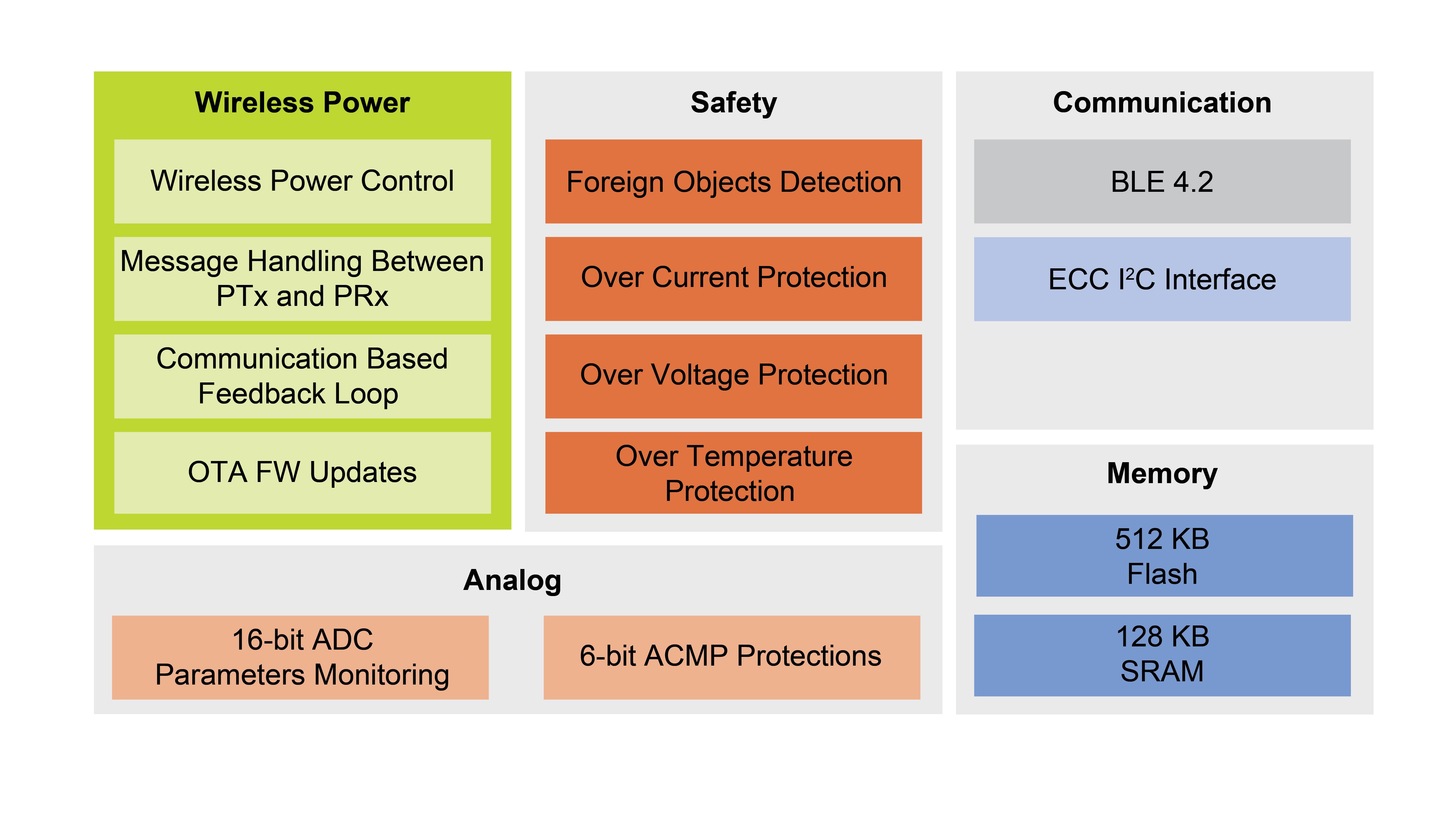

ブロック図

65W+ Wireless Power Receiver with Integrated Radio

Features

Voltage and current monitoring
System protection
Power Control
2.4GHz Radio
BLE
Wireless Power profile
Firmware Update
Temperatures Monitoring
EC communication link

購入/パラメータ

パーツ説明を表示	注文	コンピュータ支援設計モデル	状況	標準価格	アプリケーション	パッケージタイプ	パッケージ端子数	Radio	Flash (kB)	RAM (kB)	DAC [Number, bits]	アナログ・コンパレータ	On-Chip Authentication	AEC-Q100 compliant
MWPR1024IZVHT データ・シート			アクティブ	10K @ US$4.59	Non-Laptop, Tablet	VFLGA64	64	BLE 4.2	512	128	1 x 12	CMP	N	N
MWPR1124ZVHT データ・シート			アクティブ	10K @ US$4.59	Laptop, Tablet	VFLGA64	64	BLE 4.2	512	128	1 x 12	CMP	N	N
