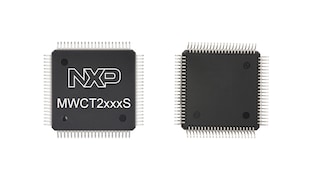

MWCT2xxxS Microcontroller for Wireless charging Transmitter ICs

MWCT2xxxS アクティブ

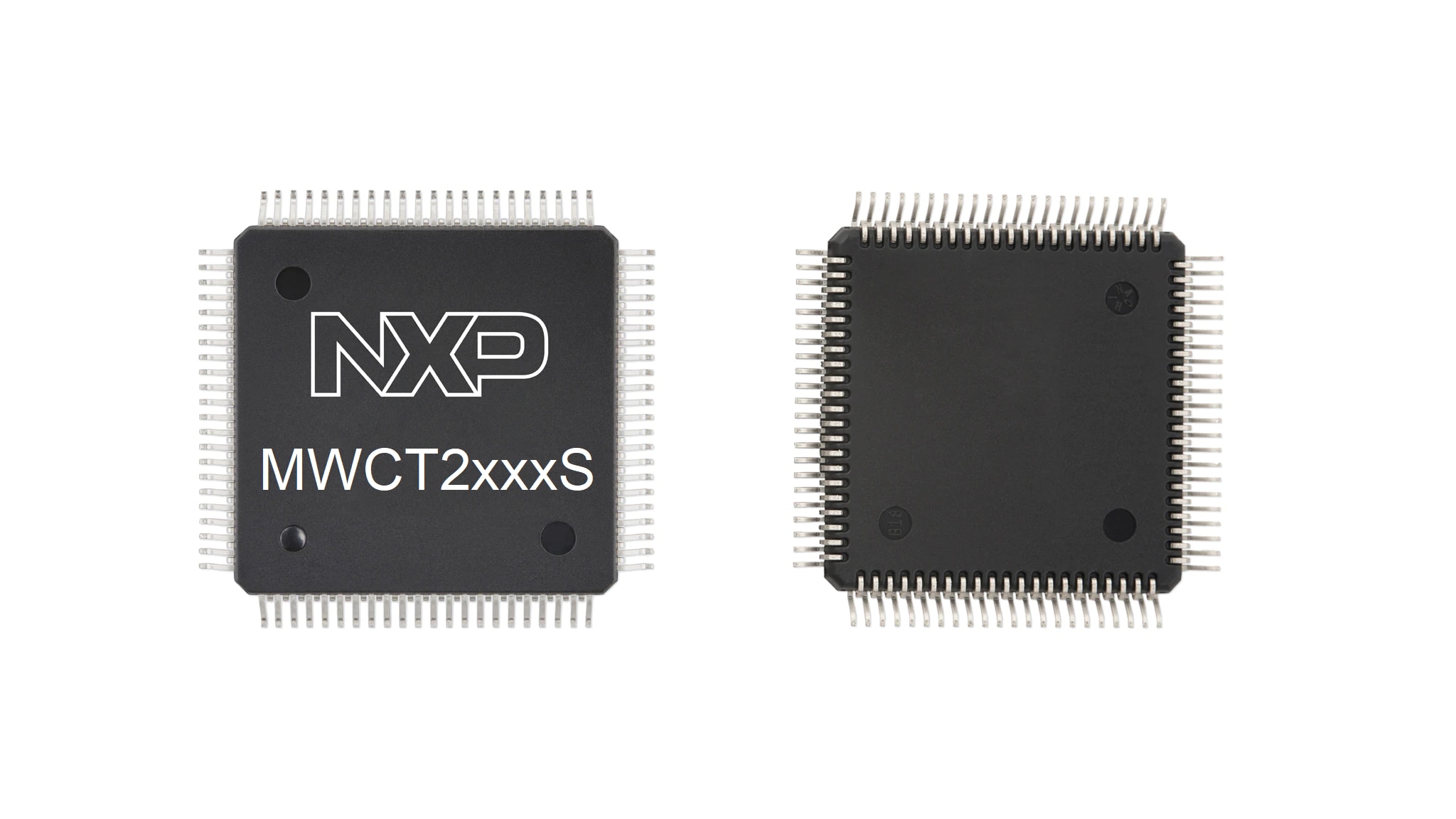

画像にカーソルを合わせると拡大表示されます。

The NXP MWCT2xxxS multi-coil wireless charging transmitter ICs provide complete controller functionality with AUTOSAR® SW to implement a wireless charging transmitter solution in an automotive environment. With integrated security element and dual core is perfect solution for QI 2.x application

製品詳細

ブロック図

図を選択する。:

MWCT2D17S: ASIL B Dual Core 4M Qi Wireless Charging MCU

MWCT2D17S: ASIL B Dual Core 4M Qi Wireless Charging MCU

MWCT2D16S: ASIL B Single Core 2M Qi Wireless Charging MCU

MWCT2D16S: ASIL B Single Core 2M Qi Wireless Charging MCU

MWCT2016S: ASIL B Single Core 2M Qi Wireless Charging MCU

MWCT2016S: ASIL B Single Core 2M Qi Wireless Charging MCU

MWCT2015S: ASIL B Single Core 1M Qi Wireless Charging MCU

MWCT2015S: ASIL B Single Core 1M Qi Wireless Charging MCU

MWCT2014S: ASIL B Single Core 512KB Qi Wireless Charging MCU

MWCT2014S: ASIL B Single Core 512KB Qi Wireless Charging MCU
図を取得する PDF

Features

Family

  • Compliant with the latest version WPC Qi power class 0 specification's power transmitter designs
  • AUTOSAR SW compliant 4.4 or R21-11
  • Advanced on chip digital demodulation
  • HSE security engine - AES-128/192/256, RSA, ECC, secure boot and key storage for QI auth
  • System supports ultra-low standby power mode
  • Advanced Q-factor and Power Loss FOD methods
  • Temperature sensing
  • CAN FD/I²C/SCI/SPI interfaces
  • Secure Firmware (FW) updates in the field (OTA with double banking)

System

  • Compliant with the latest version WPC Qi power class 0 specification's power transmitter designs
  • MWCT2016S and MWCT2D1xS supports two isolated channels - two phones simultaneous charging
  • Support wide transmitter DC input voltage range from 5 V to 48 V (Clean EMC)
  • Low power object detection with NCF3321
  • Supports operation frequency dithering technology to eliminate AM band interference and improve EMC
  • Over-voltage/current/temperature protection

Production-grade software

  • S32 Design Studio IDE – Eclipse, GCC and debugger, 3rd party support
  • Real-Time Drivers – free of charge (AUTOSAR and non-AUTOSAR), ASIL B
  • Security firmware – NXP provided, field upgradeable
  • S32 Safety Software Framework (SAF) and Structural Core Self-Test (SCST) library
  • Safety Peripheral Drivers
