15 Watt Wireless Charging Receiver ICs

MWPR1516 アクティブ
Programmable Wireless Charging Solutions

動画の上をクリックすると再生されます。

The MWPR1516 wireless charging IC and reference platform, based on the Arm® Cortex®-M0+ core, extends our wireless charging portfolio to support up to 15 watt charging power.

  • Ideal for industrial and consumer applications, the MWPR1516 supports larger form factors that require faster charging times
  • The high level of integration enables the MWPR1516 IC to drive smaller PCB form factor designs and offer the possibility for applications to do thermal design based on the application requirement
  • This family adheres to the Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specifications

ブロック図

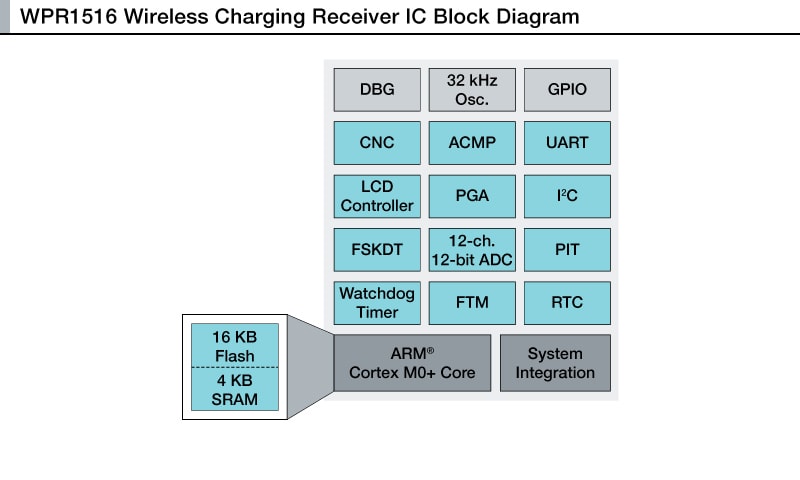

MWPR1XXX Block Diagram

MWPR1XXX Block Diagram
図を取得する PDF

Features

  • Compliant and defined architecture based on the latest Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specification
  • Internal LDO supports operation voltage of 3.5-20V
  • Flash-based IC based on Arm® Cortex-M0+ core
  • Specially designed FSK and CNC models
  • Optimized Foreign Object Detection algorithm
  • 12-bit ADC and PGA
  • USB/Adaptor Switcher
  • I²C and UART
  • CMP feature
  • Reference solution with embedded wireless charger software libraries
