15 Watt Wireless Charging Transmitter ICs

MWCT1x1x アクティブ
Programmable Wireless Charging Solutions

動画の上をクリックすると再生されます。

The NXP® 15 W wireless charging ICs provide complete controller functionality to implement a wireless charging transmitter solution.

  • Using an optimized hardware and software platform, Our transmitter ICs implement and control the power transfer function, as well as monitor and manage overall system states, such as foreign object detection, temperature, and system efficiency
  • The standard solution provides a standalone, low-cost implementation of a 15-watt transmitter; the premium solution offers additional hardware and software resources to customize the application
  • All solutions are fully compliant with the latest Wireless Power Consortium (WPC)-Qi specification

ブロック図

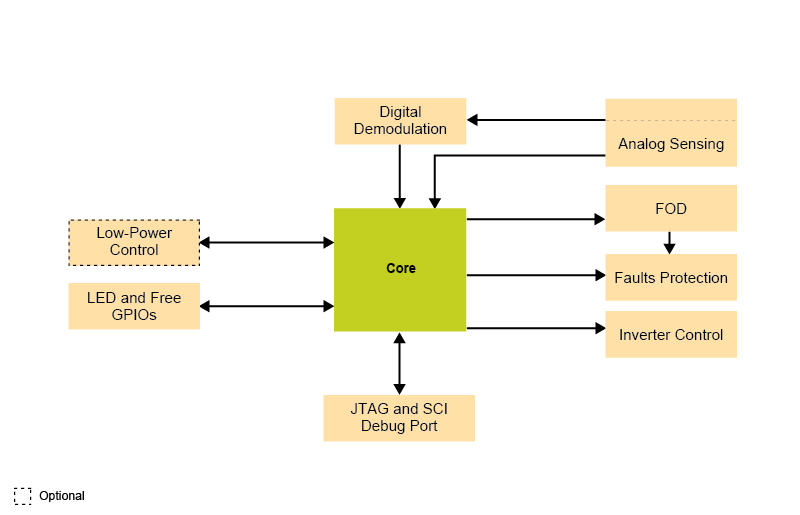

MWCT1x1x Block Diagram

MWCT1x1x Block Diagram
図を取得する PDF

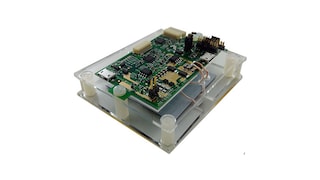

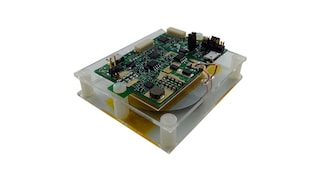

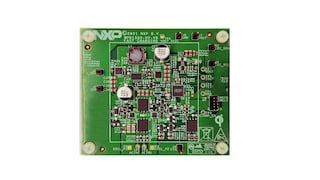

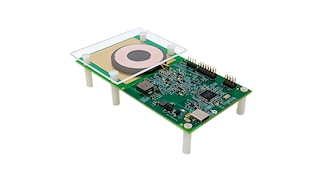

Features

  • Compliant with the latest Wireless Power Consortium (WPC) specification
  • Power transfer efficiency exceeding 75%
  • Optimized Foreign Object Detection algorithm
  • Support for most 15W single-coil applications, regardless of coil type
  • On-chip digital demodulation for lower bill-of-materials cost
  • Low active and standby power
  • Premium version, MWCT1111, available for additional design flexibility and product differentiation
  • Easy-to-use debug and configuration tools to speed up product development
