Digital Signal Controller

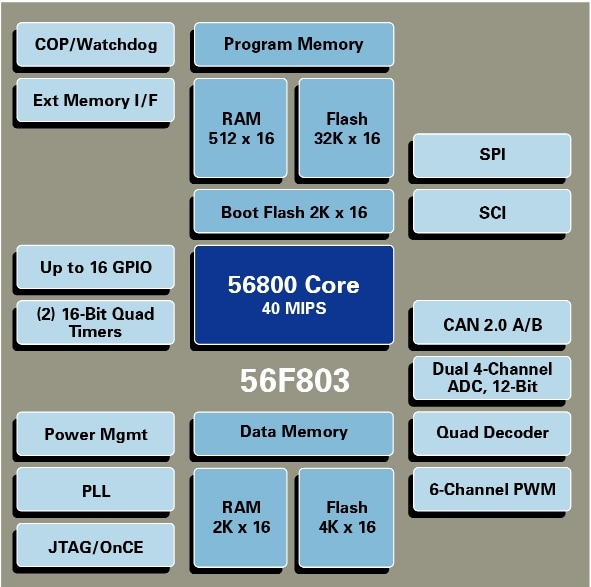

The 56F803, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. This creates an extremely cost-effective solution for servo and motor control, power inverter and converter applications.
The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP- and MCU-style applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications
製品詳細
Features
- Advanced pulse width modulation
- Dual analog to digital converters
- Programmable 16-bit timers
- 8 MHz crystal oscillator and PLL with integrated pre and post scalars
- On-board power conversion and management
- NXP® scalable CAN module
- Serial communications interface module (SCI)
- Serial peripheral interface module (SPI)
- GPIO
- JTAG/OnCE debug programming interface
部品番号： DSP56F803BU80E.
購入/パラメータ
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 58 ドキュメント
-
データ・シート
56F803 - Data Sheet
-
アプリケーション・ノート
AN4334, Use of PGA on MC56F800x - Application Notes
-
アプリケーション・ノート
Recovering MC56F8300 Family Devices from Extreme RFI
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
1-5 の 12 ソフトウェア・ファイル
-
設定ツール
Initialization tool for ADC, Decoder, ESSI/SSI, EMI, FlexCAN, Flash, GPIO, HPI, INTC, I2C, MSCAN, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch
-
設定ツール
[Archive]:Triple DES Example Application for 56F80x
-
追加ソフトウェアを利用可能 パートナー・ソリューションの特集を表示.
-
スニペット、ブート・コード、ヘッダ、モニタなど
Code examples for ECS04W54 Presentation
-
スニペット、ブート・コード、ヘッダ、モニタなど
Peripheral Example Applications for 56800/E, supporting: ADC, Decoder, ESSI/SSI, EMI, Flash, GPIO, HPI, INTC, I2C, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch.
