Freedom Platform for HB2001, 10 A H-Bridge, Programmable Brushed DC Motor Driver

FRDM-HB2001-EVM アクティブ

画像にカーソルを合わせると拡大表示されます。

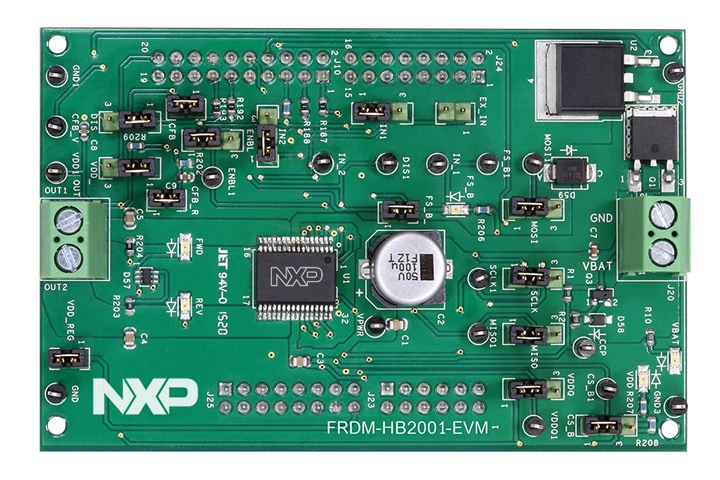

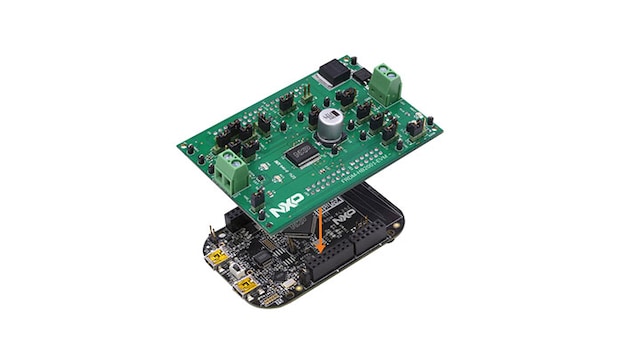

The FRDM-HB2001-EVM Evaluation Kit (EVM) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33HB2001 HSOP32 10 A H-Bridge device. The EVB parallel input can be easily controlled through lab equipment, any MCU with GPIOs and also FRDM-KL25Z board connected to a PC’s USB port. The board also supports SPI communication to configure, control as well as monitor the status of MC33HB2001.

対応製品

パワーマネージメント

BLDC、Hブリッジ、ステッパ

  • HB2001: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Features

Power Management

  • Built-in a voltage regulator to supply logic level circuitry
  • Built-in reverse battery protection

Debug

  • Test points to allow probing of signals

General Specifications

  • Motor control with direction and speed/torque control
  • Transient voltage suppressor to handle system level transients
  • Real-time current monitoring to implement closed loop control
  • Compatible with NXP’s FRDM-KL25Z Platform
  • LEDs to indicate the supply status and direction of motor
  • Low ESR capacitor to reduce ripple in the power supply
  • Transient voltage suppressor to handle system level transients

購入オプション

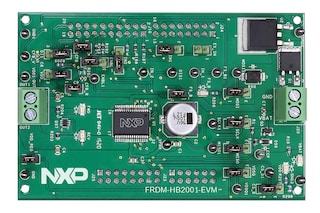

FRDM-HB2001-EVM-Image

クリックして展開

  • FRDM-HB2001-EVM
    アクティブ

  • Freedom Expansion Board - HB2001, 10 A H-bridge, Programmable Brushed DC Motor Driver.

    • FRDM-HB2001-EVM
    • FRDM-KL25Z
    • Quick reference card
  • $166.75 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
