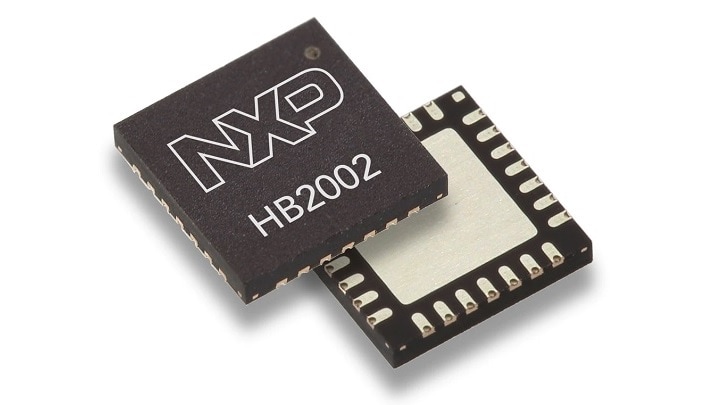

SPI-Programmable H-Bridge Brushed DC Motor Driver

HB2002 アクティブ

画像にカーソルを合わせると拡大表示されます。

The HB2002 meets shifting demands for motor control applications in automotive and industrial spaces, delivering the efficient and robust performance necessary for tomorrow's safety-critical solutions.

  • Safety and Protection: H-Bridge motor driver designed using ISO 26262 processes to support ASIL C and D system qualifications.
  • Scalability: SPI-programmable current limits, slew rates, fault reporting, and control schemes enable the same IC to service various applications and motor sizes.
  • Thermal Management: Integrated power MOSFETs have temperature-dependent current limit foldback to reduce power and prevent excessive device heating.

ブロック図

HB2002: SPI-Programmable H-Bridge Brushed DC Motor Driver

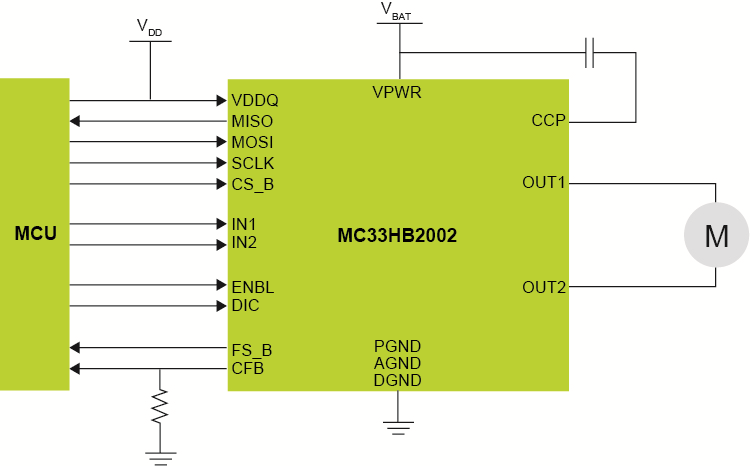

HB2002 Block Diagram
図を取得する PDF

Features

Key Features

  • Advanced diagnostic and fault reporting, via SPI
  • Accuracy for real-time current feedback (5%)
  • Low RDS(on) integrated MOSFETs: 235 mΩ per device MAX (TJ = 150°C)
  • Thermally-efficient QFN package: RΘJC < 1.0 °C/W
  • Wide operating range: 5 V to 28 V, 40 V transient
  • Eight slew rate options, selectable by SPI: 0.25 to > 16 V/µs
  • Four current limit options, selectable by SPI: 5.4/7.0/8.8/10.7 A
  • Configurable for full bridge or half-bridge mode
  • Load supply voltage min. 5 V, max. 28 V
  • Ambient operating temperature -40 to 125 °C
  • Parallel and SPI interface and input controllers

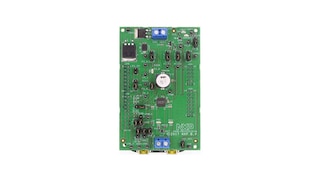

Complementary Products

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPHB2002ja 4 アプリケーション・ノート Application Note t789 2 データ・シート Data Sheet t520 1 ホワイト・ペーパ White Paper t530 1 ja ja ja データ・シート Data Sheet 1 1 5.0 English The MC33HB2002 is a SMARTMOS monolithic H-Bridge Power IC, enhanced with SPI configurability and diagnostic capabilities. 1538765716713731079850 PSP 3.9 MB None None documents None 1538765716713731079850 /docs/en/data-sheet/MC33HB2002.pdf 3912264 /docs/en/data-sheet/MC33HB2002.pdf MC33HB2002 documents N N 2018-10-05 MC33HB2002, 10 A H-bridge, SPI programmable brushed DC motor driver - Data sheet /docs/en/data-sheet/MC33HB2002.pdf /docs/en/data-sheet/MC33HB2002.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Apr 17, 2020 980000996212993340 Data Sheet Y N MC33HB2002, 10 A H-bridge, SPI programmable brushed DC motor driver - Data sheet アプリケーション・ノート Application Note 2 2 2.0 English This application note gives an estimation of PWM duty cycle accuracy that can be achieved using MC33HB2000, MC33HB2001 and MC33HB2002 at varying slew rate settings and voltage levels. 1492625884163737643456 PSP 1.9 MB None None documents None 1492625884163737643456 /docs/en/application-note/AN5415.pdf 1938938 /docs/en/application-note/AN5415.pdf AN5415 documents N N 2017-04-19 AN5415, Estimation of PWM duty cycle range for MC33HB200x at different slew rates - Application note /docs/en/application-note/AN5415.pdf /docs/en/application-note/AN5415.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 2, 2018 645036621402383989 Application Note Y N AN5415, Estimation of PWM duty cycle range for MC33HB200x at different slew rates - Application note 3 1.0 English In this application note, the MC34932 and MC33932 monolithic dual H-Bridge power integrated circuits are selected to discuss thermal calculations. 1445354415220731172771 PSP 1.2 MB None None documents None 1445354415220731172771 /docs/en/application-note/AN5194.pdf 1217827 /docs/en/application-note/AN5194.pdf AN5194 documents N N 2016-10-31 AN5194, Power Dissipation and Thermal Calculations for H-Bridge Motor Drivers - Application Note /docs/en/application-note/AN5194.pdf /docs/en/application-note/AN5194.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 16, 2015 645036621402383989 Application Note Y N AN5194, Power Dissipation and Thermal Calculations for H-Bridge Motor Drivers - Application Note ホワイト・ペーパ White Paper 1 4 0 English This white paper provides background on automotive challenges, focusing on motor control issues and discusses one of NXP's newest comprehensive solutions to solve them. 1464889364448700618268 PSP 551.0 KB None None documents None 1464889364448700618268 /docs/en/white-paper/HBRIDGEWP.pdf 550996 /docs/en/white-paper/HBRIDGEWP.pdf HBRIDGEWP documents N N 2016-10-31 HBRIDGEWP, H-Bridge Motor Drivers Address Automotive Emissions and ADAS Challenges - White paper /docs/en/white-paper/HBRIDGEWP.pdf /docs/en/white-paper/HBRIDGEWP.pdf White Paper N 918633085541740938 2022-12-07 pdf N en Jun 1, 2016 918633085541740938 White Paper Y N HBRIDGEWP, H-Bridge Motor Drivers Address Automotive Emissions and ADAS Challenges - White paper false 0 HB2002 downloads ja true 1 Y PSP Y Y アプリケーション・ノート 2 /docs/en/application-note/AN5415.pdf 2017-04-19 1492625884163737643456 PSP 2 Oct 2, 2018 Application Note This application note gives an estimation of PWM duty cycle accuracy that can be achieved using MC33HB2000, MC33HB2001 and MC33HB2002 at varying slew rate settings and voltage levels. None /docs/en/application-note/AN5415.pdf English documents 1938938 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5415.pdf AN5415, Estimation of PWM duty cycle range for MC33HB200x at different slew rates - Application note /docs/en/application-note/AN5415.pdf documents 645036621402383989 Application Note N en None Y pdf 2.0 N N AN5415, Estimation of PWM duty cycle range for MC33HB200x at different slew rates - Application note 1.9 MB AN5415 N 1492625884163737643456 /docs/en/application-note/AN5194.pdf 2016-10-31 1445354415220731172771 PSP 3 Oct 16, 2015 Application Note In this application note, the MC34932 and MC33932 monolithic dual H-Bridge power integrated circuits are selected to discuss thermal calculations. None /docs/en/application-note/AN5194.pdf English documents 1217827 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5194.pdf AN5194, Power Dissipation and Thermal Calculations for H-Bridge Motor Drivers - Application Note /docs/en/application-note/AN5194.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN5194, Power Dissipation and Thermal Calculations for H-Bridge Motor Drivers - Application Note 1.2 MB AN5194 N 1445354415220731172771 データ・シート 1 /docs/en/data-sheet/MC33HB2002.pdf 2018-10-05 1538765716713731079850 PSP 1 Apr 17, 2020 Data Sheet The MC33HB2002 is a SMARTMOS monolithic H-Bridge Power IC, enhanced with SPI configurability and diagnostic capabilities. None /docs/en/data-sheet/MC33HB2002.pdf English documents 3912264 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC33HB2002.pdf MC33HB2002, 10 A H-bridge, SPI programmable brushed DC motor driver - Data sheet /docs/en/data-sheet/MC33HB2002.pdf documents 980000996212993340 Data Sheet N en None Y pdf 5.0 N N MC33HB2002, 10 A H-bridge, SPI programmable brushed DC motor driver - Data sheet 3.9 MB MC33HB2002 N 1538765716713731079850 ホワイト・ペーパ 1 /docs/en/white-paper/HBRIDGEWP.pdf 2016-10-31 1464889364448700618268 PSP 4 Jun 1, 2016 White Paper This white paper provides background on automotive challenges, focusing on motor control issues and discusses one of NXP's newest comprehensive solutions to solve them. None /docs/en/white-paper/HBRIDGEWP.pdf English documents 550996 None 918633085541740938 2022-12-07 N /docs/en/white-paper/HBRIDGEWP.pdf HBRIDGEWP, H-Bridge Motor Drivers Address Automotive Emissions and ADAS Challenges - White paper /docs/en/white-paper/HBRIDGEWP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N N HBRIDGEWP, H-Bridge Motor Drivers Address Automotive Emissions and ADAS Challenges - White paper 551.0 KB HBRIDGEWP N 1464889364448700618268 true Y Products
