MC34931/S H-Bridge, Brushed DC Motor Driver, 5-36 V, 5 A, 11 kHz/20 kHz

MC34931
アクティブ

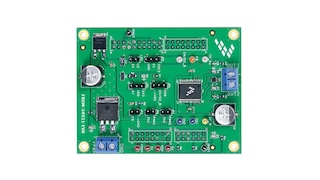

画像にカーソルを合わせると拡大表示されます。

The NXP MC34931 is a monolithic, thermally efficient 36 V/ 5 A H-Bridge DC motor driver.

  • Features real-time load current monitoring and automatic thermal back-off ensuring high availability operation in demanding high-current, high-temperature industrial applications
  • Designed primarily for DC brushed and servo motor driver applications within the current and voltage limits stated in this specification
  • Powered by SMARTMOS® technology
  • Processor Expert® component for medium voltage H-Bridge products enables rapid embedded application development.

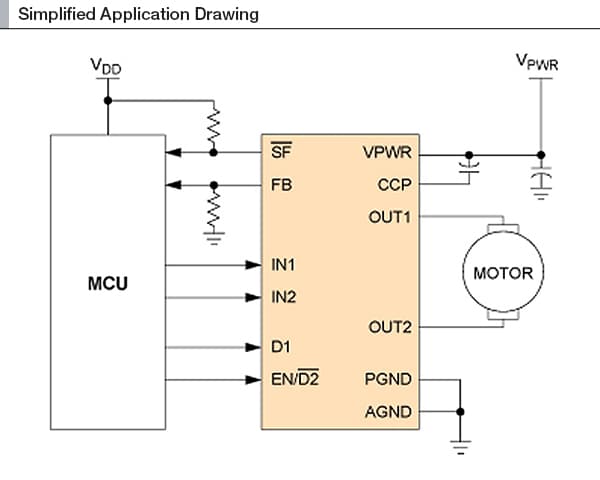

ブロック図

MC34931/S H-Bridge

NXP<sup>&#174;</sup> MC34931 Internal Block Diagram
図を取得する PDF

Features

Key Features

  • Thermal efficiency: eSOIC package delivers 2X lower thermal impedance, saving board space and simplifying design
  • Automatic thermal back-off: Temperature regulated, peak current limiting ensures continuous high availability operation
  • Real-time load current monitoring: Analog feedback current mirror feature used for motor control or load protection
  • Design-in simplicity: Integrated H-Bridge with charge pump, control, protection and four MOSFETs
  • High efficiency: 120 mΩ typical RDS(ON)
  • Load supply voltage 5 V to 36 V continuous operation, 42 V transient
  • Operation up to 5 A covering a wide range of applications.
  • 3 and 5 V TTL/CMOS compatible
  • Status flag output reports under-voltage, over-current, and over-temperature fault conditions
  • Output short-circuit protection (short to VPWR or GND)
  • Sleep mode with current draw < 20 μA
  • Parallel interface and input control
  • Ambient operating temperature -40 °C (Min), 85 °C (Max)

購入/パラメータ

1 結果

マッチしていない 1 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

安全保障機能安全

製品機能

Load Current (IL) [TYP] (A)

チャネル数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

負荷電源電圧（最小）（V）

負荷電源電圧（最大）（V）

電源電圧 [最小] (V)

電源電圧 [最大] (V)

インターフェースと入力制御

Ambient Operating Temperature (Min to Max) (℃)

MC34931EK
データ・シート

アクティブ

HSOP32

32

1K @ US$1.78

No

H-bridge

5

2

0.12

0.24

5

36

5

40

Parallel / Parallel

-40 to 85

N true 0 PSPMC34931ja 5 アプリケーション・ノート Application Note t789 3 セレクタ・ガイド Selector Guide t528 1 データ・シート Data Sheet t520 1 ja 1 1 4.0 English The 34931 is a monolithic H-Bridge Power IC in a robust thermally enhanced package. 1374613333363725258157 PSP 725.6 KB None None documents None 1374613333363725258157 /docs/en/data-sheet/MC34931.pdf 725626 /docs/en/data-sheet/MC34931.pdf MC34931 N N 2016-10-31 MC34931, 5.0 A H-Bridge - Data Sheet /docs/en/data-sheet/MC34931.pdf /docs/en/data-sheet/MC34931.pdf Data Sheet N Y 980000996212993340 2023-08-31 pdf N en Sep 8, 2015 Data Sheet t520 データ・シート Data Sheet Y N MC34931, 5.0 A H-Bridge - Data Sheet false ja ja アプリケーション・ノート Application Note 3 2 1.0 English This document presents a simplified system level method for improving the accuracy of feedback current measurement when using NXP H-Bridge motor drivers, including the MC33926, MC33931, MC33932, MC34931 and the MC34932. 1447973695363695880122 PSP 576.2 KB None None documents None 1447973695363695880122 /docs/en/application-note/AN5212.pdf 576190 /docs/en/application-note/AN5212.pdf AN5212 documents N N 2015-11-19 AN5212, Improving Feedback Current Accuracy When Using H-Bridges for Closed Loop Motor Control - Application Note /docs/en/application-note/AN5212.pdf /docs/en/application-note/AN5212.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 19, 2015 645036621402383989 Application Note Y N AN5212, Improving Feedback Current Accuracy When Using H-Bridges for Closed Loop Motor Control - Application Note 3 3.0 English This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. 10jsBvfc PSP 3.5 MB None None documents None 10jsBvfc /docs/en/application-note/AN2409.pdf 3536520 /docs/en/application-note/AN2409.pdf AN2409 documents N N 2016-10-31 AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf /docs/en/application-note/AN2409.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 21, 2014 645036621402383989 Application Note Y N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 4 1.0 English The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. 1225311007711718167766 PSP 1.0 MB None None documents None 1225311007711718167766 /docs/en/application-note/AN3670.pdf 1013814 /docs/en/application-note/AN3670.pdf AN3670 documents N N 2016-10-31 AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf /docs/en/application-note/AN3670.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 29, 2008 645036621402383989 Application Note Y N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 セレクタ・ガイド Selector Guide 1 5 13 English For system designers that want more efficient motor operation with variable speed and sensorless control, NXP offers H-Bridge, brushed and brushless DC motor drivers required to complete system design. 1440175950835712338186 PSP 197.6 KB None None documents None 1440175950835712338186 /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf 197574 /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf MOTORDRIVERFLYR documents N N 2016-10-31 Motor Driver – Selector Guide /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf Selector Guide N 553557935274807777 2024-08-11 pdf N en Feb 4, 2021 553557935274807777 Selector Guide Y N Motor Driver – Selector Guide false 0 MC34931 downloads ja true 1 Y PSP Y Y アプリケーション・ノート 3 /docs/en/application-note/AN5212.pdf 2015-11-19 1447973695363695880122 PSP 2 Nov 19, 2015 Application Note This document presents a simplified system level method for improving the accuracy of feedback current measurement when using NXP H-Bridge motor drivers, including the MC33926, MC33931, MC33932, MC34931 and the MC34932. None /docs/en/application-note/AN5212.pdf English documents 576190 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5212.pdf AN5212, Improving Feedback Current Accuracy When Using H-Bridges for Closed Loop Motor Control - Application Note /docs/en/application-note/AN5212.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN5212, Improving Feedback Current Accuracy When Using H-Bridges for Closed Loop Motor Control - Application Note 576.2 KB AN5212 N 1447973695363695880122 /docs/en/application-note/AN2409.pdf 2016-10-31 10jsBvfc PSP 3 Oct 21, 2014 Application Note This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. None /docs/en/application-note/AN2409.pdf English documents 3536520 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN2409.pdf AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf documents 645036621402383989 Application Note N en None Y pdf 3.0 N N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 3.5 MB AN2409 N 10jsBvfc /docs/en/application-note/AN3670.pdf 2016-10-31 1225311007711718167766 PSP 4 Oct 29, 2008 Application Note The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. None /docs/en/application-note/AN3670.pdf English documents 1013814 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN3670.pdf AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 1.0 MB AN3670 N 1225311007711718167766 セレクタ・ガイド 1 /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf 2016-10-31 1440175950835712338186 PSP 5 Feb 4, 2021 Selector Guide For system designers that want more efficient motor operation with variable speed and sensorless control, NXP offers H-Bridge, brushed and brushless DC motor drivers required to complete system design. None /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf English documents 197574 None 553557935274807777 2024-08-11 N /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf Motor Driver – Selector Guide /docs/en/product-selector-guide/MOTORDRIVERFLYR.pdf documents 553557935274807777 Selector Guide N en None Y pdf 13 N N Motor Driver – Selector Guide 197.6 KB MOTORDRIVERFLYR N 1440175950835712338186 データ・シート 1 /docs/en/data-sheet/MC34931.pdf 2016-10-31 1374613333363725258157 PSP 1 Sep 8, 2015 Data Sheet データ・シート The 34931 is a monolithic H-Bridge Power IC in a robust thermally enhanced package. None /docs/en/data-sheet/MC34931.pdf English 725626 None Data Sheet 2023-08-31 N /docs/en/data-sheet/MC34931.pdf MC34931, 5.0 A H-Bridge - Data Sheet /docs/en/data-sheet/MC34931.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4.0 N N MC34931, 5.0 A H-Bridge - Data Sheet 725.6 KB MC34931 N 1374613333363725258157 true Y Products
