SD6 Programmable Driver for Solenoid Control

MC33816 アクティブ

画像にカーソルを合わせると拡大表示されます。

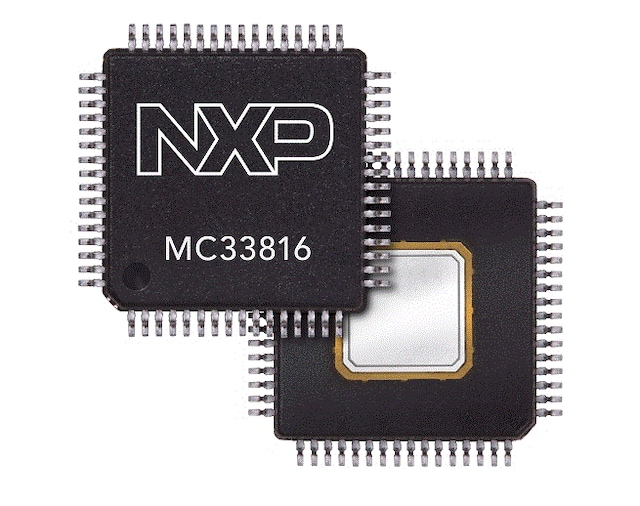

The NXP MC33816 is a programmable gate driver IC for precision solenoid control applications.

  • The IC consists of five external MOSFET high-side pre-drivers and seven external MOSFET low-side pre-drivers
  • Provides a flexible solution for MOSFET gate drive with a versatile control and optimized latency time
  • Gate drive, diagnosis, and protection are managed through four independent microcores, two code RAM and two data RAM banks
  • The IC contains two internal voltage regulators

View internal diagram

ブロック図

MC33816 System

MC33816 System Diagram
図を取得する PDF

Features

Key Features

  • Battery voltage range, 5.0 V < VBATT < 32 V
  • Pre-drive operating voltage up to 72 V
  • High-side/ low-side pre-drive PWM capability up to 100 KHz (30 nCoulomb)
  • All pre-drivers have four selectable slew rates
  • Eight selectable, pre-defined VDS monitoring thresholds
  • Encryption for microcode protection
