3 Phase Inverter Evaluation Kit for Semikron eMPack Featuring GD3160

RDGD31603PSMKEVM

画像にカーソルを合わせると拡大表示されます。

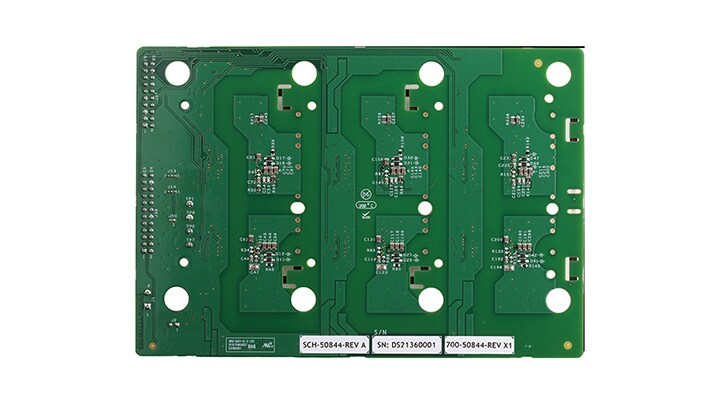

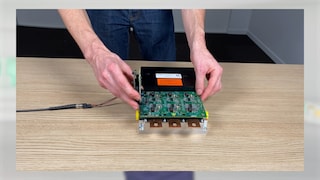

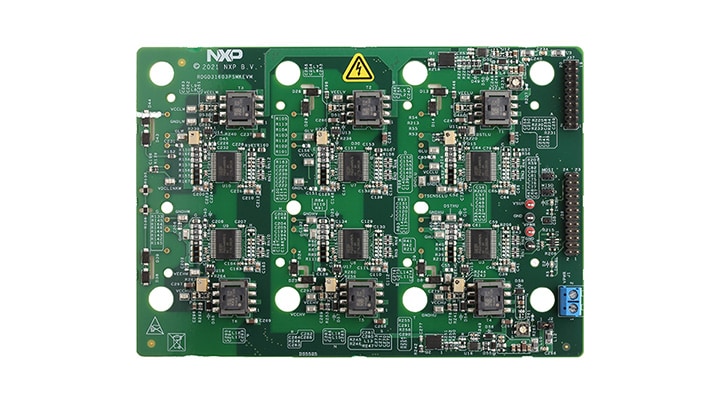

RDGD31603PSMKEVM is a three phase reference design and evaluation kit populated with six GD3160 gate drivers for IGBT/SiC MOSFET devices it is compatible. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration.

The evaluation kit is designed to be compatible with eMPack power modules, in particular the eMP1300MD12SC2S-APK application kit from Semikron. It can be used for double pulse and short circuit testing on single phase and full three phase applications development.

製品詳細

対応製品

パワーマネージメント

パワートレイン＆エンジン制御

  • GD3160: SiC MOSFET用のセグメント化ドライブを備えた高度な高電圧絶縁ゲート・ドライバ

Features

  • Compatible with Semikron’s eMPack power modules such as eMP1300MD12SC2S-APK application kit (article number 19285392), available on www.semikron.com
  • Flex GUI graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double pulse and short circuit evaluations
  • Fiber optic connections for external PWM inputs

購入オプション

RDGD31603PSMKEVM-Image

クリックして展開

  • RDGD31603PSMKEVM
    アクティブ

  • 3 Phase Inverter Evaluation Kit for Semikron eMPack Featuring GD3160.

  • Kit contains

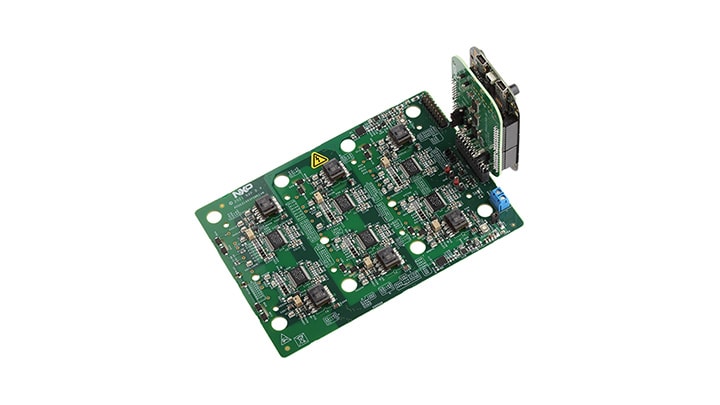

    • KITGD3160TREVB translator with KL25Z MCU
    • Micro USB cable
    • Quick Start Guide
  • $521.25 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPRDGD31603PSMKEVMja 2 ドキュメント User Manual t1009 1 ユーザ・ガイド User Guide t792 1 ja ja 1 1 English Getting Started with the RDGD31603PSMKEVM Phase Inverter Evaluation Kit 1638391058086704209477 Y 1638391058086704209477 GS-RDGD31603PSMKEVM GS-RDGD31603PSMKEVM /document/guide/getting-started-with-the-rdgd31603psmkevm-phase-inverter-evaluation-kit:GS-RDGD31603PSMKEVM HTML 0 2021-12-01 GS-RDGD31603PSMKEVM TSP User Guide 132339537837198660 2025-01-07 en Dec 2, 2021 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the RDGD31603PSMKEVM Phase Inverter Evaluation Kit false ja ドキュメント User Manual 1 2 2 English The RDGD31603PSMKEVM three-phase inverter is a functional hardware power inverter reference design which can be used as a foundation to develop a complete ASIL-D compliant high voltage, high-power traction motor inverter for electric vehicles. The kit can be used as a double pulse and short circuit tester to measure key switching parameters, or as a three-phase inverter for motor control. 1639074734049724898553 TSP 17.8 MB None None documents None 1639074734049724898553 /docs/en/user-manual/UM11697.pdf 17822217 /docs/en/user-manual/UM11697.pdf UM11697 documents N N 2021-12-09 UM11697, RDGD31603PSMKEVM three-phase inverter kit - User Manual /docs/en/user-manual/UM11697.pdf /docs/en/user-manual/UM11697.pdf User Manual N 309919593431037931 2022-12-07 pdf N en Jun 13, 2022 309919593431037931 User Manual Y N UM11697, RDGD31603PSMKEVM three-phase inverter kit - User Manual false 0 RDGD31603PSMKEVM downloads ja true 0 Y TSP ドキュメント 1 /docs/en/user-manual/UM11697.pdf 2021-12-09 1639074734049724898553 TSP 2 Jun 13, 2022 User Manual The RDGD31603PSMKEVM three-phase inverter is a functional hardware power inverter reference design which can be used as a foundation to develop a complete ASIL-D compliant high voltage, high-power traction motor inverter for electric vehicles. The kit can be used as a double pulse and short circuit tester to measure key switching parameters, or as a three-phase inverter for motor control. None /docs/en/user-manual/UM11697.pdf English documents 17822217 None 309919593431037931 2022-12-07 N /docs/en/user-manual/UM11697.pdf UM11697, RDGD31603PSMKEVM three-phase inverter kit - User Manual /docs/en/user-manual/UM11697.pdf documents 309919593431037931 User Manual N en None Y pdf 2 N N UM11697, RDGD31603PSMKEVM three-phase inverter kit - User Manual 17.8 MB UM11697 N 1639074734049724898553 ユーザ・ガイド 1 2021-12-01 1638391058086704209477 1 Dec 2, 2021 User Guide ユーザ・ガイド Getting Started with the RDGD31603PSMKEVM Phase Inverter Evaluation Kit Y GS-RDGD31603PSMKEVM English 0 User Guide 2025-01-07 /document/guide/getting-started-with-the-rdgd31603psmkevm-phase-inverter-evaluation-kit:GS-RDGD31603PSMKEVM Getting Started with the RDGD31603PSMKEVM Phase Inverter Evaluation Kit GS-RDGD31603PSMKEVM TSP 132339537837198660 User Guide en Y t792 HTML GS-RDGD31603PSMKEVM 1638391058086704209477 true Y Tools
