SIPI-ERM8-ZIPCBL
アクティブ -

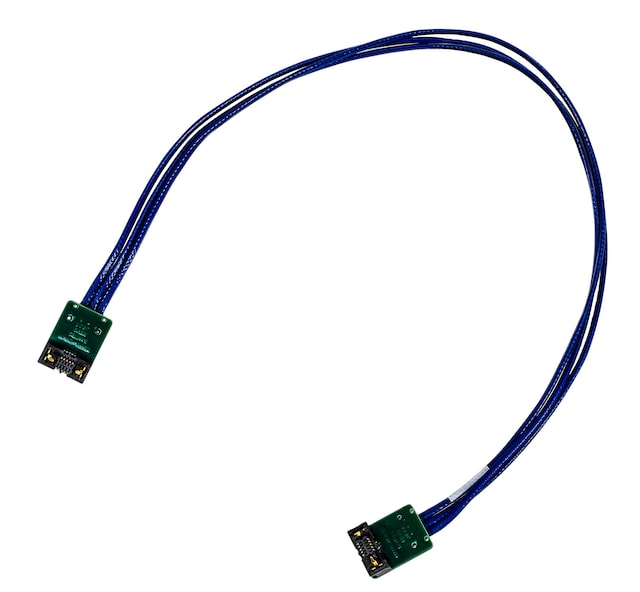

SIPI ZIP WIRE CABLE, 2X5 PIN SIPI CONN, 0.8MM PITCH 12 IN LENGTH.
Zipwire Cable Assembly

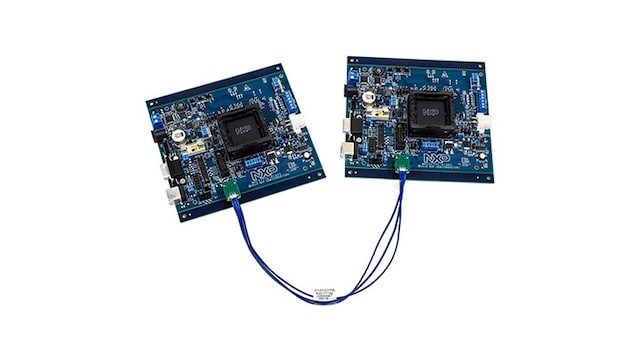

Zipwire is a new bus for communicating between two devices over a high speed (240 MHz) serial interface. It is implemented using a Serial Inter-Processor Interface (SIPI) over an LVDS Fast synchronous Serial Transmission Interface (LFAST). The SIPI module controls the higher level protocol of the interface, and the LFAST controls the physical interface. SIPI-ERM8-ZIPCBL is a Zipwire cable assembly that allows for communication between two boards (not included) via Zipwire.
CAUTION
Zipwire is intended to be used between two devices on the same printed circuit board. This connector and cable is only intended for evaluation of products and not for actual customer implementations
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
超高信頼性MPC57xx MCU
- MPC5746R: Automotive and Industrial Engine Management MCU
- MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications
- MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
- MPC5777M: Ultra-Reliable MPC5777M MCU for Automotive and Industrial Engine Management
- MPC577xK: Ultra-Reliable MPC577xK MCU for ADAS and Radar
Features
- A pair of LVDS transmits pins
- A pair of receive LVDS pins
- A clock. The clock is unidirectional and is defined to be an output on the Follower and an input on the Controller node
The Zipwire interface consists of five signals:
- Additional information about the Zipwire Interface is available in the application note AN5134 “Introduction to Zipwire” which can be found at www.nxp.com
