Ultra-Reliable MPC56xS MCU for Automotive and Industrial Instrument Clusters

MPC564xS アクティブ

The NXP® MPC564xS family of MCUs targets the needs of automotive instrument cluster and industrial markets.

  • Includes on-chip display control units that directly drives the TFT displays
  • Low-power design enables dynamic power management of core and peripherals
  • Offers an industry standard graphics accelerator to help drive sophisticated graphics (e.g., simulated instrument cluster needles or image warping for heads-up displays)
  • Offers code compatibility with applications in the MPC560xS environment
  • Supported by robust enablement ecosystem to simplify and accelerate development

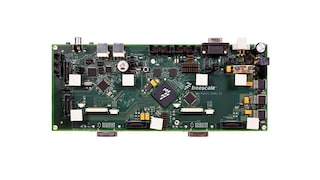

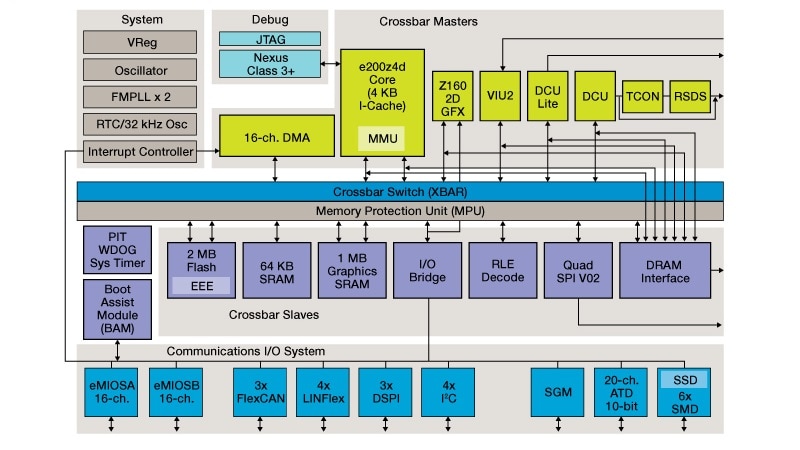

ブロック図

MPC564xS Block Diagram

MPC564xS Block Diagram
図を取得する PDF

Features

  • Dual-issue, 32-bit Power Architecture Book E compliant CPU core complex (e200z4d) Memory management unit and 4 KB instruction cache
  • Variable length encoding (VLE) instruction set enables significant code size reduction over conventional Book E-compliant code
  • Up to 2 MB on-chip flash with flash controller
  • Separate 4 x 16 KB flash block for EEPROM emulation
  • Up to 64 KB on-chip SRAM with ECC
  • Up to 1 MB on-chip graphics SRAM (no ECC)
  • Two TFT displays up to WVGA resolution parallel data interface (PDI) for digital video input
  • Sound generation and playback using PCM or DDS sources with 4-channel mixer and PWM or I2S outputs
  • Stepper motor drivers with stepper stall detect for up to six gauges
