1.Plug It In
Let's take your FRDM board for a test drive! You have the choice of watching the sequence in a short video or following the detailed actions listed below.

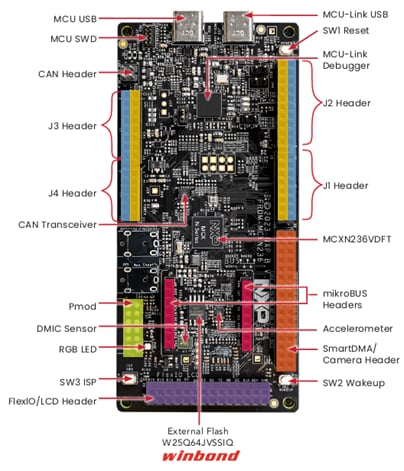

1.1 Get Familiar with the Board
The FRDM-MCXN236 board is preprogrammed with an LED blinky demo. This serves as a sanity check to verify that the device is working as expected out of the box.
1.2 Plug In the Board

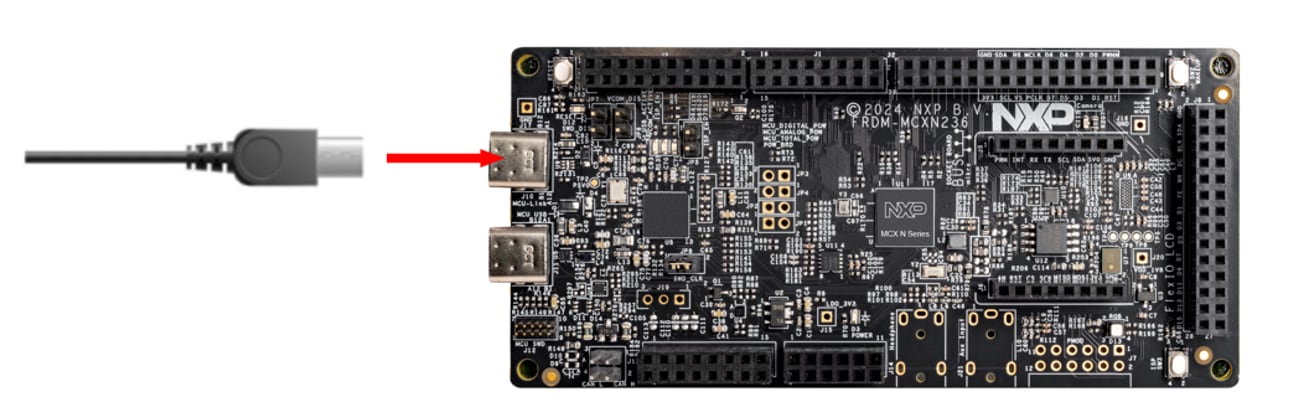

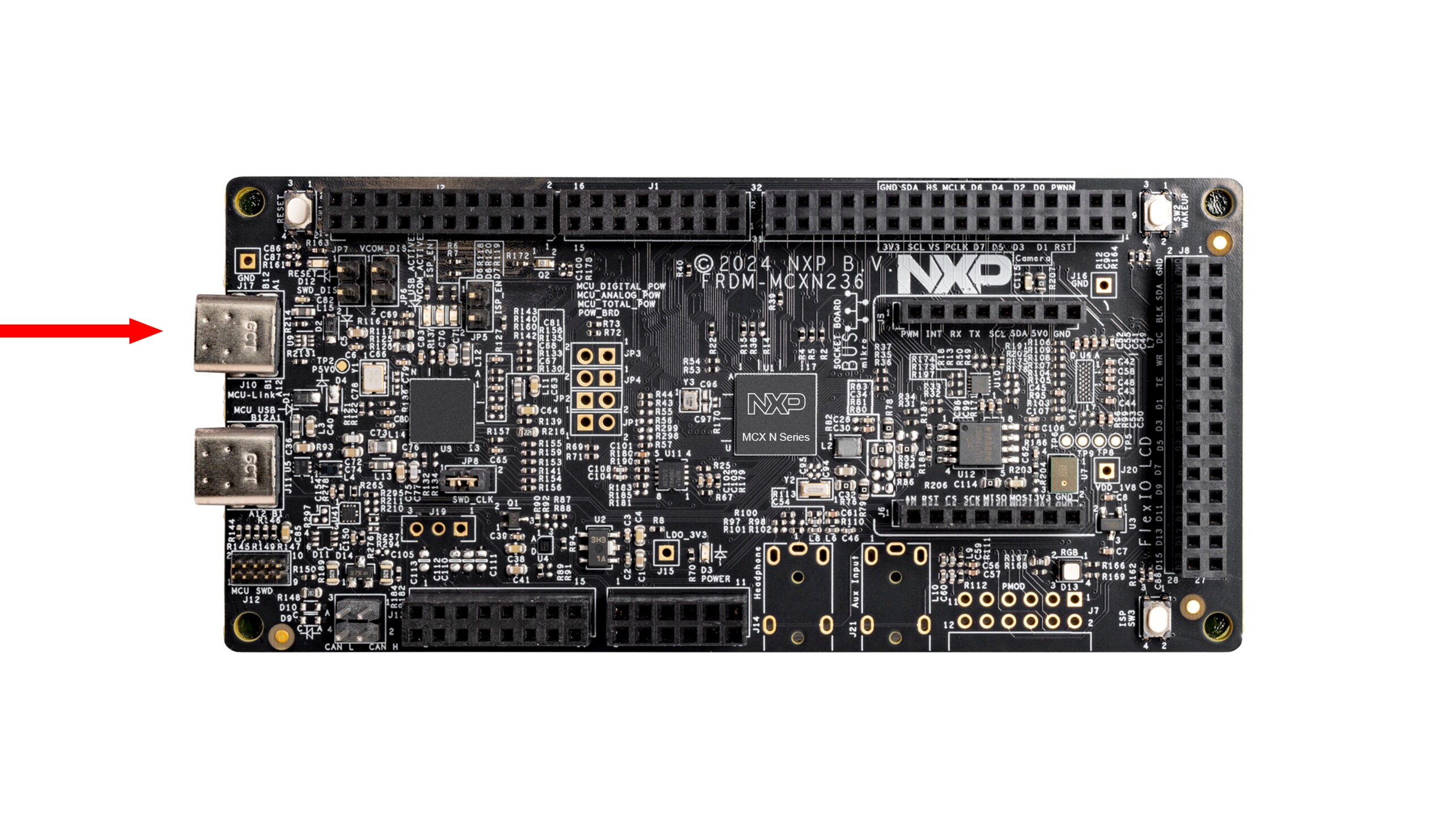

Connect a type-C USB cable from connector J10 to a host computer or power
supply to power up the board and run the demo program. At this point, you
should see the RGB LED blinking at a steady rhythm.
2. Get Software
2.1 Install Your Toolchain
NXP offers complimentary toolchains. Select either MCUXpresso IDE or MCUXpresso for VS Code.
Learn how to install VS Code for your host PC with the following tutorial.
Want to use a different toolchain?
If you need help choosing, explore the MCUXpresso Suite of Software and Tools.
The MCUXpresso SDK includes support for other tools such as IAR , KEIL and command-line GCC .
2.2 Jump Start Your Design with the MCUXpresso SDK
The MCUXpresso SDK is complimentary and includes full source code under a permissive open-source license for all hardware abstraction and peripheral driver software. You may install the MCUXpresso SDK directly form the MCUXpresso SDK website . Click on the button below to open this board's SDK builder.
2.3 MCUXpresso Config Tools
The MCUXpresso Config Tool is an integrated suite of configuration tools that guides users in creating new MCUXpresso SDK projects, and also provides pin and clock tools to generate initialization C code for custom board support, It is fully integrated as a part of MCUXpresso IDE and also as a separate tool if using a different IDE.
Click the Get MCUXpresso Config Tools below to get the Config Tools installer.
2.4 Programming and Provisioning Tools
The MCUXpresso Secure Provisioning (SEC) Tool is a GUI-based application provided to simplify the generation and provisioning of bootable executables on NXP MCU devices. We recommend all users to begin with the MCUXpresso Secure Provisioning (SEC) tool for trial run and mass production use. It supports secure programming and device provisioning on NXP's microcontrollers at the production stage.
After downloading the tool, you can find the user guide under the ‘Help’ tab. Follow the instructions for your board in the ‘Processor-specific workflow’ chapter.
Note: For advanced users that need a more customizable set-up we also offer a command-line tool that is useful when interfacing with a custom or partner programming tool. The Secure Provisioning SDK (SPSDK) is an open source development kit with its source code released on GitHub and PyPI.
3. Build, Run
If one or more of the demo applications or driver examples sounds interesting, you're probably wanting to know how you can build and debug yourself. The Getting Started with MCUXpresso SDK guide provides easy, step-by-step instructions on how to configure, build, and debug demos for all toolchains supported by the SDK.
3.1 Build and Flash Application using MCUXpresso IDE
The following steps will guide you through the hello_world demo application using MCUXpresso IDE for the Cortex-M33 application. The MCUXpresso IDE installation and the SDK for the MCX N-Series can be found at the section Get Software of this Getting Started guide.

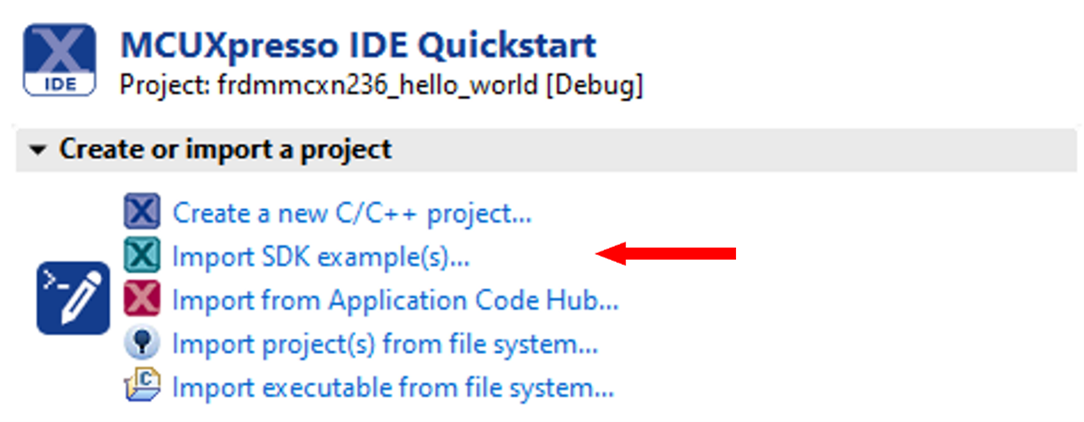

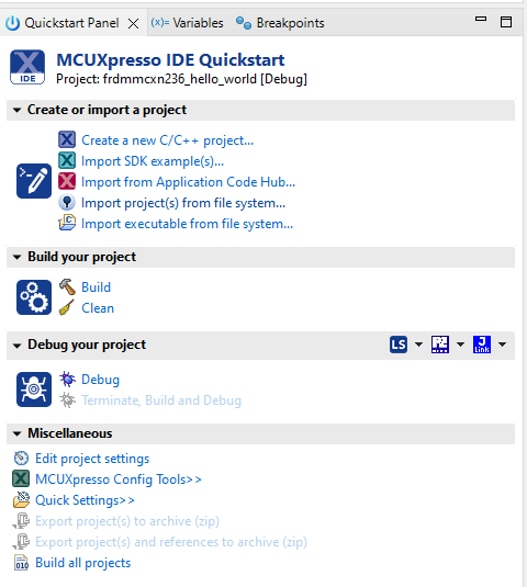

- Find the Quickstart Panel in the lower left-hand corner.

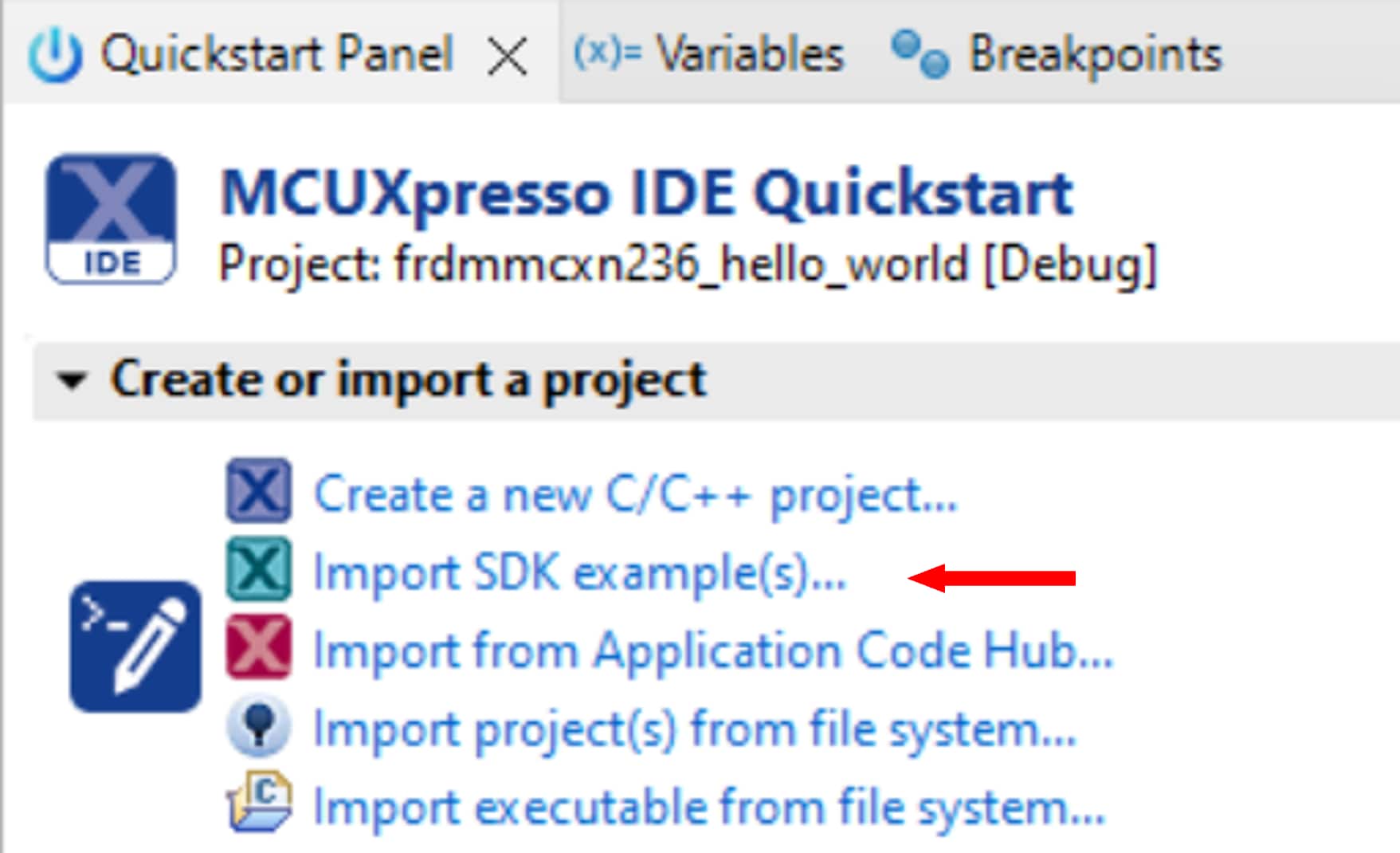

- Then click on Import SDK example(s).
-

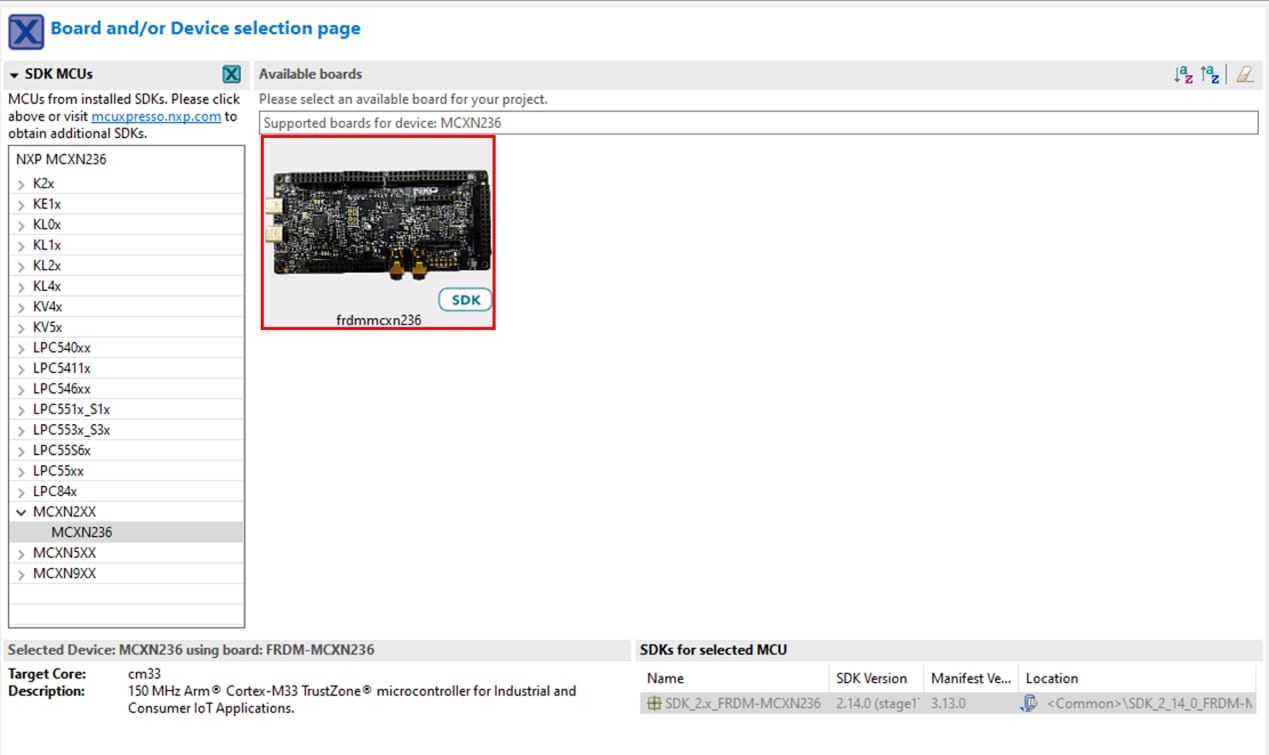

Click on the FRDM-MCN236 board to select an example that can run on that board, and then click on Next.
-

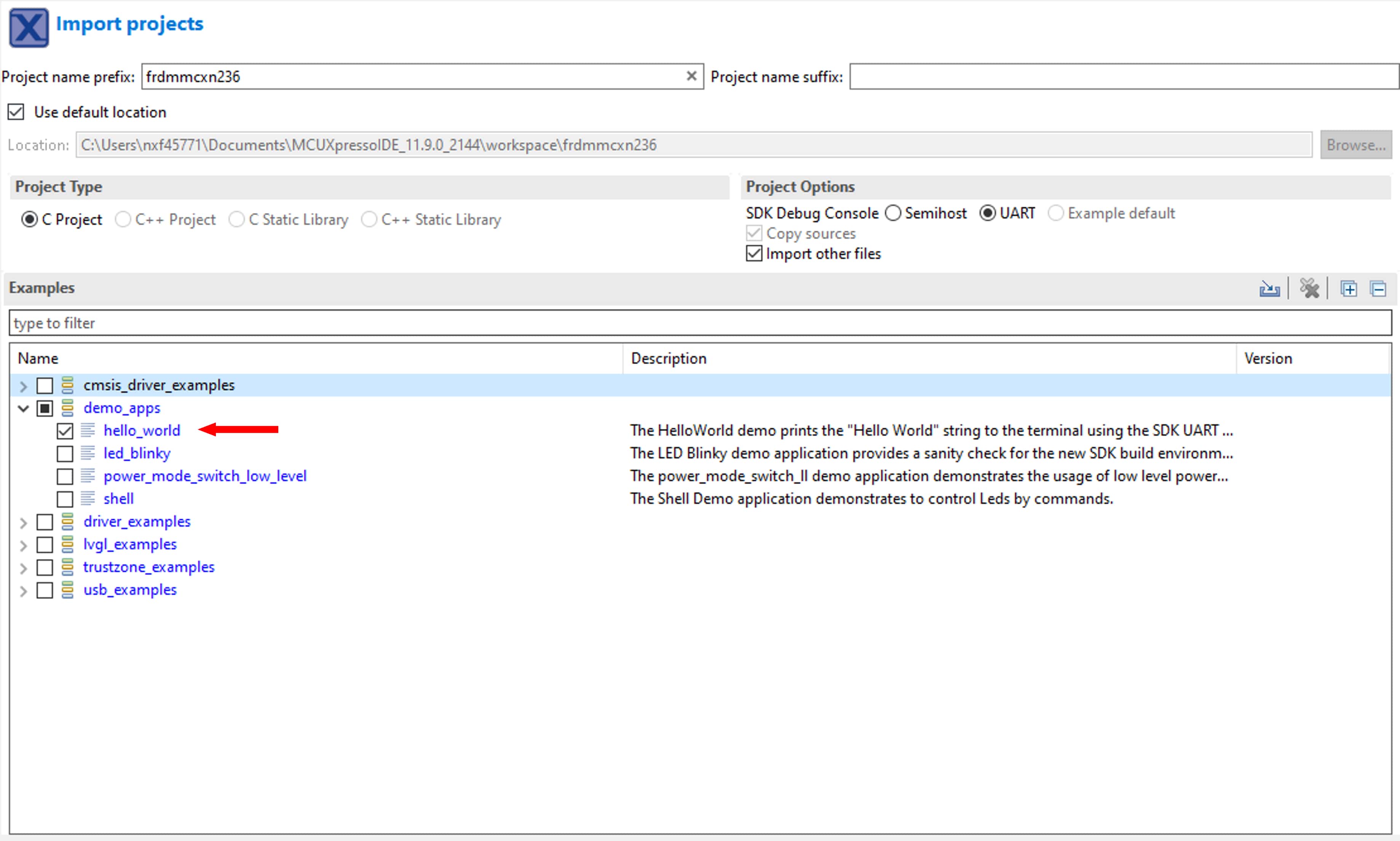

Use the arrow button to expand the demo_apps category, and then click the checkbox next to hello_world to select that project.
To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the
project options. Then, click on Finish

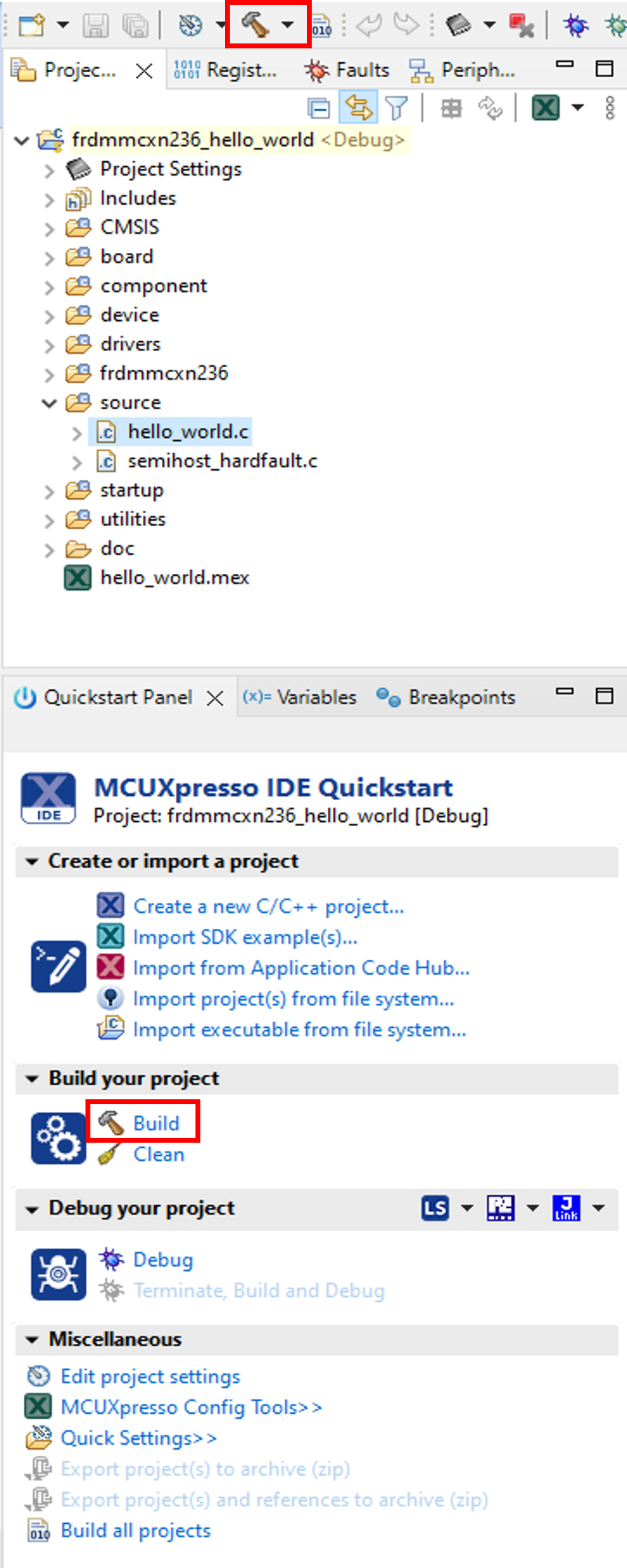

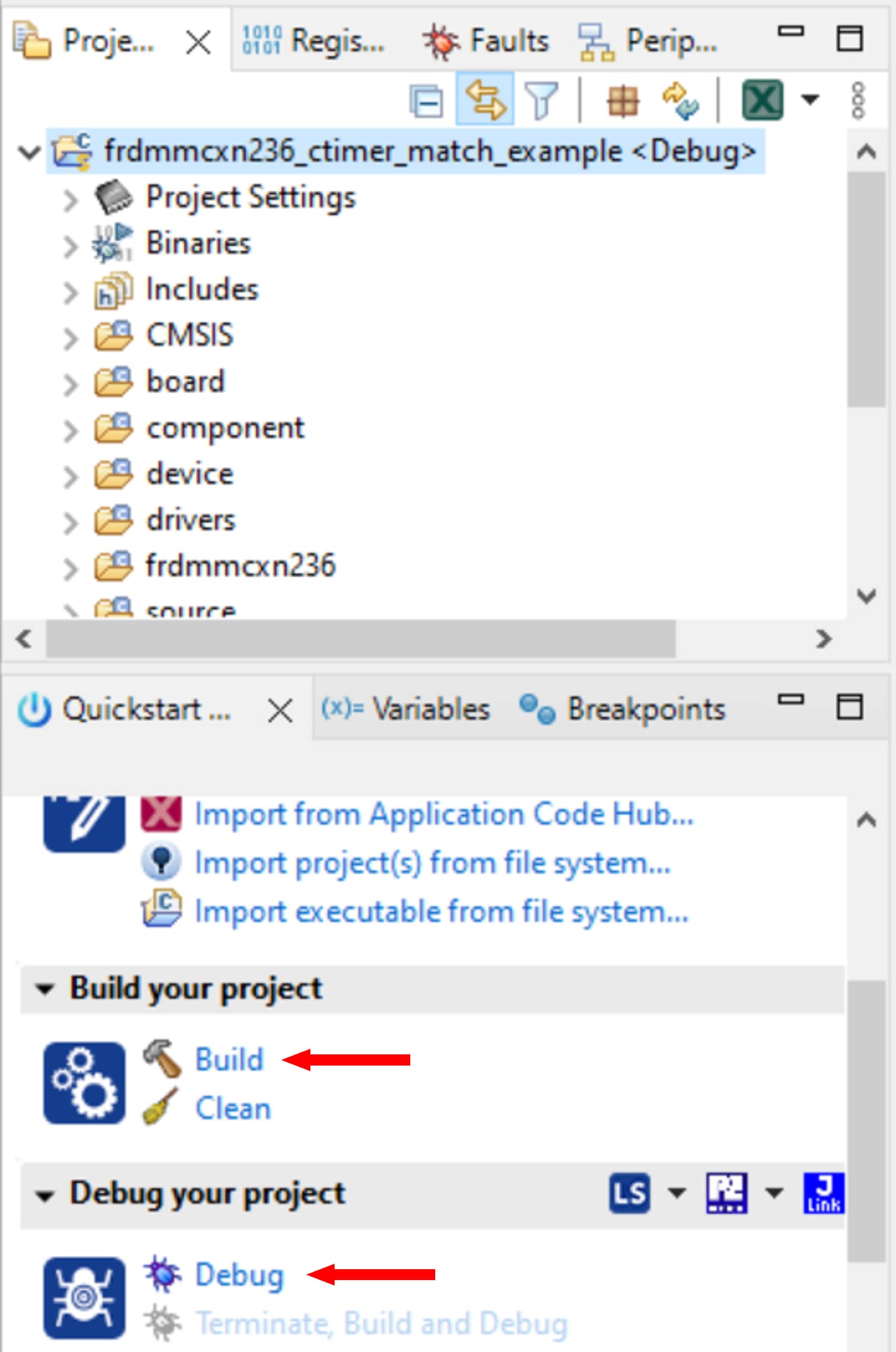

- Select the project and build it by either clicking on the “build icon” in the shortcuts provided above or by clicking “Build” in the Quickstart Panel
- The project should build without presenting any errors or warnings in the console
- Connect the board to your computer with the type C USB to
J10'MCU-LINK' port
-

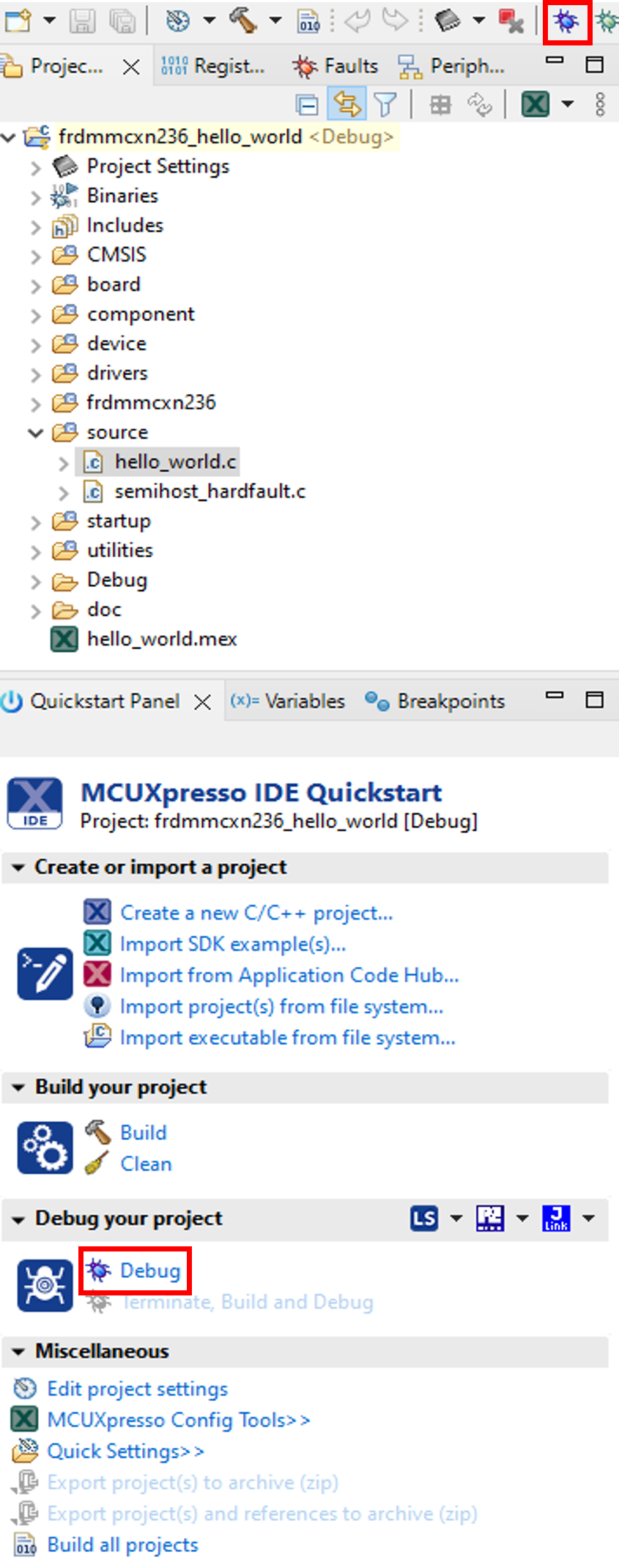

Download the application to your board by either clicking on the “debug” icon above or clicking on “Debug” in the Quickstart
Panel

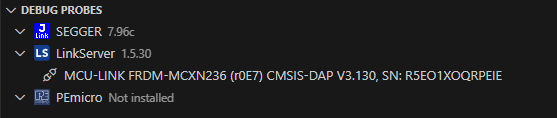

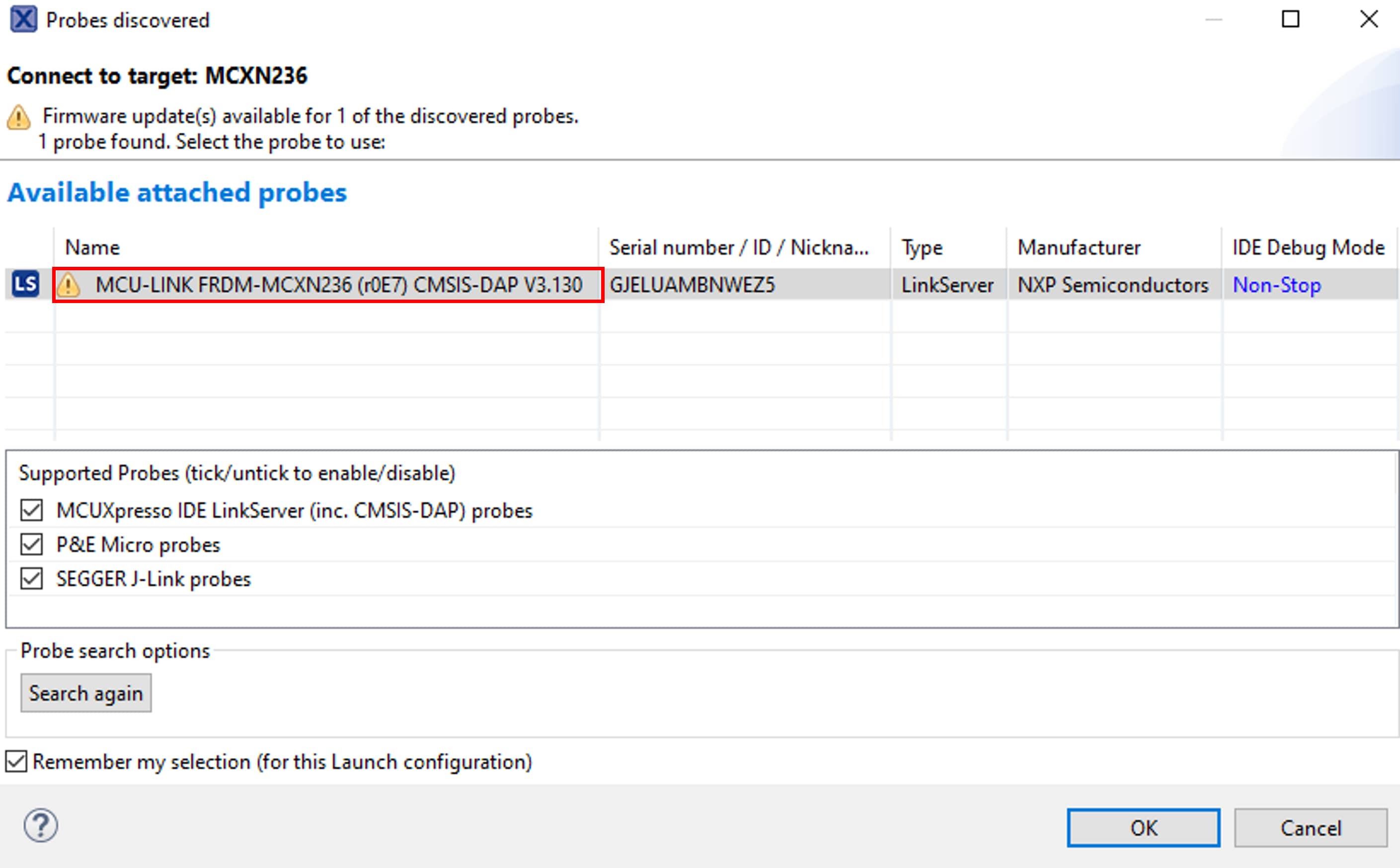

- Select the MCU-Link CMSIS-DAP debug probe
-
Open up a serial terminal to be able to see the application's output. Select the “Terminal” window and press the “new
terminal” icon
-

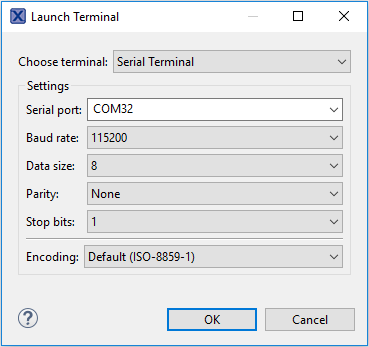

Choose a “Serial Terminal” and then set the UART settings to 115200 baudrate, 8 bit data size, no parity and 1 stop bit. Press
OK
-

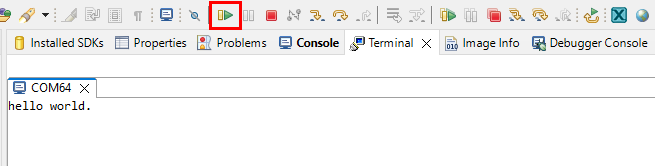

Run the application by pressing the “run” icon. See the output printed on the terminal
3.2 Build and Flash Application with Alternative Toolchains
MCUXpresso for Visual Studio Code (VS Code) provides an optimized embedded developer experience for code editing and development. Learn how to build and flash an application with VS Code.
Using a different toolchain?
This demo is also available for IAR and KEIL.
4. Create
4.1 Clone an Example Project from MCUXpresso IDE
The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a CTimer to generate a PWM signal and make GREEN LED blink
-
Find the Quickstart Panel in the lower left-hand corner and click on Import
SDK example(s)
-
Click on the FRDM-MCXN236 board to select that you want to import an example
that can run on that board and then click on Next
-
Use the arrow button to expand the

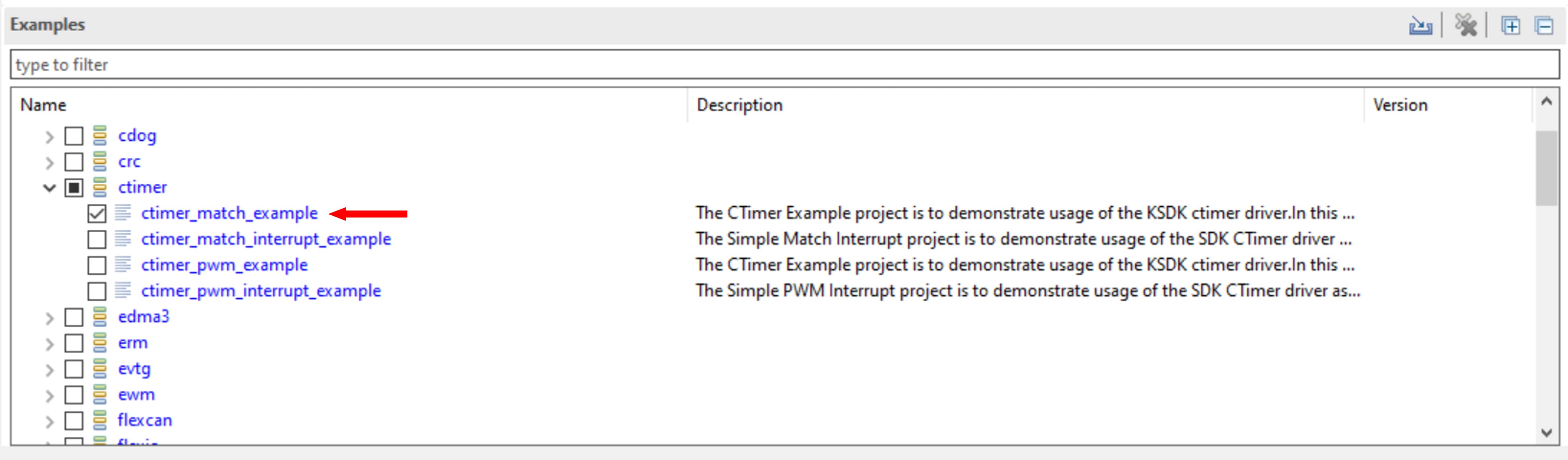

driver_examplescategory, then expand the ctimer examples, click on the check box next toctimer_match_exampleto select it. To use the UART for printing (instead of the default semihosting), Select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish
-
Click on the
“frdmmcxn236_ctimer_match_example”project in the Project Explorer View and build, compile and run the demo as described in the previous section
- You should see the GREEN LED blinking at a steady rhythm.
- Terminate the debug session
4.2 Clone an Example Project using MCUXpresso Config Tool for 3rd Party IDE
The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a CTimer to generate a PWM signal and make RGB LED blink.
- Open the MCUXpresso Config Tool
-

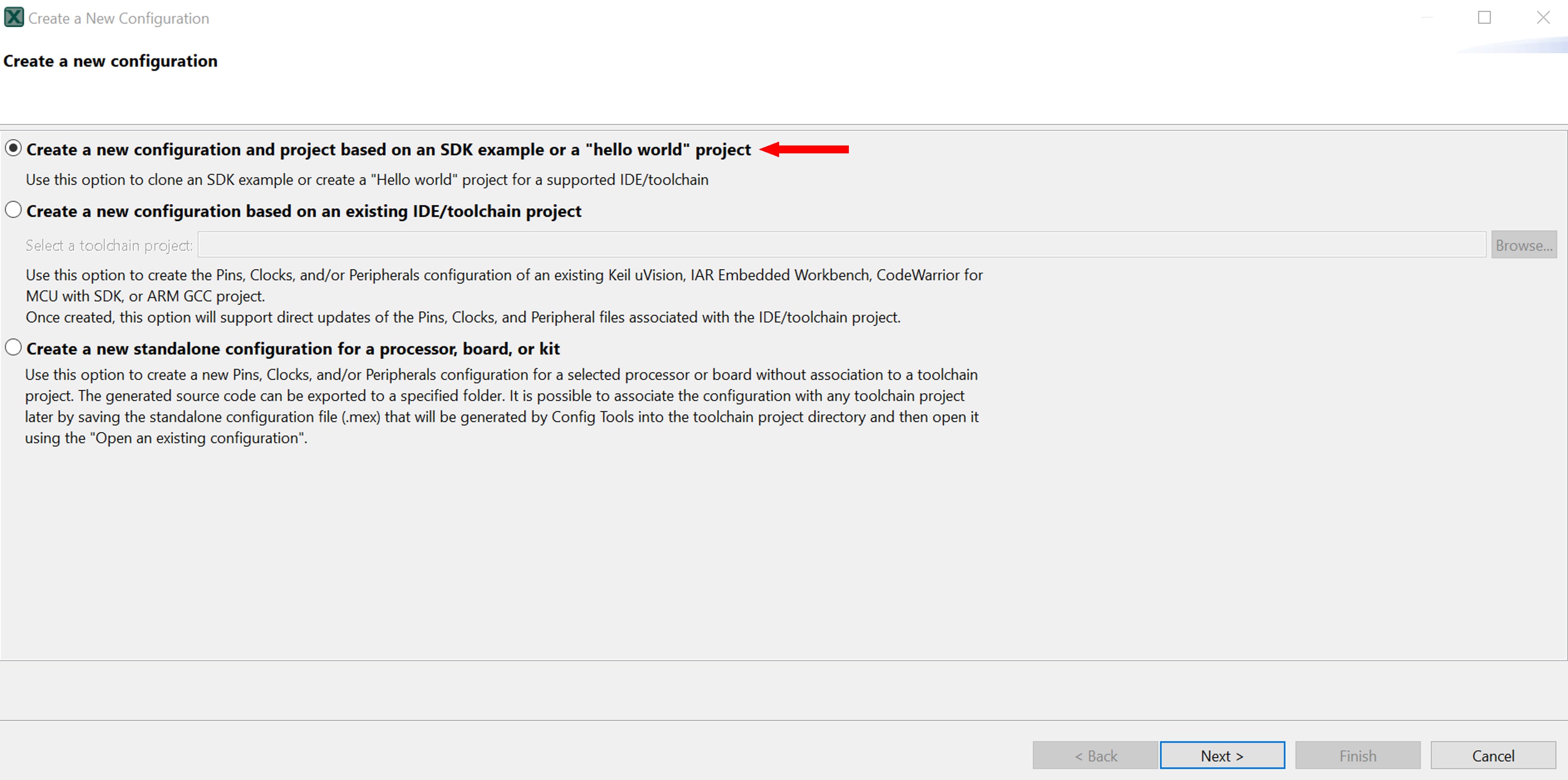

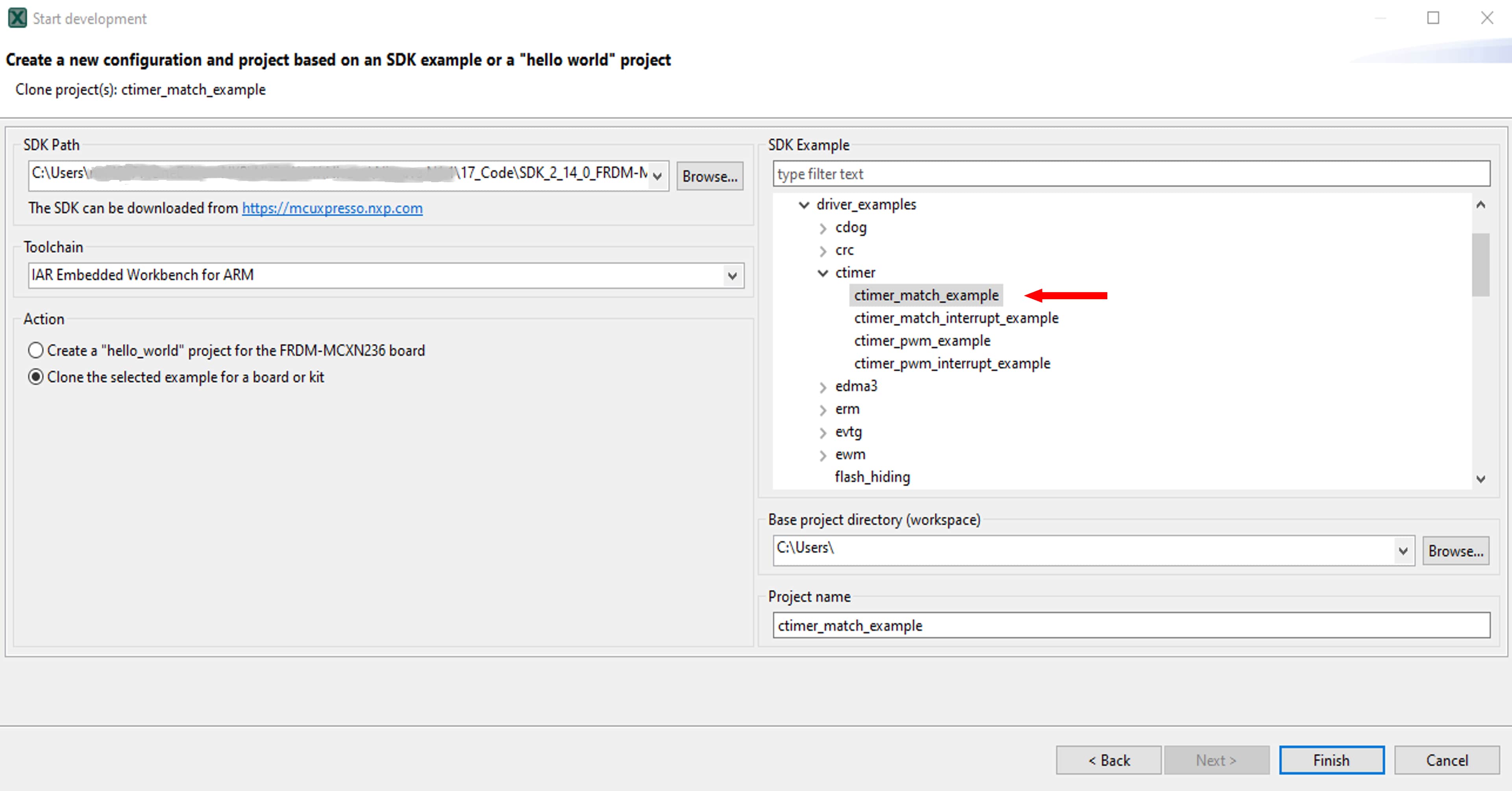

In the wizard that comes up, select the “Create a new configuration based on
an SDK example or hello word project” radio button and click on Next.
-
On the next screen, select the location of the MCUXpresso SDK. The SDK
package must be unzipped beforehand. Then select the IDE that is being used.
Note that only IDEs that were selected in the online SDK builder when the
SDK was built will be available and click on clone select example. Then
select the project to clone. For this example, we want to use the
ctimer_match_exampleproject. You can filter for this by typing “ctimer” in the filter box and then selecting the“ctimer_match_example”project. You can then also specify where to clone the project and the name. Then click on Finish.
- After cloning go to the directory you selected and open the project for your IDE. Import, compile and run the project as done in previous sections.
- You should see GREEN LED blinking
- Terminate the debug session
4.3 Use MCUXpresso IDE Pins Tools

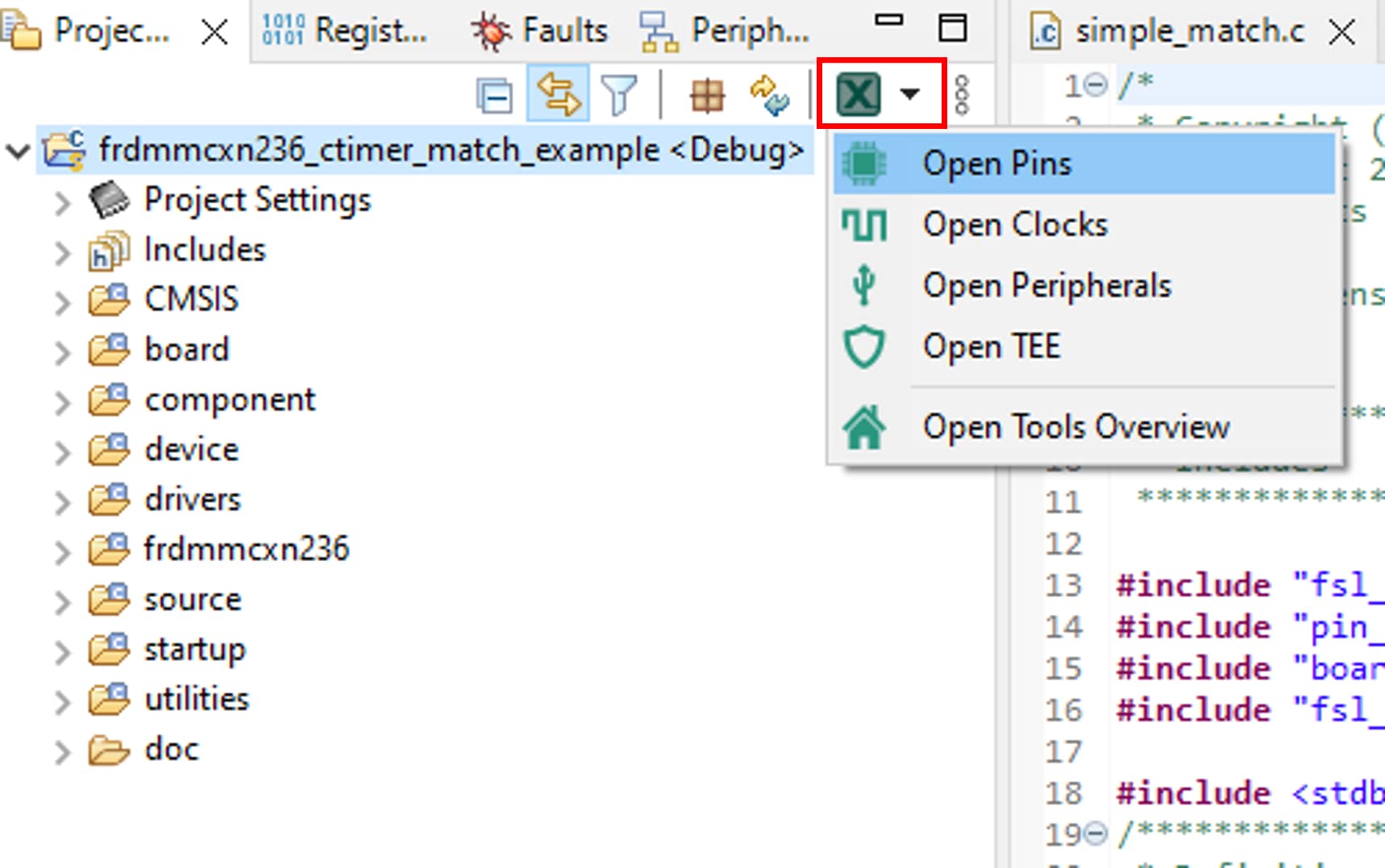

- Open the pins tool by selecting “ConfigTools” on the top right hand of the file explorer window and then select “Open Pins”

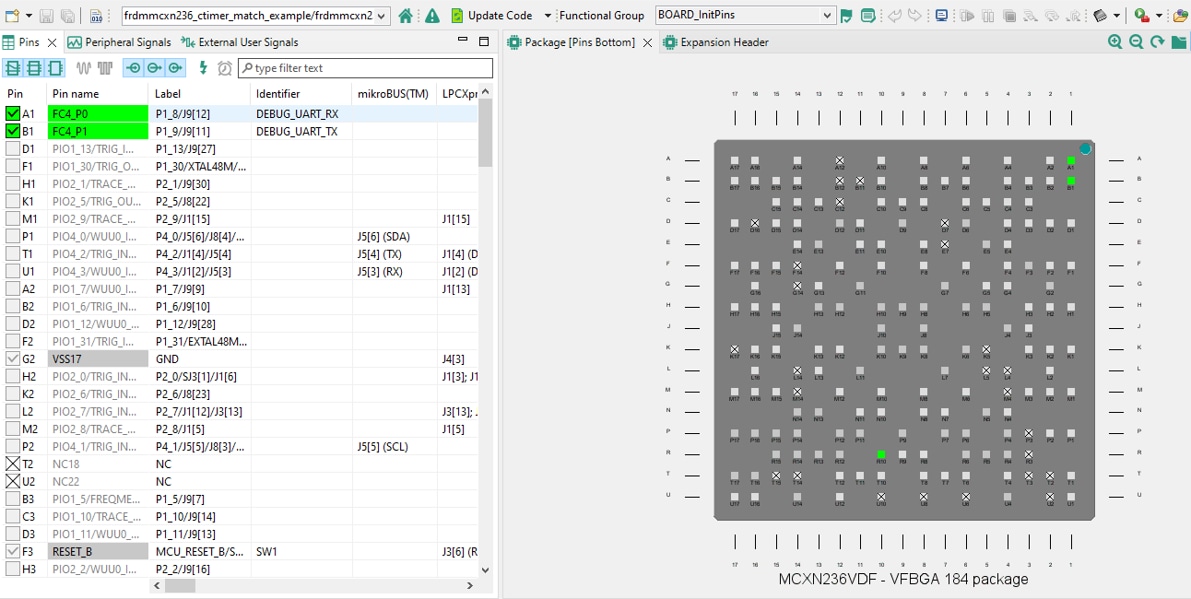

- The pins tool should now display the pin configuration for the ctimer project
4.4 Use the Pins Tools to Modify the LED Routed Pin
-
We'll use MCUXpresso IDE for the rest of the instructions, but the same
steps can be done in MCUXpresso Config tools for third party IDEs. In the

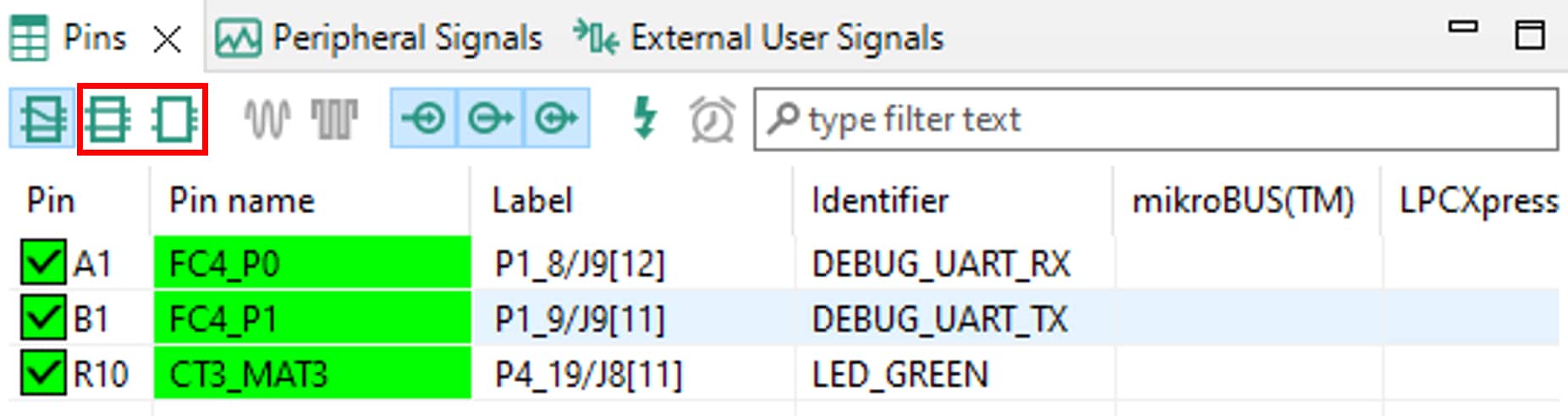

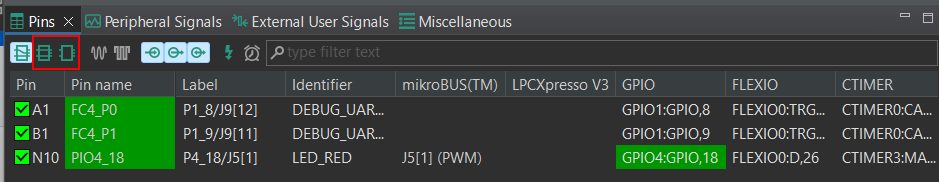

Pins view deselect “Show dedicated pins” and “Show no routed pins”
checkboxes to see only the routed pins. Routed pins have a check in a green
box next to the pin name. The functions selected for each routed pin are
highlighted in green.

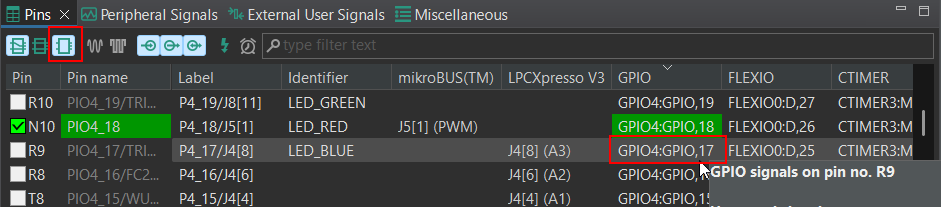

- In the current configuration, PIO4_19 is routed as the outputs of the CTimer. Let's add a second Ctimer Match output and enable the BLUE LED.
-

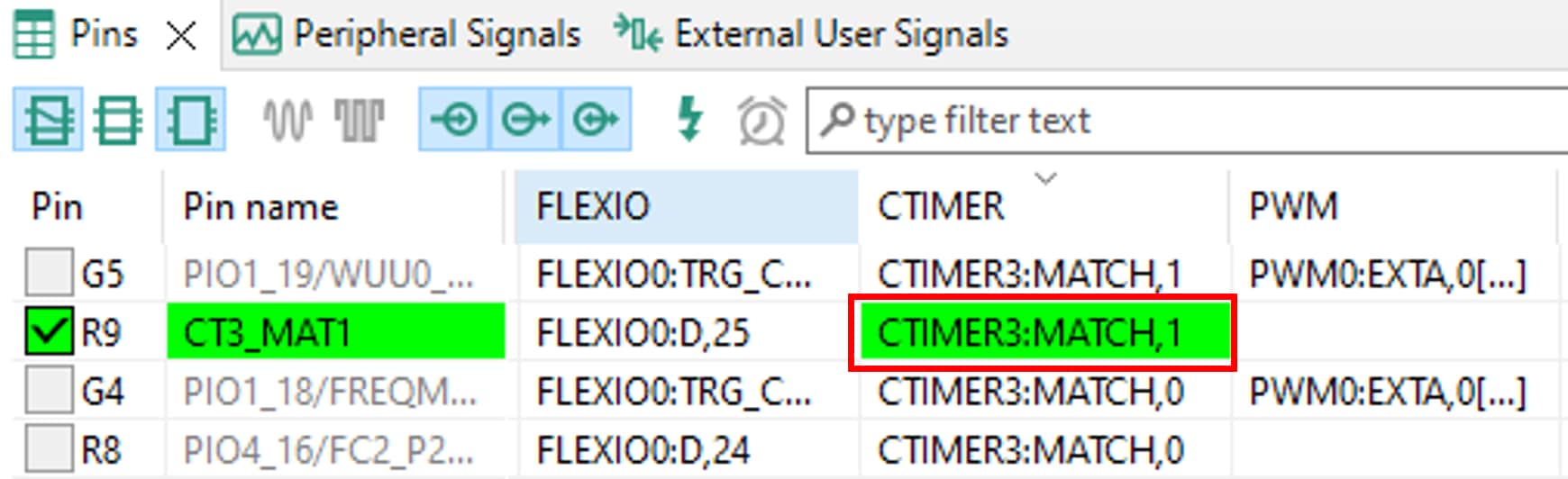

Select “Show no routed pins” to see the other options. To enable the second Ctimer Match Output, browse the column for Ctimer and select and output. In this example, we will select, Ctimer3 Match 1 on PIO4_17. Select the item in the Ctimer column to enable
-

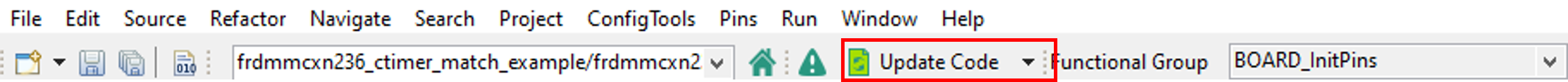

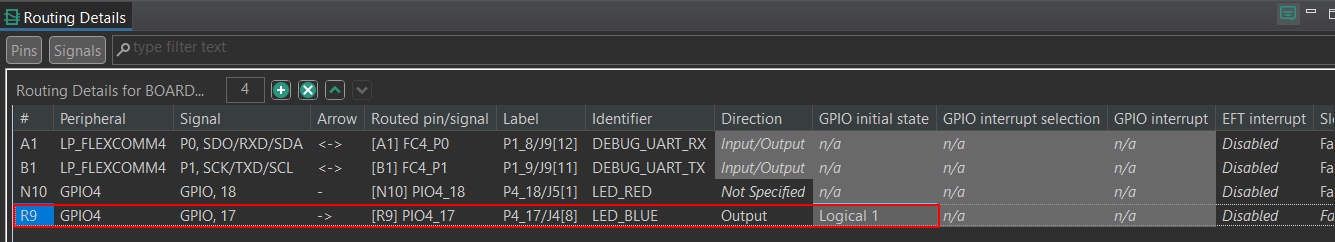

Now it's time to implement these changes into the project by exporting the new updated pin_mux.c and pin_mux.h files that are generated by the Pins tool. Click on Update Code in the menu bar

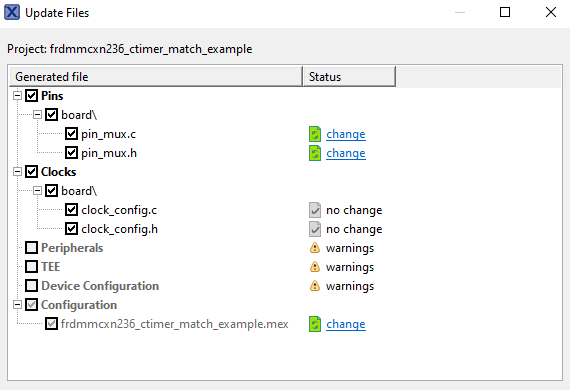

- The screen that pops up will show the files that are changing and you can click on “diff” to see the difference between the current file and the new file generated by the Pins tool. Click on “OK” to overwrite the new files into your project

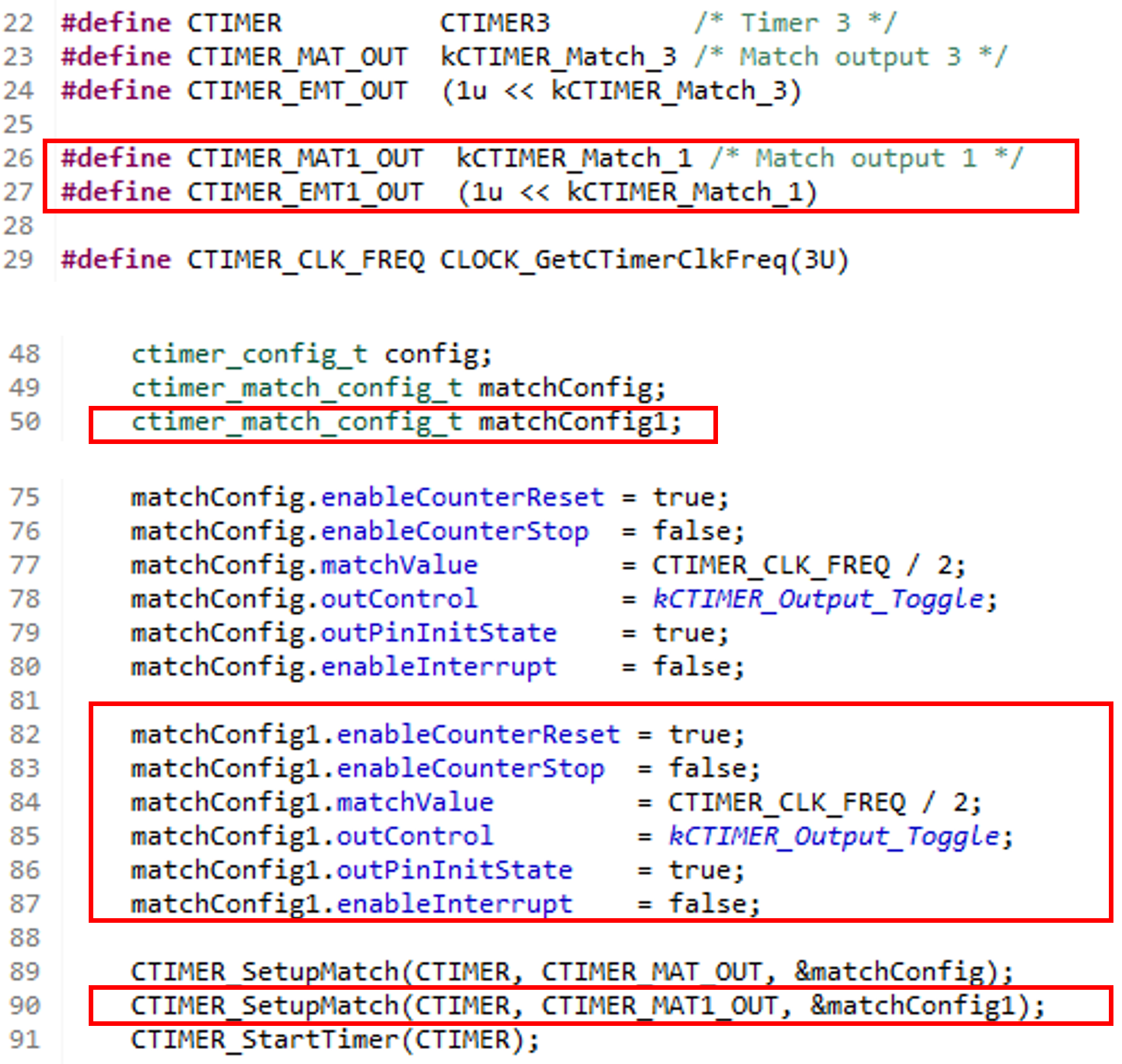

- Let's add some additional code to the example. Open simple_match.c file and add the following code for the second ctimer output
- Build and download the project as done in the previous section.
- Run the application. You should now see the Green and Blue LED synchronized blink.
- Terminate the debug session
5. MCUXpresso Developer Experience
Check out each of the following sections, to learn about the ecosystem provided for flexible protyping and development. In the video below, we will introduce you to the FRDM platform, the full-featured EVK and the compatible shields for extended capabilities. In addition we will walk you through our Application Code Hub portal where we provide numerous application examples through NXP's Github.
5.1 FRDM Platform, Full Feature EVK and Shields
For quick prototyping platforms, we offer both the low-cost FRDM platform and the full-featured EVK.
FRDM Development Boards come with standard form factor and headers, easy access to MCU I/Os, on-board MCU-Link debugger and a USB-C cable. Our full featured evaluation kits include extended I/O and interface access, extendibility with Wi-Fi and additional MCU-Link features. There are also many compatible Click Boards and/or Arduino shields. For those that are supported with an Open CMSIS Pack examples may be available on ACH, but if not many of them are easy to use via serial interface like I2C, SPI and UART, for which we provide drivers with examples in the MCUXpresso SDK.
5.2 Application Code Hub
The Application Code Hub further enhances our MCUXpresso Developer Experience by giving developers an interactive dashboard to quickly locate software. Visit the ACH today to start exploring or discover additional details and benefits of the new interactive Application Code Hub.
Software accessible from Application Code Hub is located in NXP’s GitHub repository so it can be easily accessed and cloned from that location directly.
5.3 Demo Walkthrough
The following demo walks us through importing a project from ACH using a system based on the FRDM platform with a motor control shield and a low cost LCD. Although your evaluation board may differ from this system, the following steps can be replicated and used for all supported platforms.
System Design Guides
Terminal Application
MCUXpresso IDE Terminal Tutorial
The most recent versions of MCUXpresso IDE count with a terminal emulation application. This tool can be used to display information sent from your NXP development platform's virtual serial port.
- Open the MCUXpresso IDE

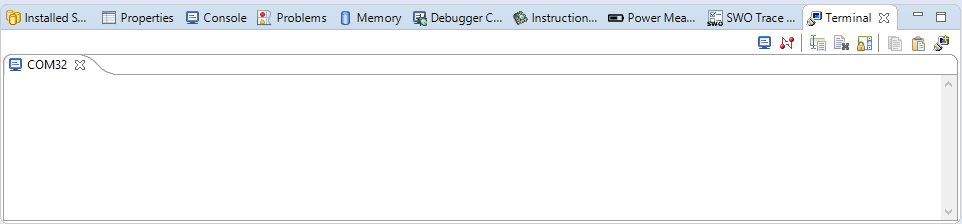

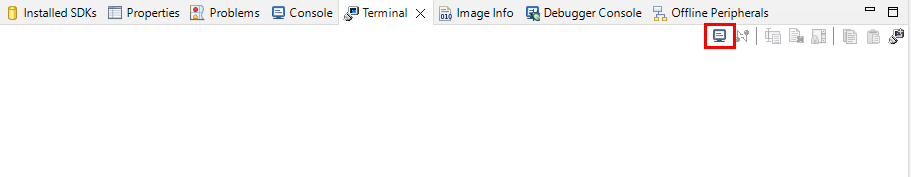

- Launch the MCUXpresso IDE terminal by clicking on the “Open a Terminal” button on the top of the IDE or press “Ctrl + Alt + Shift + T”

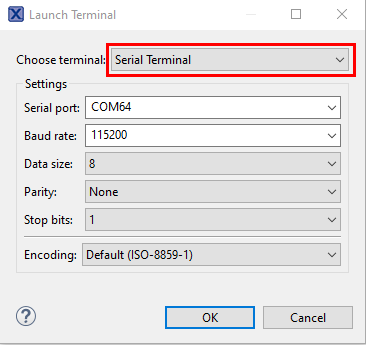

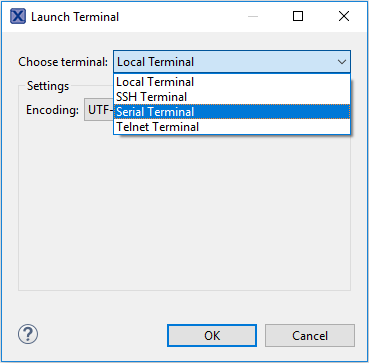

- Select Serial Terminal
- Configure the serial port settings (using the LPC-Link2 COM port number) to 115200 baud rate, 8 data bits, no parity and 1 stop bit, then press “OK” button
- Verify that the connection is open. If connected, MCUXpresso IDE will look like the figure below at the Terminal view
- You're ready to go
Tera Term Tutorial
Tera Term is a very popular open source terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.
- Download Tera Term from SourceForge. After the download, run the installer and then return to this webpage to continue

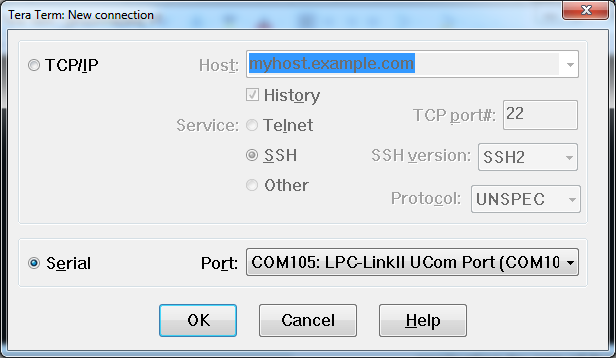

- Launch Tera Term. The first time it launches, it will show you the following dialog. Select the serial option. Assuming your board is plugged in, there should be a COM port automatically populated in the list
- Configure the serial port settings (using the COM port number identified earlier) to 115200 baud rate, 8 data bits, no parity and 1 stop bit. To do this, go to Setup → Serial Port and change the settings
- Verify that the connection is open. If connected, Tera Term will show something like below in it's title bar
PuTTY Tutorial
PuTTY is a popular terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.
- Download PuTTY using the button below. After the download, run the installer and then return to this webpage to continue
- Launch PuTTY by either double clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected

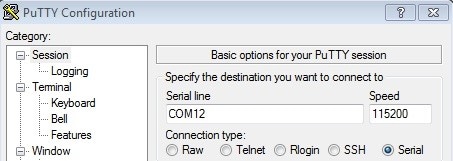

- Configure In the window that launches, select the Serial radio button and enter the COM port number that you determined earlier. Also enter the baud rate, in this case 115200

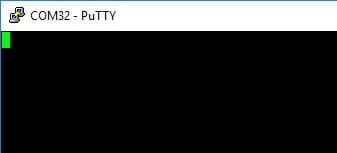

- Click Open to open the serial connection. Assuming the board is connected and you entered the correct COM port, the terminal window will open. If the configuration is not correct, PuTTY will alert you
- You're ready to go
Toolchains
Running a Demo Using IAR Embedded Workbench
The following steps will guide you through opening the hello_world application. The instructions for compiling and debugging the Cortex M33 core are covered in the instructions below.
Build an Example Application
Please use IAR Embedded Workbench for Arm version 9.50.1 or above.
- First, unzip the previously downloaded FRDM-MCXN236 SDK package
- Open the desired example application workspace. Most example application workspace files can be located using the following path:
-

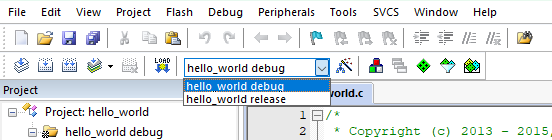

Select the desired build target from the drop-down. For this example, select the

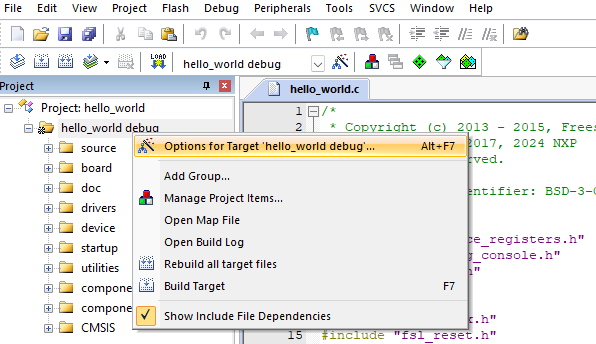

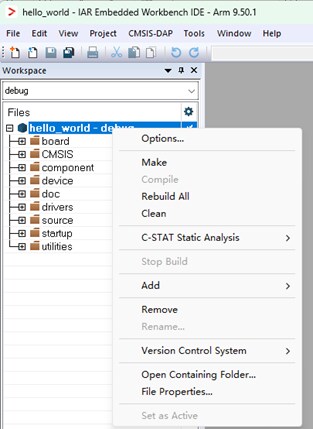

“hello_world - debug”target - Open the project properties by doing a right-click on the project and selecting Options

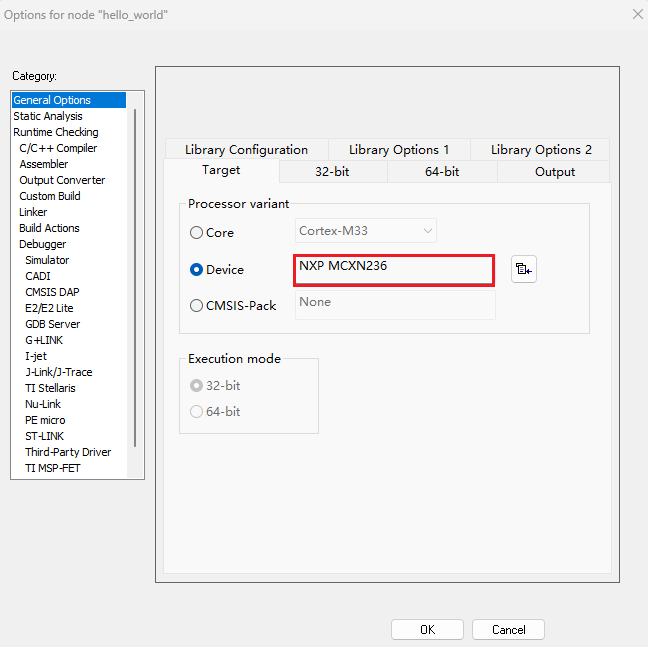

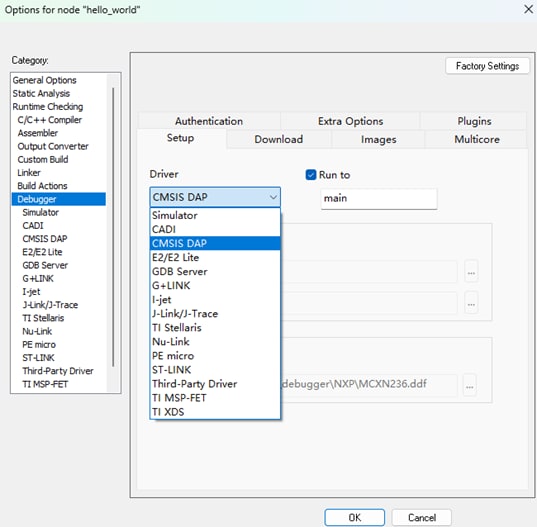

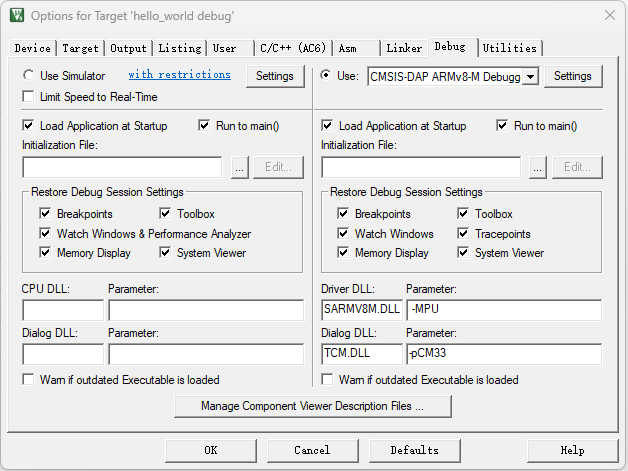

- Now go to the Debugger section and change the debugger driver to CMSIS DAP . Press the OK button

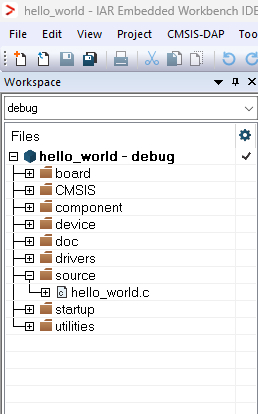

- To build the application, click the “Make” button, highlighted in red below

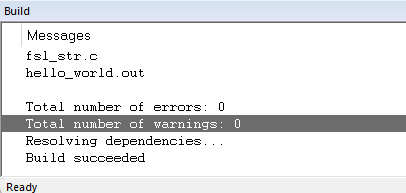

- The build will complete without errors
<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/iar
Run an Example Application
- Connect the development platform to your PC via USB cable to
J10“MCU-Link USB” - Click the "Download and Debug" button to download the application to the target
- The application is then downloaded to the target and automatically runs to the
main()function - Run the code by clicking the "Go" button to start the application
- The
hello_worldapplication is now running on the Cortex-M33
Running a Demo Using Keil® MDK/µVision®
Install CMSIS Device Pack
After the MDK tools are installed, Cortex® Microcontroller Software Interface Standard (CMSIS) device packs must be installed to fully support the device from a debug perspective. These packs include things such as memory map information, register definitions and flash programming algorithms. Follow these steps to install the appropriate CMSIS pack. Please use MDK-Arm Microcontroller Development Kit (Keil)® version 5.38.1 or above.
- Open the MDK IDE, which is called µVision. Inside the IDE, select the "Pack Installer" icon
-
In the Pack Installer window, search for “MCXNxxx” to bring up the MCXNxxx family. Click on the MCXNXXX name, and then
in the right-hand side you'll see the NXP:
MCXNXXX _DFPpack. Click on the “Install” button next to the pack. This process requires an internet connection to successfully complete - After the installation finishes, close the Pack Installer window and return to the µVision IDE
Build the Example Application
The following steps will guide you through opening the mu_polling application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path. <install_dir>/boards/ <sdk_board_name>/<example_type>/<application_name</mdk
MCUXpresso for VS Code
Build and Run an Example with VS Code
Getting Started MCX N Family
Pre-Requisites
This example is written for Windows10, but MCUXpresso for Visual Studio Code can also be easily installed on MacOS and Linux.
SDK_2_14_0_FRDM-MCXN236.zip)Hardware Requirements
- FRDM-MCXN236
- 1 Type-C USB Cable
Preparing the Hardware
This lab targets the NXP MCX N evaluation kit (FRDM). The kit provides a rich set of connected peripherals to help evaluate the device. It includes an on-board Debug Probe. The debug probe is pre-programmed with CMSIS-DAP firmware for this lab. To display debug messages in the examples, the lab connects to the comm port available through the same debug probe.
Open MCUXpresso for VS Code
- Open Visual Studio Code, click on MCUXpresso icon [x] on the left panel
- To move forward with next step click on "Installed Repositories” panel that will appear as shown in below picture
Add NXP MCUXpresso SDK
The NXP extension adds tools to help add software repositories into the Visual Studio Code workspace. The software repository can be provided from three sources:
- Remote git URL
- NXP MCUXpresso SDK archive file
- Existing git folder
This section will import the MCUXpresso SDK for the MCX N microcontroller using the SDK archive file provided as pre-requisite.
-

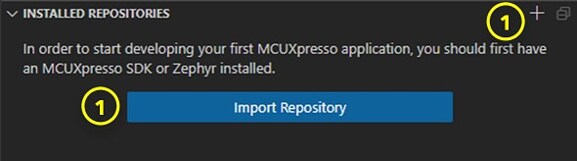

Click “Import Repository” button in the INSTALLED REPOSITORIES panel. A button is visible before the first repository is added.
In the future, users can click the
'+'symbol in the top right of the Installed Repositories section for adding repositories - Select the “LOCAL ARCHIVE” option to import the provided MCX N SDK archive file

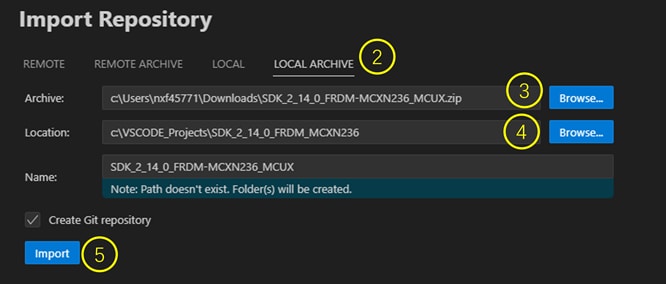

- Browse to the location of the MCX N SDK file for the “Archive” entry. (In the Downloads folder)
-
Browse to a folder to be a common “Destination” to store SDKs. (i.e.
C:\Users\NXP\VSCODE_Projects) Enter a name for the new SDK, in this case\SDK_2_14_0_FRDM-MCXN236 - Click Import. The MCX N SDK is extracted to the local folder and added to your INSTALLED REPOSITORIES panel
Import Example Project
The NXP extension provides a PROJECTS pane to help developers import projects into their workspace. The user has three sources for importing a new project: a Repository; an existing local project; an archived project. This section will import an MCX N example from the SDK just added to the INSTALLED REPOSITORIES panel.
-

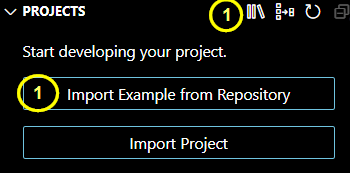

Click Import Example from Repository. A button is visible when no projects are in the current workspace. In the future, the
symbols in the top right of the Projects section can be used to import additional projects. Click
'II\'symbol to add Repository Examples. Click'[+]'symbol to import projects on the PC that were created earlier by the MCUXpresso for VS Code extension. Click the'[ ]'symbol to import a project in an archive file created earlier by the MCUXpresso for VS Code extension -

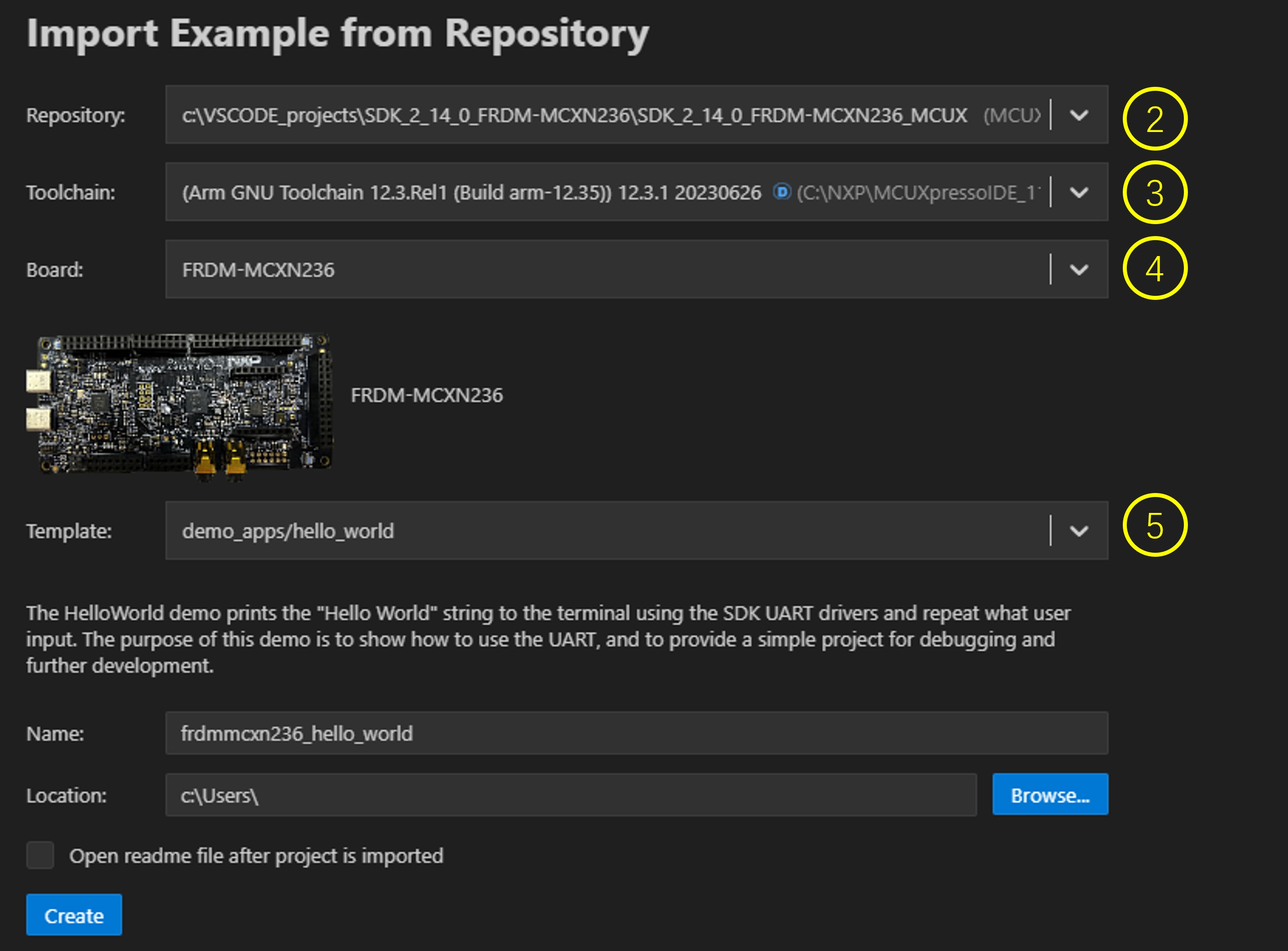

Fill out the appropriate information in the “Import Example from Repository” window. Click “Choose a repository” to select
from a list of available/installed repositories. Select
SDK_2_14_0_FRDM-MCXN236 -
Click “Choose a toolchain” to select from a list of available build tools. The MCUXpresso Installer provides a default option
of “(ARM GNU Toolchain 12.3.Rel1 (Build arm-12.35)) 12.3.1 20230626”. The tool also looks in other default locations for MCUXpresso IDE installations. These may be
listed as alternative options for GNU Arm toolchains. Select the
“(ARM GNU Toolchain 12.3.Rel1 (Build arm-12.35)) 12.3.1 20230626”option - Click “Choose a board” to view the boards supported in the selected repository. Longer list of boards can be filtered by typing in the available selection area. Select FRDM-MCXN236. After a board is selected, a picture of the board will be displayed to help confirm the correct selection
-

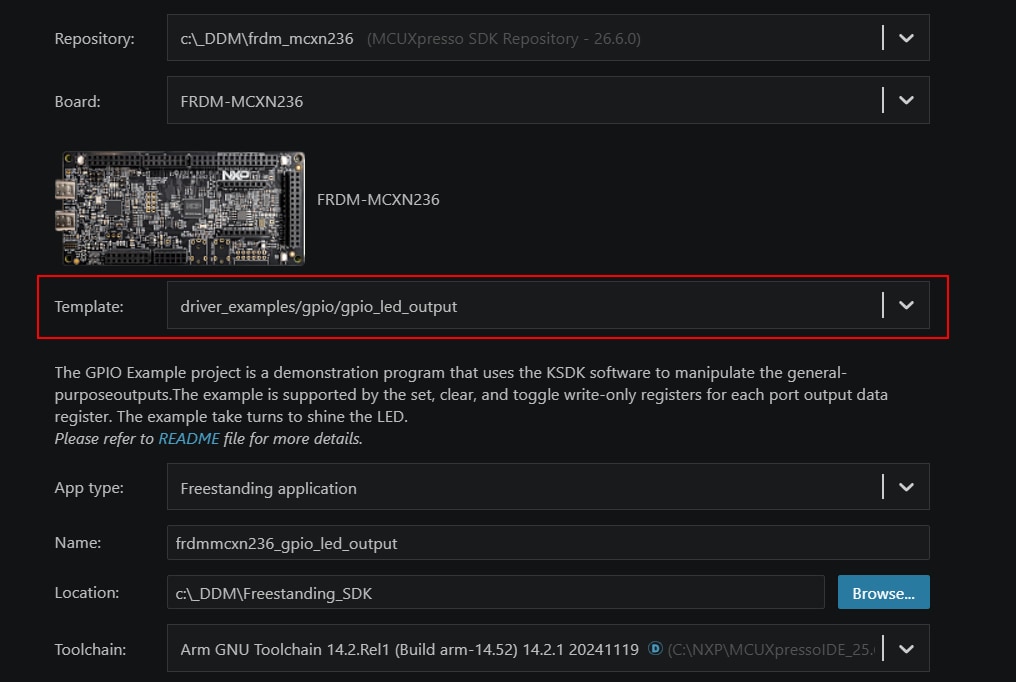

Click “Choose a template” to show a list of available examples in the selected repository. The long list of examples can be
filtered by typing in the available selection area. (i.e. type Hello to filter Hello World examples) Select
demo_apps/hello_world - Click Browse for the “Location” field. Choose a folder location for new projects to be created
- Click Create. This will add a new
“Hello World”example for the MCX N to your Projects panel

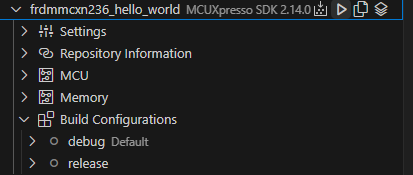

Build Project
The build process is configured when the project is created. The user can initiate the build from an icon in the project view. To the right of the project name, the build icon will start the build for that project. You need to return to the MCUXpresso extension perspective by clicking the “X” icon in the left navigation pane. You may still be in the Explorer perspective from prior section.

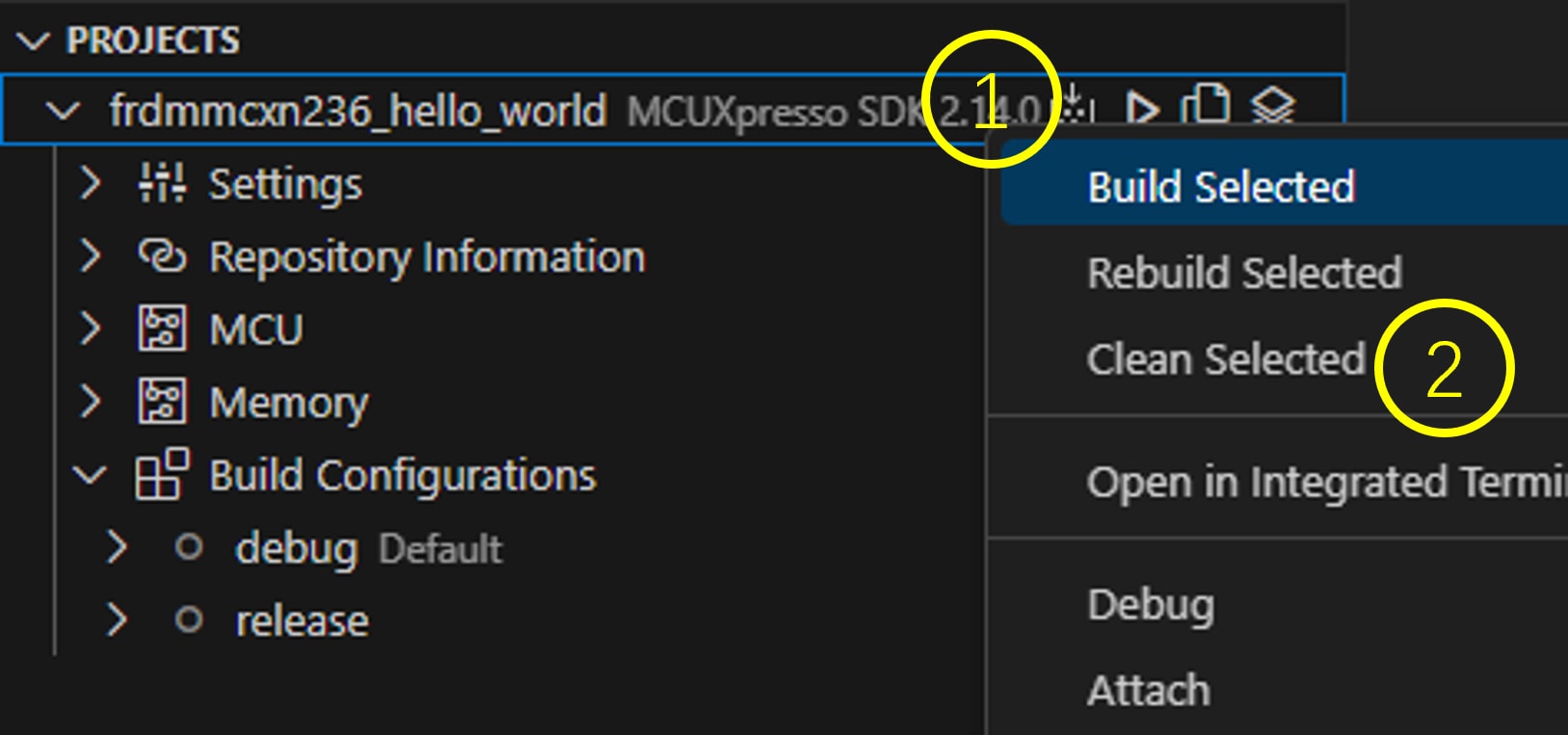

- Click the build icon to the right of the hello_world project. This will start the build process. The OUTPUT terminal tab at the bottom of the screen displays the build progress
- Alternatively, you can right click on the project name to display additional build options. Clicking Rebuild or Clean Build will remove build artifacts from prior builds to allow the project to be built again. Otherwise, clicking Build Selected will result in an output of “no work to do"

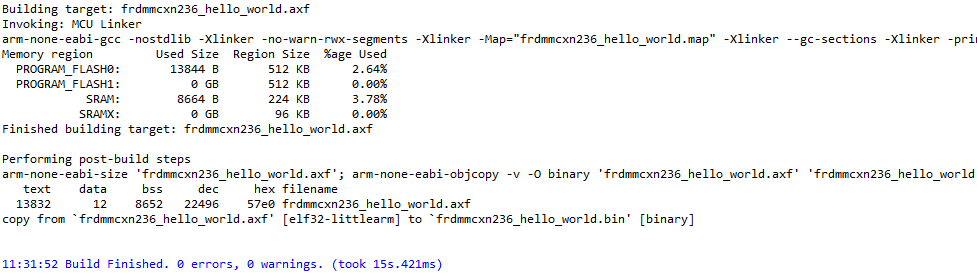

The build process should complete with an exit code of 0… Success!
Flash and Debug Project
MCUXpresso for Visual Studio Code allows users to program and debug projects for NXP microcontrollers. These steps require that Debug Probe drivers are properly installed and configured. MCUXpresso for Visual Studio Code allows the use of popular debug probes from NXP, Segger and PEmicro. MCUXpresso Installer included the option to properly install support for the different debug probes.
The built project output binary is flashed to the target board before launching a debug session. The Debug session provides controls and views to help the developer analyze the operation of the project. The following steps will show how to successfully flash and program the MCX N FRDM evaluation kit.
- Confirm that the on board debug probe is connected to the PC USB port
- Click the Refresh arrow in the DEBUG PROBES pane to detect connected Debug Probes
- Starting a Debug session begins by programming the target device with the built project image. Click the common Play triangle icon to the right of the selected project
- Start Debug: Another place to launch debug
- Debug Controls: Pause; Step Over; Step Into; Step Over; Restart; Stop
- Variables: Locals and Registers
- Watch: Add expressions to continue to monitor
- Breakpoints: Add, Toggle and View targeted code
- Call Stack: List of active subroutines in the program
- Status Ribbon: Bottom of screen changes status text and/or color to orange
Visual Studio Code Debug sessions provide a different “Run and Debug” perspective for the user. This is reflected by the Bug

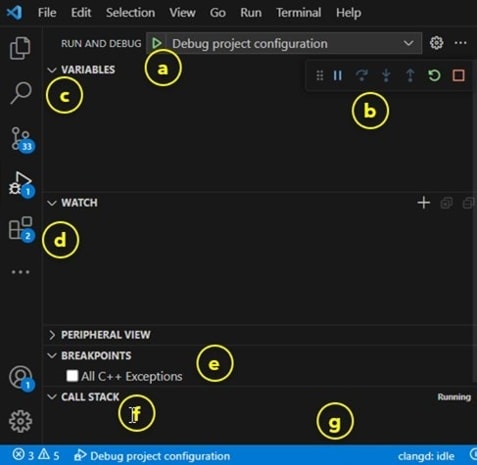

icon in the primary left navigation pane now being highlighted. Key tools are labeled in the following image:
Debugger Firmware
SEGGER J-Link Tutorial
-
Download J-Link software
Enter to SEGGER download page: Segger

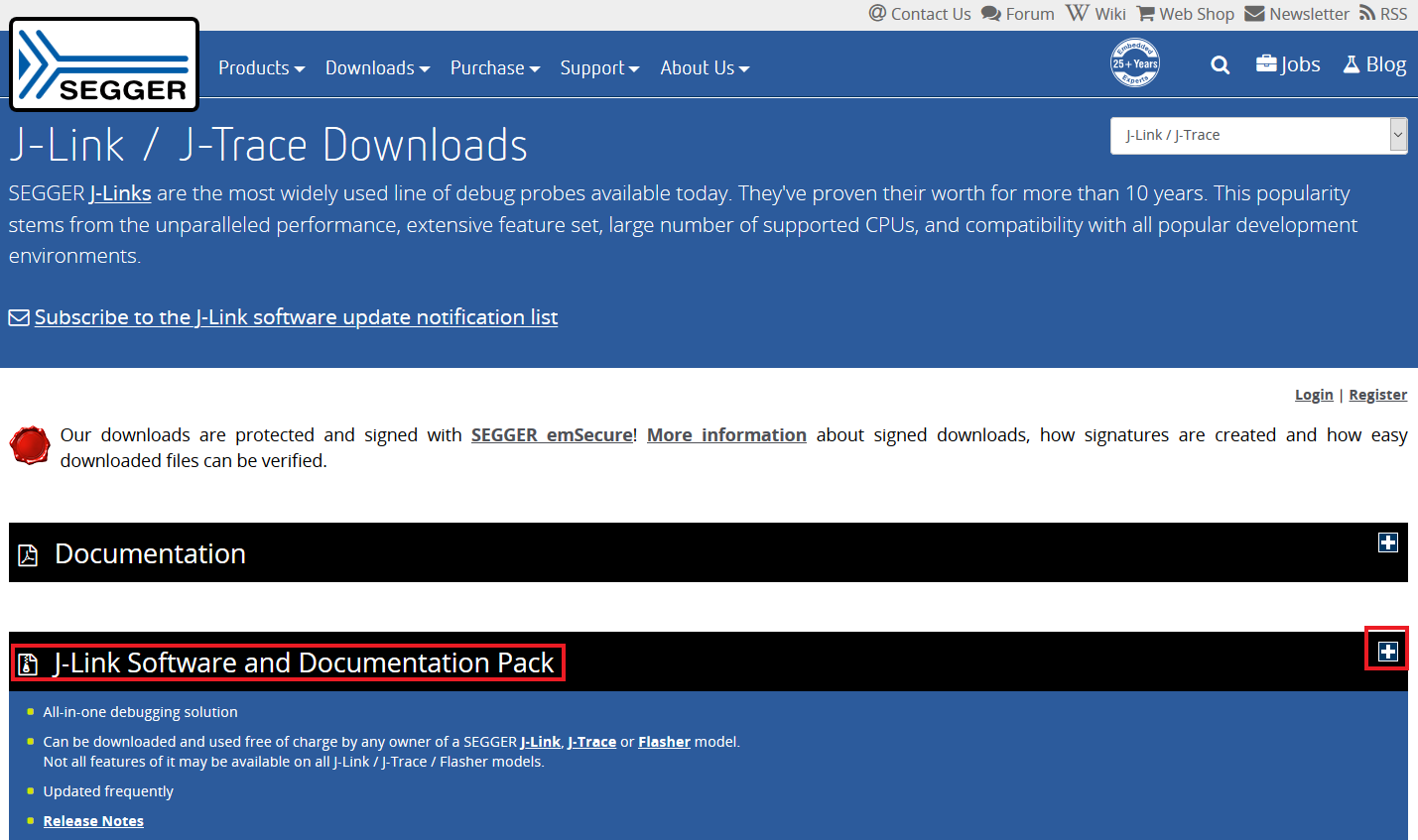

- Expand “J-Link Software and Documentation Pack” section
-

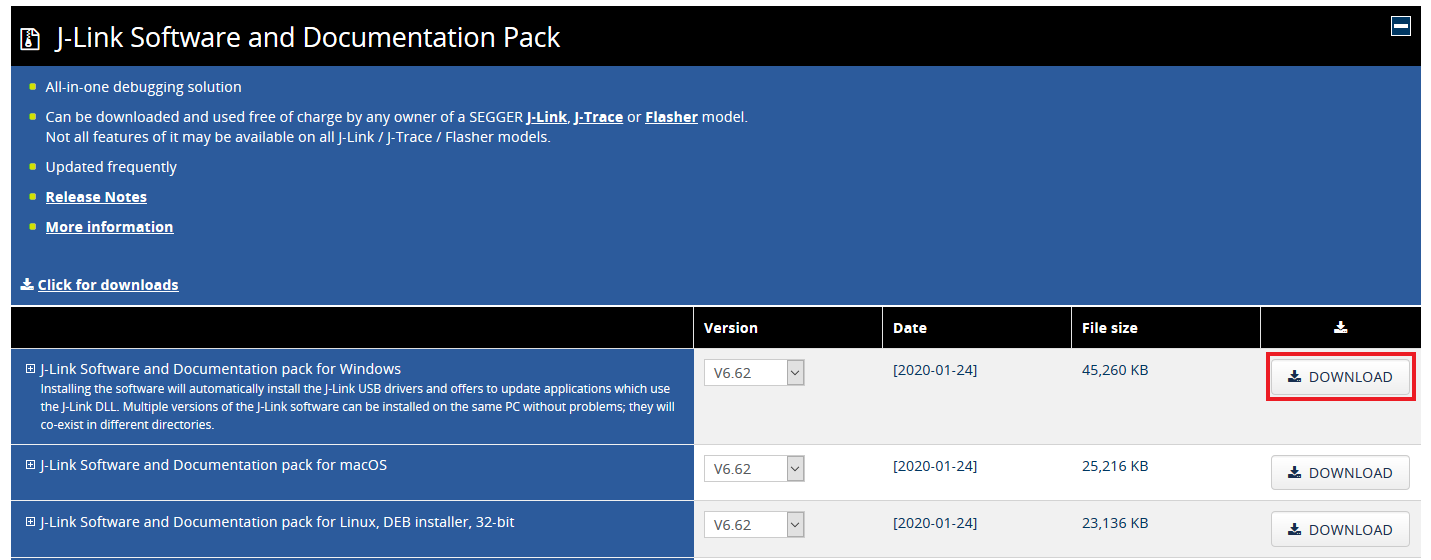

Select the software that matches your OS and download the newest version
Accept terms and download the software

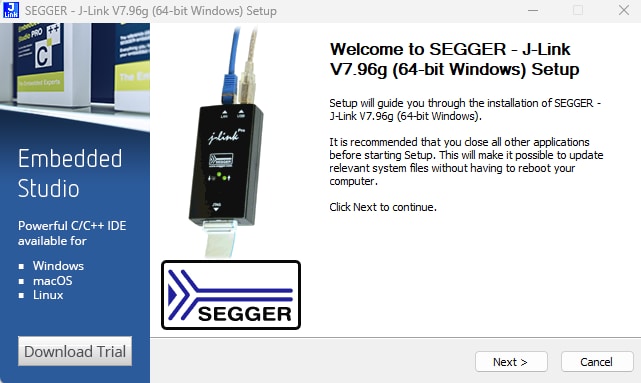

- Execute the
.exefile you just downloaded by doing double-click. Follow the setup instructions until the J-Link installation is complete
- You're ready to go
Boot Options
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| CANopen bootloader on MCXN | An application note that describes the necessary steps and requirements to implement the CANOpen bootloader. | |
| Flash memory Swap Feature on MCXN | This application note describes how to use the flash remap feature on the MCX N series. | |
| Using the Flash Command Controller | Programming to flash using the flash command controller on MCX N Series. |
Tools and Reference
MCUXpresso Secure Provisioning Tool A GUI-based application provided to simply the generation and provisioning of bootable executables on NXP devices.
Power Management
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| DCDC Usage for MCXNx4x/Nx3x Series MCU | This application note is designed to provide a better understanding of the on-chip DCDC module. | |
| Low power implementation on MCXN236 | This application note describes the different power modes of MCX N23x and how to configure different power modes. | |
| MCX Nx4x Power Management user guide | This user guide covers the elements of the MCXN's power capabilities and settings. |
MCUXpresso SDK Examples
Power Mode Switch Example
The power mode switch demo application demonstrates the usage of low level power-related drivers to enter/exit different power modes.
Path: <SDK_PATH>\boards\frdmmcxn236\demo_apps\power_mode_switchSecurity and Integrity
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| MCX N94x OTA update by using SB3 file | An application note that describes how to to an over-the-air update using a secure container with the secure update feature of MCX N. | |
| Encryption and decryption enablement using NPX module on SPSDK tool | Using the SPSDK command-line tool to enable the PRINCE module for encryption/decryption on the internal flash. | |
| Encryption and Decryption Enablement using IPED Module on SPSDK tool | Using the SPSDK command-line tool to enable the PRINCE module for encryption/decryption on the internal flash. | |
| Encryption and decryption enablement using NPX module on SEC tool | Using the Secure Provisioning Tool GUI-based tool to enable the PRINCE module for encryption/decryption on an external flash. | |
| Encryption and decryption enablement using IPED module on SEC tool | Using the Secure Provisioning Tool GUI-based tool to enable the PRINCE module for encryption/decryption on the internal flash. | |
| Secure Boot for MCX N | Using the Secure Provisioning Tool GUI-based tool to enable the PRINCE module for encryption/decryption on the internal flash. | |
| MCX N Debug authentication using SEC tool | This application note describes how to enable secure boot as well as how to use the device management for secure manufacuring. | |
| MCX N-series MCUs Provisioning for Security | An application note that describes how to use the debug authentication feature on the MCXN series. | |
| Building the Right Level of Security for Your Application With NXP and IAR Systems | In this training, experts from NXP and IAR Systems will give you an overview of C-Trust, show you how to take advantage of the available features and implement "security out of the box" |
MCUXpresso SDK Examples
ELS and PKC Examples
The ELS PKC application provides examples, which demonstrate usage of most available algorithms and a cryptolibrary lightweight testing.
Path: <SDK_PATH>\boards\frdmmcxn236\els_pkc_examples\els_hash Path: <SDK_PATH>\boards\frdmmcxn236\els_pkc_examples\els_symmetric Path: <SDK_PATH>\boards\frdmmcxn236\els_pkc_examples\els_pkc_asymmetric Path: <SDK_PATH>\boards\frdmmcxn236\els_pkc_examples\els_pkc_commonTools and References
MCUXpresso Secure Provisioning Tool Secure Provisioning SDK (SPSDK) is an open source development kit with its source code released on GitHub and PyPI.
SPSDK GitHub Secure Provisioning SDK (SPSDK) is an open source development kit with its source code released on GitHub and PyPI.
Wired Communication
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| Using SmartDMA for keyscan on MCX N Series | For mechanical repetitive tasks like keyscan, SmartDMA provides high and low levels for each row of the keyboard, then quickly reads the level of each column, and finally determines which button is pressed. | |
| USB Remote Wake-up on MCXN947 | This application note describes how to use the remote wake-up function on both full and high-speed USB interfaces. |
Audio
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| MCXN9XX MICFIL interface | This application note provides details on how to configure and use the MICFIL interface using different mechanisms. |
MCUXpresso SDK Examples
A vast variety of audio examples are provided.
Path: <SDK_PATH>\boards\frdmmcxn236\driver_example\sai Path: <SDK_PATH>\boards\frdmmcxn236\usb_examples\usb_device_composite_hid_audio_unifiedDisplay and Graphics
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| Using SmartDMA for graphic on MCX N | In this application note, the demo used is the simplest common DMA function. SmartDMA moves memory data to the FlexIO peripheral data register and FlexIO outputs data to the LCD. | |
| How to Use SmartDMA to Implement Camera Interface | Use smartDMA interface to implement a camera interface using MCX N series MCU. |
MCUXpresso SDK Examples
emWin GUI Demo
Demonstrates the graphical widgets of the emWin library.
Path:
<SDK_PATH>\boards\frdmmcxn236\emwin_examplesLVGL Examples
A demo application to show LVGL widgets.
Path:
<SDK_PATH>\boards\frdmmcxn236\lvgl_examplesTools and References
Graphical User Interfaces for NXP Microcontrollers
Learn more about your GUI options for NXP Microcontrollers.
LVGL open source Graphics LibraryLVGL is a free and open-source embedded graphic library with features that enable you to create embedded GUIs with intuitive graphical elements, beautiful visual effects and a low memory footprint.
GUI GuiderA user-friendly graphical user interface development tool from NXP that enables the rapid development of high quality displays with the open-source LVGL graphics library.
NXP emWin LibrariesNXP has partnered with SEGGER microcontroller to offer the high performance emWin embedded graphics libraries in binary form for free commercial use with any Arm Cortex-M microcontrollers from NXP.
GUI Development With emWin and AppWizardHow to use the different features in AppWizard to create complete, ready-to-run projects based on emWin.
Motor Control
| Documents and Videos | Application Note SW (if applicable) | Description |
|---|---|---|
| Permanent Magnet Synchronous Motor Field Oriented Control using MCX Microcontrollers | This application note describes the implementation of Field Oriented Control (FOC) application for a 3-phase Permanent Magnet Synchronous Motor (PMSM) on NXP MCX MCUs, including the N and A series. |
MCUXpresso SDK Examples
Motor control Demo
Demonstrates the PMSM motor control application.
Path:
<SDK_PATH>\boards\frdmmcxn236\demo_apps\mc_pmsmTools and References
FreeMASTER Run-Time Debugging Tool
Real-time debug monitor and data visualization tool that enables runtime configuration and tuning of embedded software applications.
Design Resources
Support
このページ
- 2.1
Install Your Toolchain
- 2.2
Jump Start Your Design with the MCUXpresso SDK
- 2.3
MCUXpresso Config Tools
- 2.4
Programming and Provisioning Tools
- 3.1
Build and Flash Application using MCUXpresso IDE
- 3.2
Build and Flash Application with Alternative Toolchains
- 4.1
Clone an Example Project from MCUXpresso IDE
- 4.2
Clone an Example Project using MCUXpresso Config Tool for 3rd Party IDE
- 4.3
Use MCUXpresso IDE Pins Tools
- 4.4
Use the Pins Tools to Modify the LED Routed Pin
