Integrated ColdFire® V3 Microprocessor

MCF530X
生産終了 (EOL)

The MCF5307 is a high-performance (70 MIPS), cost-effective, highly integrated microprocessor designed for embedded control applications. The MCF5307 combines a ColdFire® V3; processor core with a multiply-accumulate (MAC) module, DRAM controller, direct memory access (DMA) controller, timers and parallel and serial interfaces. The time required for system design and implementation is greatly reduced by packaging common system functions on-chip and providing glueless interfaces to 8- 16- and 32-bit DRAM, SRAM, ROM and I/O devices.

ブロック図

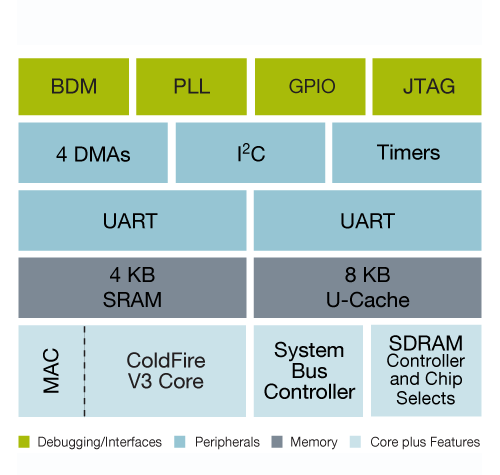

ColdFire MCF530X Microprocessor Block Diagram

ColdFire MCF530X Microprocessor Block Diagram
図を取得する PDF

Features

  • ColdFire® V3 core delivering up to 75 (Dhrystone 2.1) MIPS @ 90 MHz
  • 4 KB SRAM
  • 8 KB unified cache
  • Integer/fractional MAC unit
  • Divide unit
  • System debug interface
  • DRAM controller
  • Dual 16-bit general-purpose multimode timers
  • System debug support
  • Package 208-pin plastic QFP
  • Integrated peripherals
    • Four-channel DMA controller
    • Two universal asynchronous receiver/transmitters (UARTS)
    • I²C-compatible bus
    • System interface module
    • 16-bit general-purpose parallel I/O port
