Coldfire V3 Microprocessor with Ethernet, USB and Encryption

MCF537X 新規採用非推奨
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The MCF537x family of microprocessors offers a single-chip solution to address the growing need for flexible communication within industrial control systems. The MCF537x family benefits from a wide range of hardware and software development tools from NXP® and leading third-party developers.

ブロック図

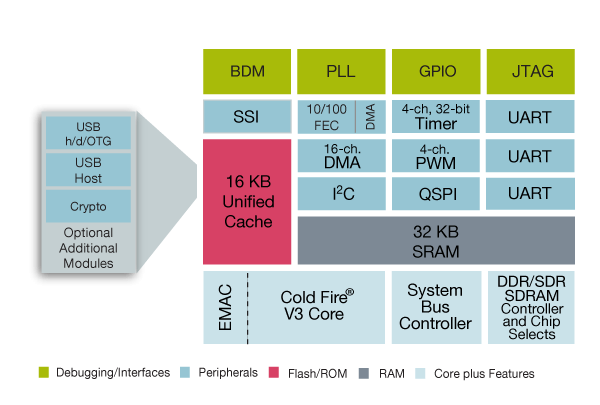

ColdFire MCF537X Microprocessor Block Diagram

ColdFire MCF537X Microprocessor Block Diagram
図を取得する PDF

Features

  • ColdFire® V3 core-delivering up to 211 (Dhrystone 2.1) MIPS @ 240 MHz
  • Enhanced multiply-accumulate (MAC) module and hardware divide
  • 16 KB I/D-cache
  • 32 KB SRAM
  • Integrated peripherals
    • USB 2.0 full-speed host controller
    • USB 2.0 full-speed on-the-go controller
    • 10/100 fast Ethernet controller (FEC)
    • Three universal asynchronous receiver/transmitters (UARTS)
    • Queued serial peripheral interface (QSPI)
    • Synchronous serial interface (SSI)
    • I²C bus interface
    • 16-channel direct memory access (DMA) controller
    • 16-bit DDR/32-bit SDR SDRAM controller
  • Security
    • Hardware-accelerated encryption (MCF5373L and MCF5373 only)
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
