Ultra-Reliable MPC5674F MCU for Automotive and Industrial Engine Management

MPC5674F アクティブ
NXP<sup>®</sup> product built on Power Architecture technology

The MPC5674F

Power Architecture® MCU helps automakers offer more fuel-efficient automobiles and meet stricter government-mandated emissions standards by enabling precise control of engine events without sacrificing performance.

  • Addresses the growing computational demands of green engine designs
  • Designed to reduce time to market at lower costs and with higher reliability
  • Precisely controls fuel delivery and improves gas mileage
  • Performs knock detection without additional external components
  • Condenses code footprint by up to 30% for improved density and reduced memory requirements

ブロック図

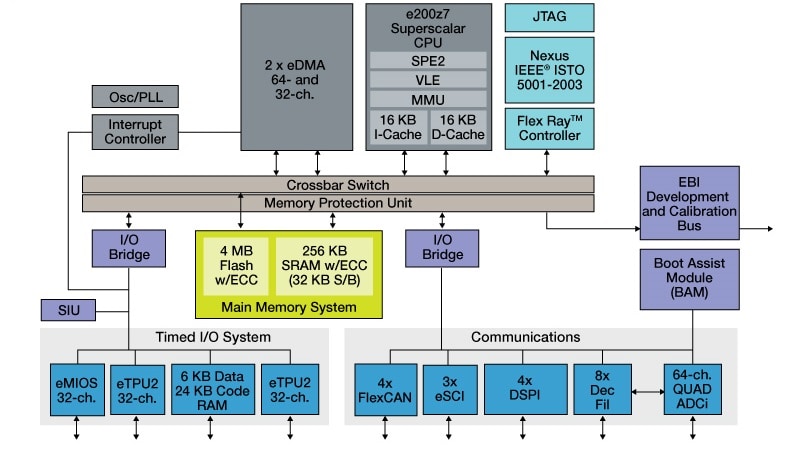

MPC5674F Microcontroller Block Diagram

MPC5674F Microcontroller Block Diagram

Features

  • Power Architecture® 200z7 core at 264 MHz
    • SIMD module for DSP and floating point operations
    • Variable length encoding (VLE)
  • 4 MB flash memory with error correcting codes (ECC)
  • 256 KB data RAM with ECC
  • 64-channel dual eTPU2 with 30K SRAM
  • 64-channel quad analog-to-digital converter (ADC)
  • Dual-channel FlexRayTM controller
  • On-chip regulator for standby voltage
  • This product is included in NXP product longevity program, with assured supply for a minimum of 15 years after launch
