Ultra-Reliable MPC5676R MCU for Automotive and Industrial Engine Management

MPC5676R 生産終了 (EOL)

The NXP MPC5676R MCU offers significant performance and enhanced powertrain functionality for extreme regulatory and environmental needs.

  • Allows users to enable virtual sensors and eliminate many external ICs
  • Reduces code footprint by up to 30% for improved density and reduced memory requirements
  • Meets next-generation RAM requirements
  • Improves gas mileage with complex timers that precisely control fuel and air delivery
  • Supports autocode generation and modeling tools that reduce development churn
  • Offers a seamless migration by allowing design re-use to reduce overall design cost and speed time-to-market

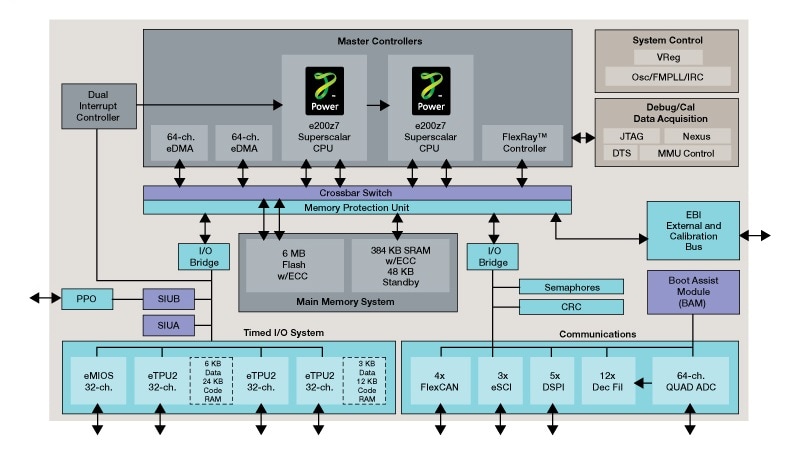

ブロック図

MPC5676R_BD Block Diagram

MPC5676R_BD Block Diagram
図を取得する PDF

Features

General

  • 6 MB Flash memory w/ECC
  • 461K Total SRAM (384k system SRAM w/ECC)
  • 96 channel triple eTPU2 w/45K SRAM
  • 128 channel dual eDMA
  • 64 channel 12-bit quad analog-to-digital converter (ADC)
  • 12 decimation filters with hardware knock integrators
  • Dual-channel FlexRay communication controller
  • 4 channel FlexCAN
  • 5 channel DSPI
  • External Bus Interface (EBI) output capability for expanded memory (516BGA only)
  • On-chip regulator for standby voltage

Dual Power Architecture® 200z7 cores

  • 2 x 180MHz
  • SPE1.1 / SIMD module for DSP and floating point operations
  • Variable length encoding (VLE)
  • 32 entry MMU
