Ultra-Reliable MPC564xB-C MCU for Automotive and Industrial Control Applications

MPC564xB-C アクティブ

The MPC564xB-C family of MCUs offers a superior level of integration to address the growing need for enhanced feature sets and increased memory space in high-end automotive body control module (BCM), gateway and industrial applications.

  • Reduces power consumption through low-power standby/wait modes
  • Provides secure and trusted transmission of information between parties

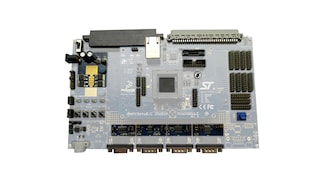

  • Supports quick design implementation through an enablement ecosystem that includes software drivers, operating systems, and configuration code

ブロック図

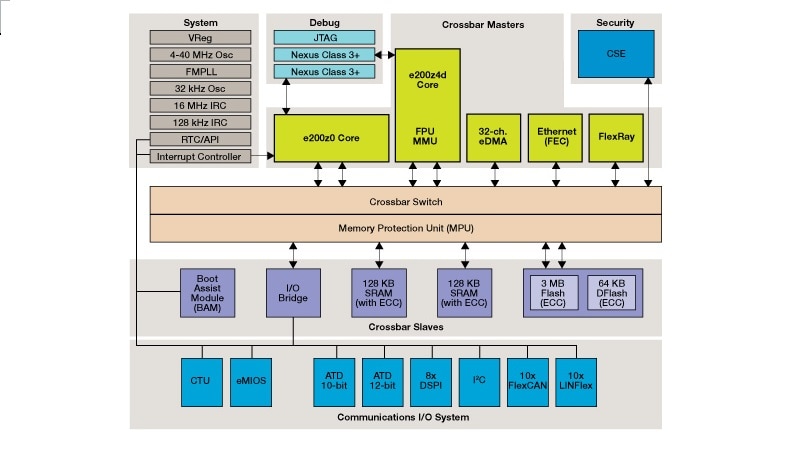

MPC564xB-C Microcontroller Block Diagram

MPC564xB-C Microcontroller Block Diagram
図を取得する PDF

Features

  • High-performance dual-core options
    • e200z4 up to 120 MHz
    • e200z0 up to 80 MHz
  • Flash: Up to 3 MB
  • EEPROM: 64 KB DataFlash®
  • RAM: Up to 256 KB
  • CSE: Security module for transmission of information in a secure and trusted manner between parties
  • Timer: 16 bits—up to 64 channels
  • ADC: 10- and 12-bit
  • Ethernet
  • FlexRayTM
  • 10 LINFlex
  • Eight DSPI
  • Six FlexCAN
  • Scalability and compatibility with the MPC560xB/C family of products
