8-bit 5V Cost-effective MCU with EEPROM

S08PL
アクティブ

画像にカーソルを合わせると拡大表示されます。

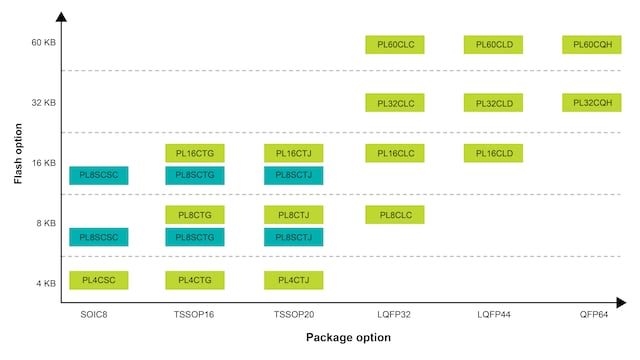

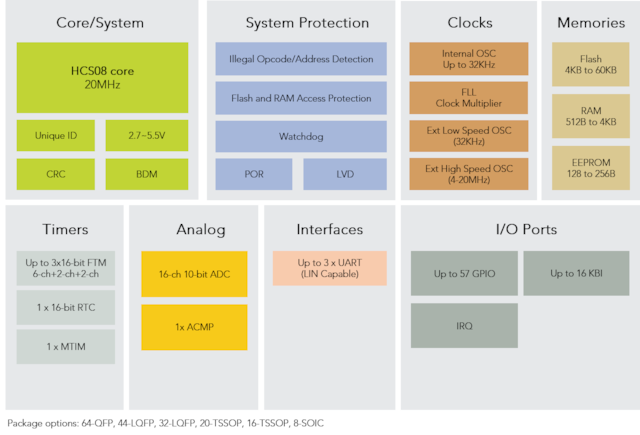

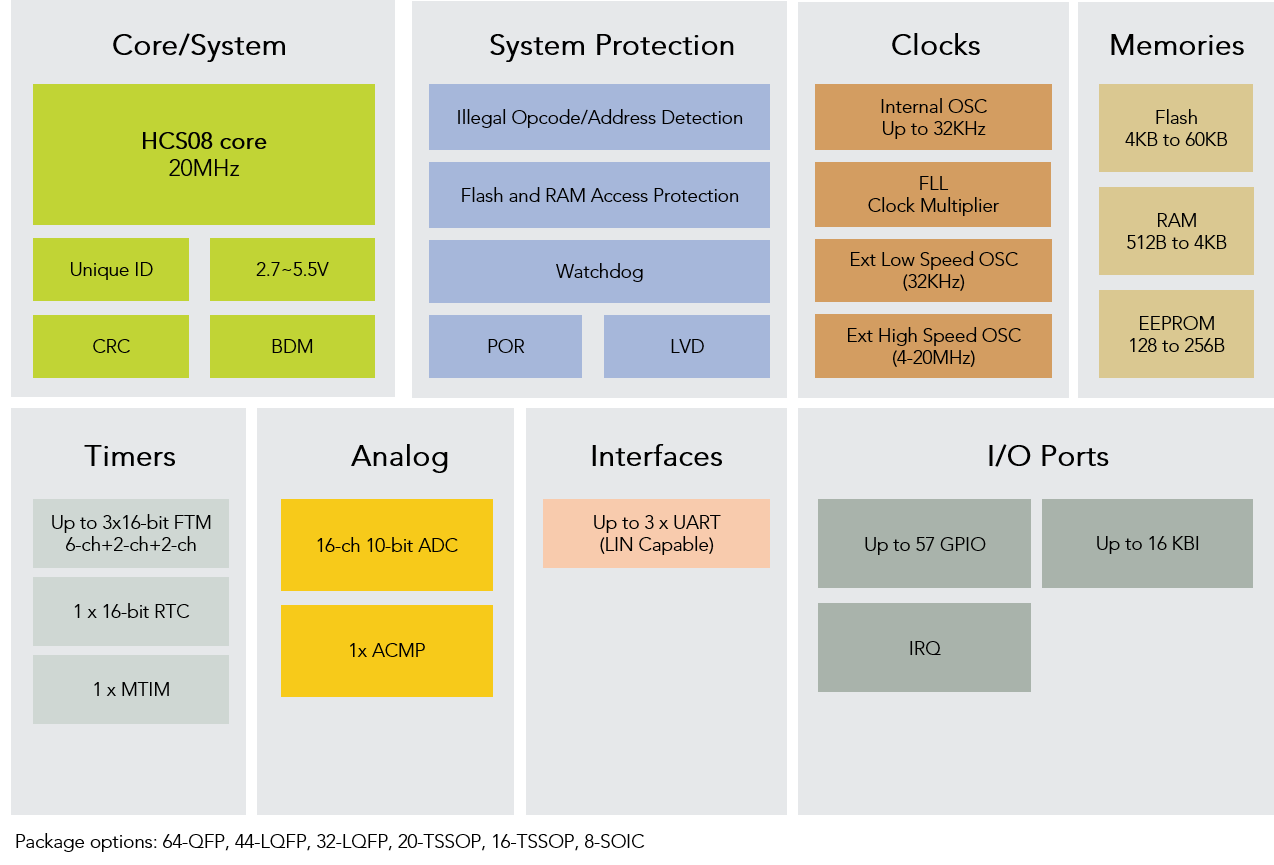

The S08PL MCUs integrate key features like EEPROM, 10-bit ADC, Analog comparator, and flexible timers to simplify design and to help reduce system cost.

The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

Features

Memory Combination

  • Increased flash/RAM ratio (4 KB RAM in PT60)
  • On-chip EEPROM with 500K~1M write/erase cycle

Robust GPIO

  • Up to 57 GPIO with filtering in 64-pin
  • Two pins with true open drain

16-ch., 10-bit SAR ADC

  • Linear successive approximation algorithm with up to 10-bit resolution
  • Up to 16-ch. single-ended external analog inputs
  • 10-bit, and 8-bit modes, eight-deep result FIFO
  • Single or continuous conversion (automatic return to idle after single conversion)

Feature-Rich Integration

  • 6-ch. + 2-ch. + 2-ch. FlexTimer: 1 x MTIM
  • Real-time counter
  • 3 x SCI
  • Enhanced watchdog and programmable CRC
  • High accuracy internal clock
