8-bit 5V Full-featured MCU with EEPROM and TSI

S08PT
アクティブ

画像にカーソルを合わせると拡大表示されます。

The S08PT MCUs integrate key features like touch sensing interface (TSI), EEPROM, and a motor control flex timer to simplify design and to help reduce system cost. The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

ブロック図

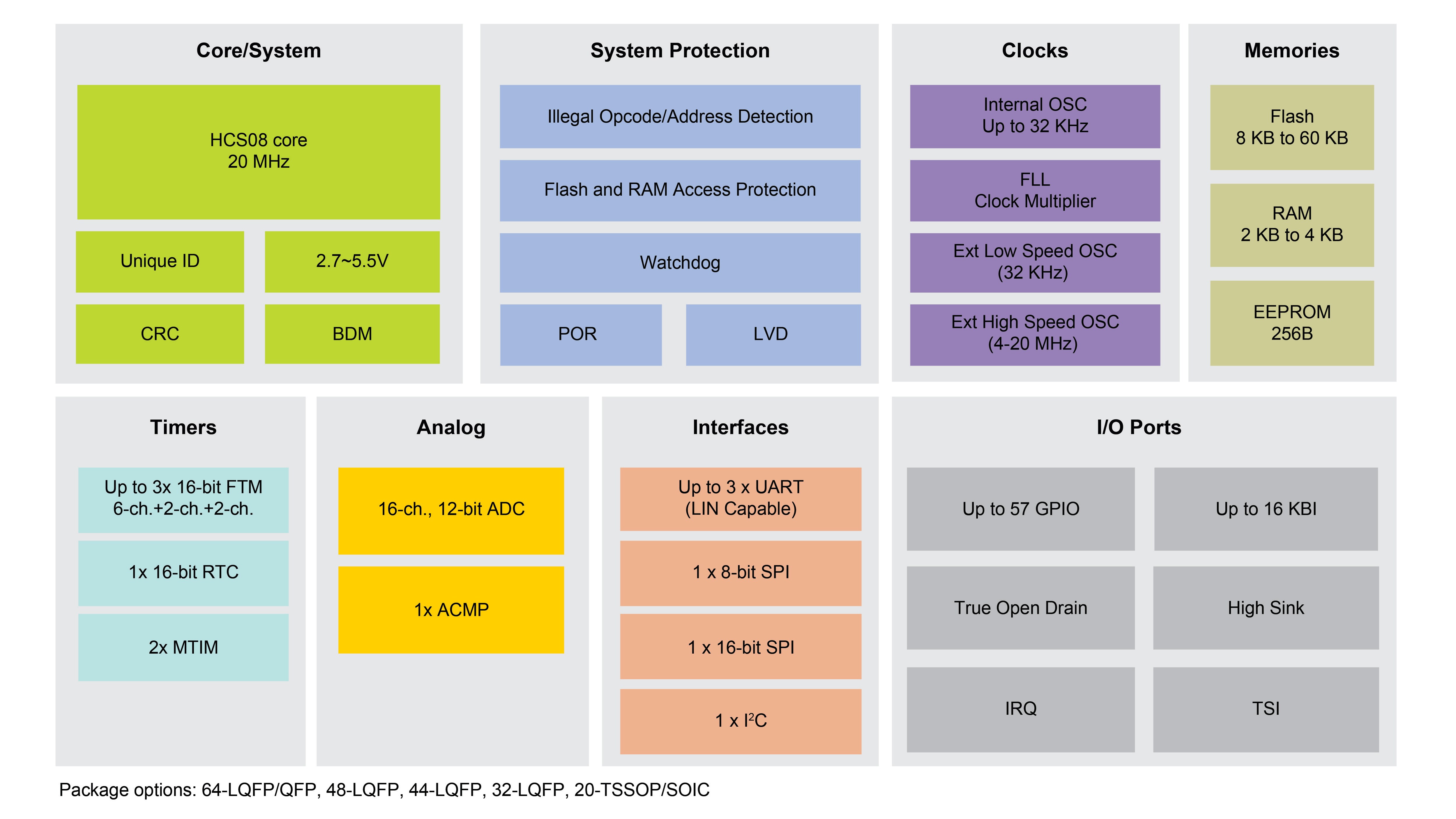

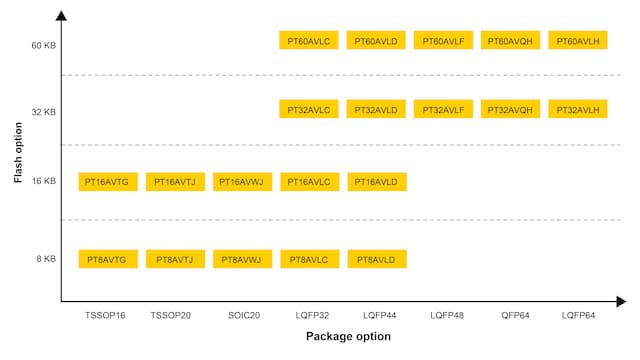

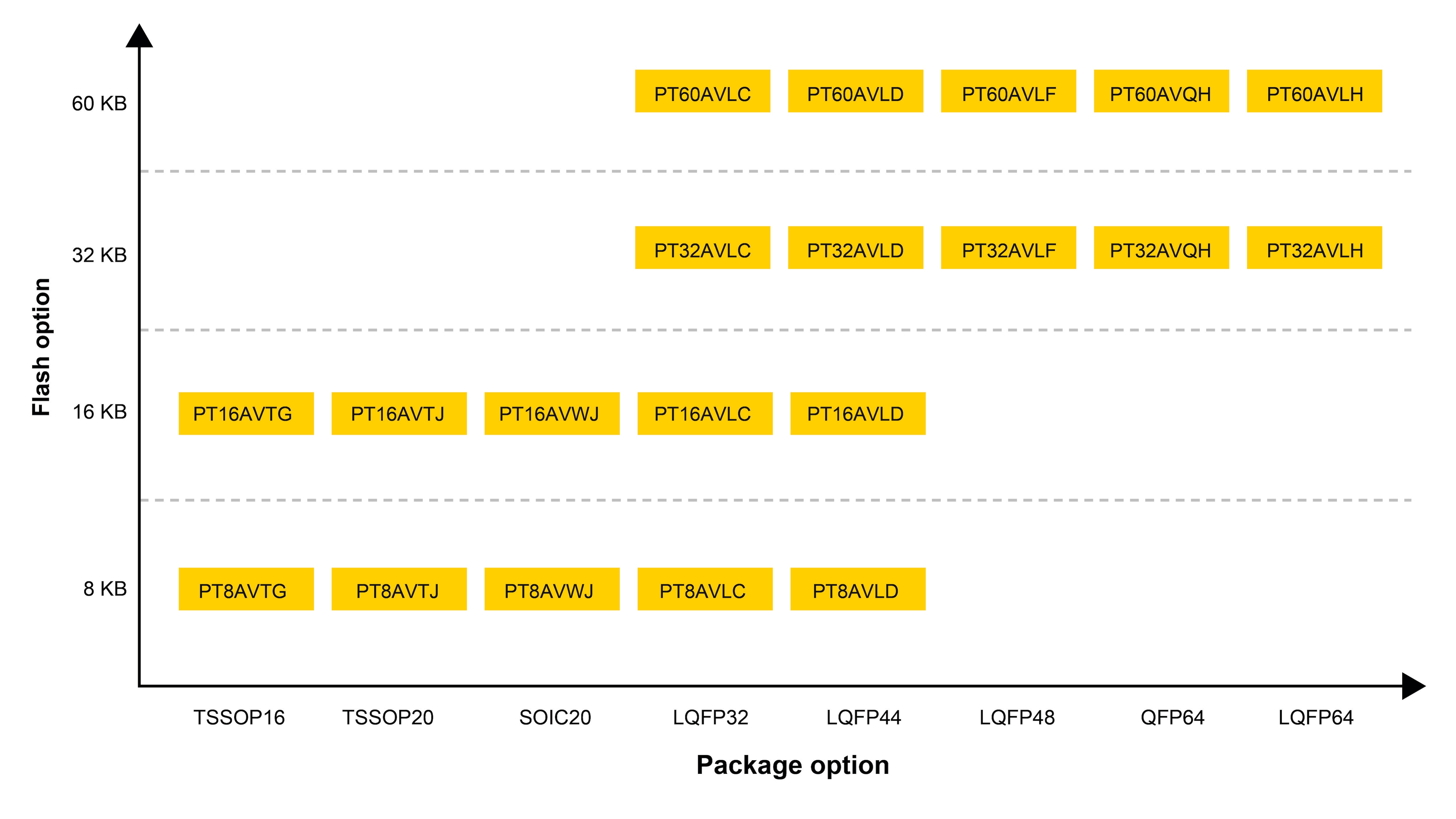

MC9S08PT Series Block Diagram

MC9S08PT Series Block Diagram
図を取得する PDF

Features

Memory Combination

  • Increased flash/RAM ratio (4 KB RAM in PT60)
  • On-chip EEPROM with 500K~1M write/erase cycle

Robust GPIO and High Drive Capability

  • Up to 57 GPIO with filtering in 64-pin
  • Up to eight pins with 20 mA sink drive capability
  • Two pins with true open drain

16-ch. Touch-Sensing Interface

  • Dedicated hardware module to sense touch input, minimum software intervention
  • Functional in all power modes (run, wait and low-powerstop), wake up capable from the stop
  • Designed for operation in harsh environments with high sensitivity
  • Enhanced watchdog and programmable CRC
  • Highly configurable through hardware and software

Feature-Rich Integration

  • 6-ch. + 2-ch. + 2-ch. FlexTimer: 2 x MTIM
  • Real-time counter
  • 3 x SCI, 2 x SPI, I2C
  • Enhanced watchdog and programmable CRC
  • High accuracy internal clock

購入/パラメータ

1-10 の 20 結果

マッチしていない 20 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

Flash (kB)

RAM (kB)

コア・タイプ

動作周波数[最大](MHz)

Bus Frequency (typ) (MHz)

I2C

電源電圧 [最小] (V)

電源電圧 [最大] (V)

汎用I/O

Ambient Operating Temperature (Min to Max) (℃)

ヒューマン・マシン・インタフェース

SCI

MC9S08PT16AVLC
データ・シート

アクティブ

LQFP32

32

10K @ US$1.18

16

2

S08

20

20

1

2.7

5.5

28

-40 to 105

touch system interface

2

MC9S08PT16AVLD
データ・シート

アクティブ

LQFP44

44

10K @ US$1.18

16

2

S08

20

20

1

2.7

5.5

37

-40 to 105

touch system interface

2

MC9S08PT16AVTG
データ・シート

アクティブ

TSSOP16

16

10K @ US$1.01

16

2

S08

20

20

1

2.7

5.5

14

-40 to 105

touch system interface

1

MC9S08PT16AVTJ
データ・シート

アクティブ

TSSOP20

20

10K @ US$1.09

16

2

S08

20

20

1

2.7

5.5

18

-40 to 105

touch system interface

1

MC9S08PT16AVWJ
データ・シート

アクティブ

SO20

20

10K @ US$1.07

16

2

S08

20

20

1

2.7

5.5

18

-40 to 105

touch system interface

1

MC9S08PT32AVLC
データ・シート

アクティブ

LQFP32

32

10K @ US$1.26

32

4

S08

20

20

1

2.7

5.5

28

-40 to 105

touch system interface

2

MC9S08PT32AVLD
データ・シート

アクティブ

LQFP44

44

10K @ US$1.34

32

4

S08

20

20

1

2.7

5.5

37

-40 to 105

touch system interface

3

MC9S08PT32AVLF
データ・シート

アクティブ

LQFP48

48

10K @ US$1.40

32

4

S08

20

20

1

2.7

5.5

41

-40 to 105

touch system interface

3

MC9S08PT32AVLH
データ・シート

アクティブ

LQFP64

64

10K @ US$1.60

32

4

S08

20

20

1

2.7

5.5

57

-40 to 105

touch system interface

3

MC9S08PT32AVQH
データ・シート

アクティブ

QFP64

64

10K @ US$1.71

32

4

S08

20

20

1

2.7

5.5

57

-40 to 105

touch system interface

3
