8-bit Motor Control SF MCUs

S08SF アクティブ

画像にカーソルを合わせると拡大表示されます。

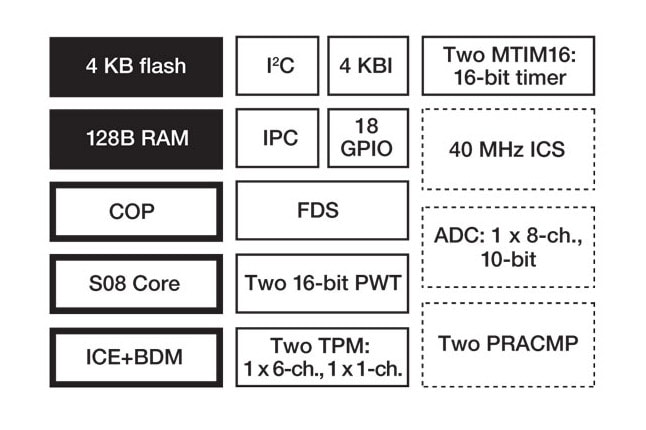

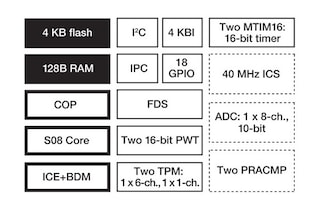

The powerful 8-bit MC9S08SF4 MCU family is optimized to provide precise, quiet and safe control for simple motor control applications. An integrated, advanced set of features, including six timers and up to 18 general purpose input/output (GPIO) pins, provide highly accurate control and helps simplify overall system design. Enhanced protection circuit design and a wide operating temperature range (-40 °C to +125 °C) help systems run safely and reliably under variable conditions.

Features

8-bit HCS08 Central Processor Unit (CPU)

  • Up to 40 MHz HCS08 core frequency with 2.7V to 5.5V operation across temperature range of -40 °C to +125 °C

On-Chip Memory

  • 4K flash read/program/erase across entire operating voltage and temperature ranges
  • 128 bytes random access memory (RAM)
  • Security circuitry

Power-Saving Modes

  • Two low-power stop modes, reduced-power wait mode

Clock Source Options

  • Internal clock source (ICS) module

Peripherals

  • Interrupt priority controller (IPC)
  • Analog-to-digital converter (ADC)
    • Up to 8-channel
    • 10-bit resolution
    • 2.5 µs conversion time
  • Timer/pulse-width modulator module (TPM)
    • One 40 MHz 6-ch
    • One 40 MHz 1-ch
  • MTIM16—Two 16-bit modulo timers
  • Pulse width timers (PWT)
    • Two 16-bit PWT
    • selectable driving clock
    • positive/negative/period capture
  • Two 5-bit programmable reference analog comparators (PRACMP) with eight optional inputs for both positive and negative inputs
  • I²C module capable of operation up to 100 kbps operation with maximum bus loading
  • Fault detection shut down (FDS)
    • Shut down output pin upon fault detection

Input/Output

  • Up to 18 GPIO pins including one input-only pin and one output-only pin
  • KBI—4-pin keyboard interrupt module

System Protection

  • Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
  • Low-voltage detection with reset or interrupt, selectable trip points
  • Illegal opcode detection with reset
  • Illegal address detection with reset
  • Flash block protection

Development Support

  • Single-wire background debug interface
  • Breakpoint setting capability
  • On-chip in-circuit emulator (ICE) debug module
    • Two comparators
    • Nine trigger points

もっと見る
