Multimedia Applications Processors - Arm® Cortex®-A8 Core

i.MX534
生産終了 (EOL)

The i.MX534 applications processor offers advanced performance, connectivity and graphical user interface functionality necessary to drive next generation automotive instrument cluster and navigation systems. The i.MX534 processor is ideal for applications that require high performance user interfaces with 2D and 3D graphics, single or dual high resolution displays, and a high level of system integration. Building on the success of the i.MX535 in the consumer market, the automotive family of i.MX53 processors will bring advanced consumer electronics user experiences and device connectivity into the vehicles of the future. Currently sampling to high volume customers.

The i.MX534 is supported by a companion NXP® power management IC (PMIC), MC34709.

ブロック図

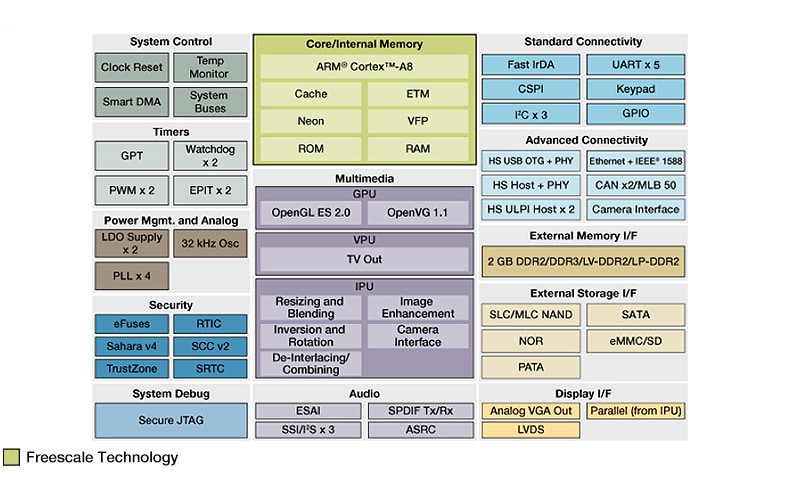

i.MX534 Multimedia Applications Processor Block Diagram

i.MX534 Multimedia Applications Processor Block Diagram
図を取得する PDF

Features

CPU Complex

  • 800 MHz Arm® Cortex®-A8 CPU with AEC-Q100 qualification
  • 32 KB instruction and data caches
  • Unified 256 KB L2 cache
  • NEON SIMD media accelerator
  • Vector floating point coprocessor

Multimedia

  • Independent OpenGL® ES 2.0 and OpenVG™ 1.1 hardware accelerators
  • Dual display capable with multiple display options including TFT LCD, LVDS, analog TV-formats (composite, component, RGB) and standard VGA
  • Hardware accelerated image post-processing, display quality enhancement, and video and graphics combining
  • Two simultaneous camera inputs with hardware pre-processing

External Memory Interface

  • Up to 2 GB LP-DDR2, LV-DDR2, DDR2-800, and DDR3-800 SDRAM, 16/32-bit
  • Managed NAND Flash Support with eMMC 4.4/SDIO
  • Raw NAND with up to 16-bit ECC

Advanced Power Management

  • Multiple independent power domains
  • Dynamic voltage and frequency scaling

Connectivity

  • High-Speed USB 2.0 OTG with PHY
  • High-Speed USB 2.0 Host with PHY
  • Two additional High-Speed USB 2.0 controllers (ULPI)
  • Integrated LVDS display interface supporting up to 2 channels each with 4 data pairs and 1 clock pair
  • Wide array of serial interfaces, including SDIO, SPI, I2C and UART
  • I2S and S/PDIF audio interfaces
  • 10/100 Ethernet controller
  • SATA controller and PHY up to 1.5Gbps
  • Dual CAN interfaces
  • MLB50 interface for MOST connectivity
  • Enhanced Serial Audio Interface (ESAI) to support multichannel audio
  • Hardware Asynchronous Sample Rate Converter (ASRC) for conversion of multiple audio I/O to common sample rates

Security

  • Advanced security supporting High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection

Package

  • 19mm x 19mm 529-ball TE-BGA
  • 0.8mm pitch

Product Longevity
